Amico 9311402 Gauge

Amico 9311402 Gauge

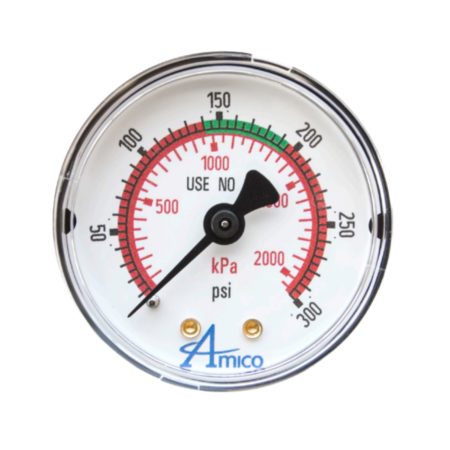

The gauge is an Amico Alert-1 series.

The gauge is equipped with dual scale psi and kPa for pressure, and Hg and kPa for Vacuum.

Amico products comply with NFPA 99 and CSA Z7396.1.

• Size: 2″
• Accuracy: +/- 1.5% of full scale ASME B40.1 Grade B
• Range: 0 – 30″ Vac [-100 – 0 kPa] 0 – 100 psi [0 -700 kPa] 0 – 300 psi [0-2000 kPa]
• Temperature: Ambient: -13 °F to 140 °F, Media: Max. 140 °F
• Connection: 1/8″ Male NPT Center Back
• Bourdon Tube: Copper alloy
• Movement: Copper alloy
• Dial: White plastic with stop pin
• Pointer: Black aluminum
• Case: Black steel
• Window: Snap-in acrylic
• Cleaned for oxygen service
• 0-30″HG
• FOR VACUUM ISOLATION VALVE
