Amico FMA-15U-F2 NPT Medical Air Flowmeter

SKU: 12133


In stock (can be backordered)

Build Your Custom Hose

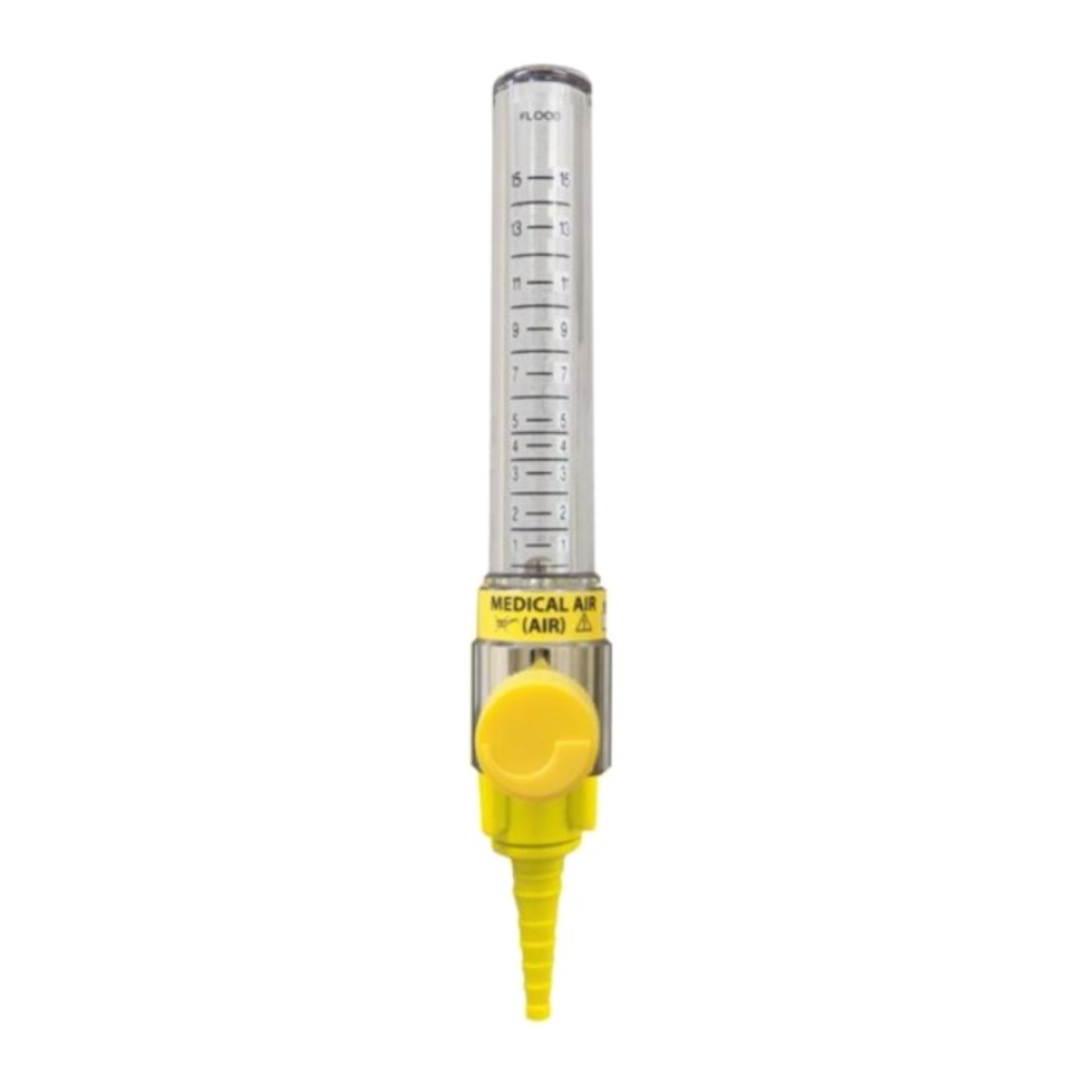

Amico FMA-15U-F2 NPT Medical Air Flowmeter

This compact flow-meter from Amico has a poly-carbonate housing that extends over the lightweight aluminum body providing superior durability. The housing is impervious to chemical solutions normally used in a clinical setting. The state of the art housing incorporates a white background that makes the flow settings easier to read. The contemporary design results in a smaller unit that fits more easily into space-cramped wall rails.

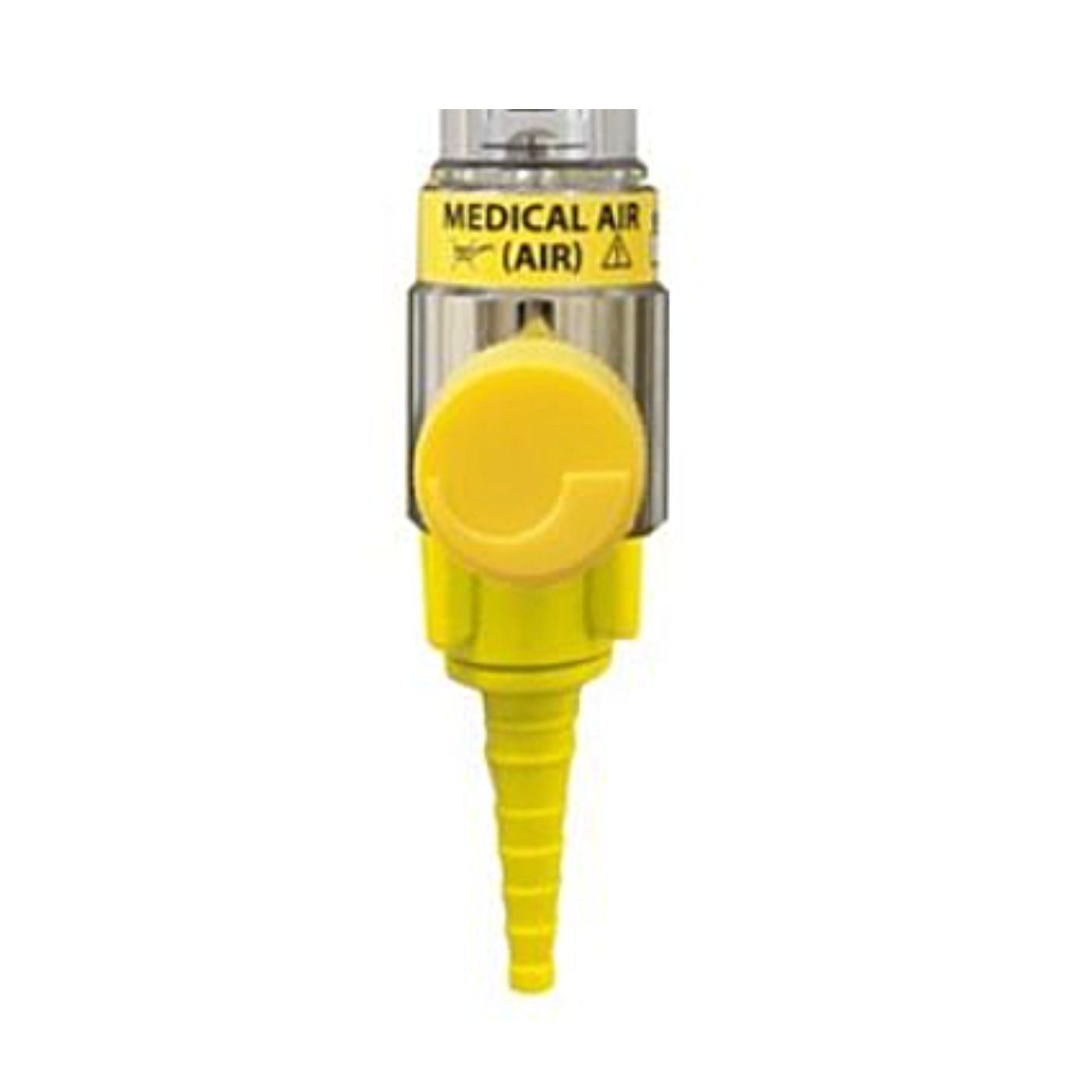

Unlike side mounted knobs which are susceptible to damage, the flow control knobs are on the front of the flowmeter in clear sight of the operator. The flow-meters use black glass flow indicator balls. The properties of black glass, superior sphericity and exceptionally uniform density, insure that the flowmeter is more accurate than flow-meters utilizing plastic floats. Variety of options available.


  • Complete line of Flowmeters from Neonatal to Adult
  • Standard 1/8″ FNPT connection, but also customizable with different adapters and accessories
  • MRI options are available
  • Available in USA and ISO colors
  • Smallest and lightest chromed, brass bodied Flowmeter in the industry
  • Color coded inner tube and labeling
  • Easy to service
  • No strip “D” shape knob
  • Includes an inlet filter and inlet extension
  • 5 year warranty North America (3 year International)

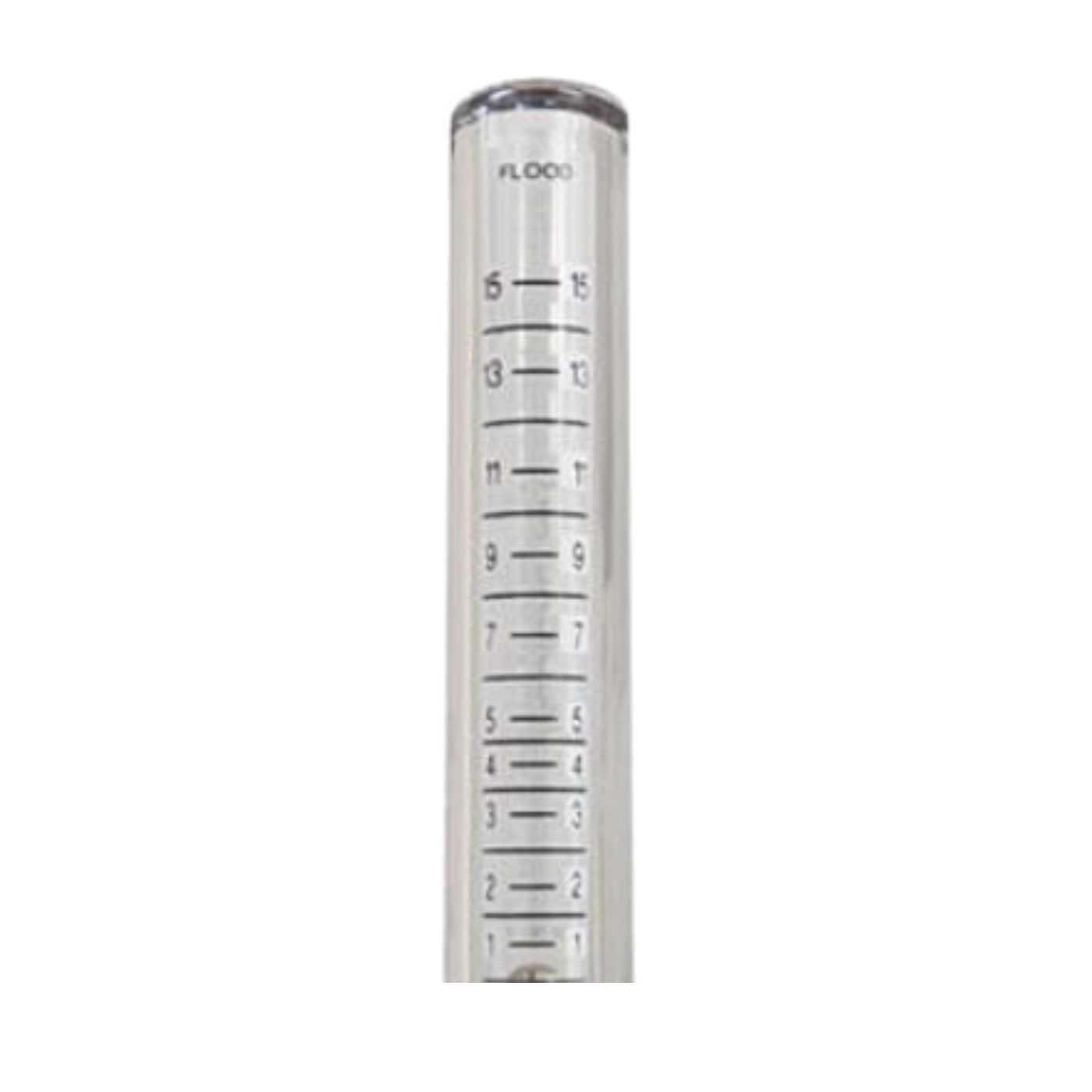

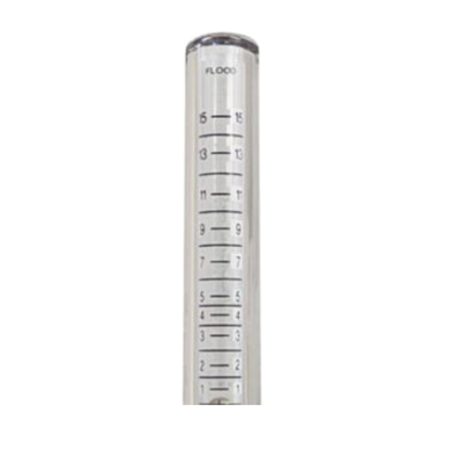

  • Scale: 0-15 LPM
  • Increments:0.5 LPM from 0.5 to 5 LPM1 LPM from 5 to 15 LPM
  • Accuracy:±0.25 LPM from 0.5 to 5 LPM±0.5 LPM above 6 to 15 LPM
  • Flush Flow: 40-60 LPM
  • 1/8 inch NPT Female
  • Amico Flowmeters Manual

Additional information

Weight 1 lbs
Dimensions 10 × 8 × 6 in
