Bovie A3350 OR PRO Electro Surgical Generator

SKU: 08029

$6,617.75

Available on backorder

Build Your Custom Hose

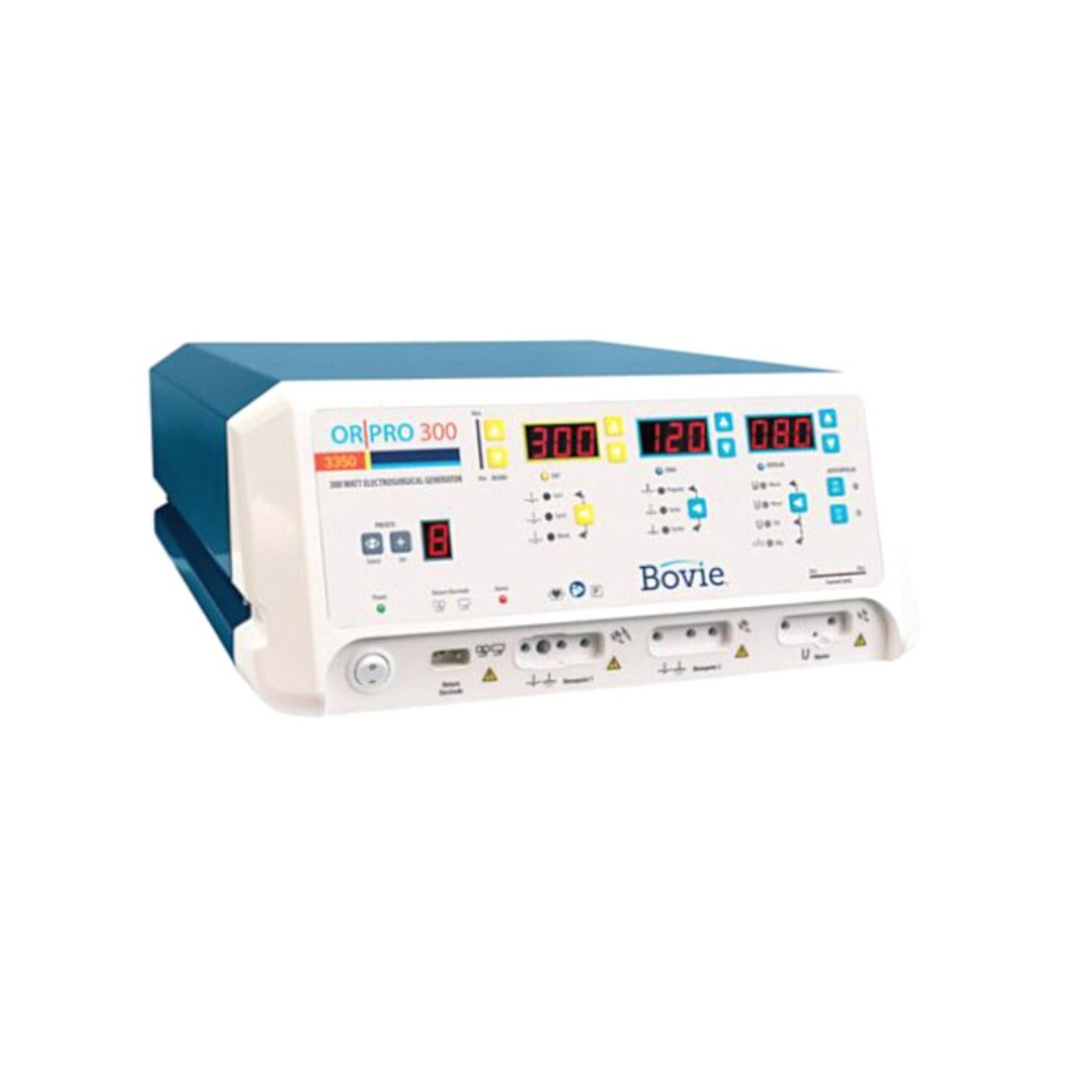

Bovie A3350 OR PRO Electro Surgical Generator

Bovie introduces the OR|PRO 300 Electrosurgical Generator. The system was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery.

Special modalities include the advanced Bovie Bipolar, Auto Bipolar options and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences.

TECHNICAL SPECS

MONOPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Cut I 300 1000V 1.7 20% 490 kHz  4.9 kHz
Cut II  300 750V 1.7  20% 490 kHz  4.9 kHz
Blend (1) 200 1320V 1.8  20% 490 kHz  4.9 kHz
Blend (2) 200 1475V 2.0  20% 490 kHz  4.9 kHz
Blend (3) 200 1650V 2.2  20% 490 kHz  4.9 kHz
Blend (4) 200 1870V 2.4  20% 490 kHz  4.9 kHz
Pinpoint Coagulation 120 1800V 3.1  20% 490 kHz  4.9 kHz
Spray Coagulation 120 4000V 6.0  20% 350 to 450 kHz
Gentle Coagulation 120 450V 1.6  20% 490 kHz  4.9 kHz
BIPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Macro Bipolar 150 600V 1.5  20% 490 kHz  4.9 kHz
Micro Bipolar 80 450V 1.5  20% 490 kHz  4.9 kHz
Standard Bipolar 50 300V 1.5  20% 490 kHz  4.9 kHz
Bovie Bipolar 225 250V 1.5  20% 490 kHz  4.9 kHz
Auto Bipolar 80 490 kHz  4.9 kHz

Audible/Visible Output Meter:
Yes

Contact Monitoring Systems:
BovieNEM™

Contact Monitoring Systems
Range/Trip Point:

10 ohms or less over entire
operating range (10C° to 40°C)

Cooling System:
Passive Cooling

Technology:
Isolated RF Output

Pre-set Feature:
Yes

Current Meter:
Yes

Monopolar HP Ports:
2

Dual Activation Tone Alert:
Yes

Connector Ports/Power Switch:
White

Weight:
<9.07 kg (<20 lbs)

Dimensions:
W – 37.5 cm (14.75 in)
H – 16.5 cm (6.5 in)
D – 46 cm (18.1 in)

Warranty:
4 years, Additional Warranty Available



Click Here for OR PRO Brochure

Click Here for OR PRO User Guide



*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A&C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to [email protected]



Additional information

Manufacturer

Bovie

Manufacturer Part Number

A3350

Condition

New
