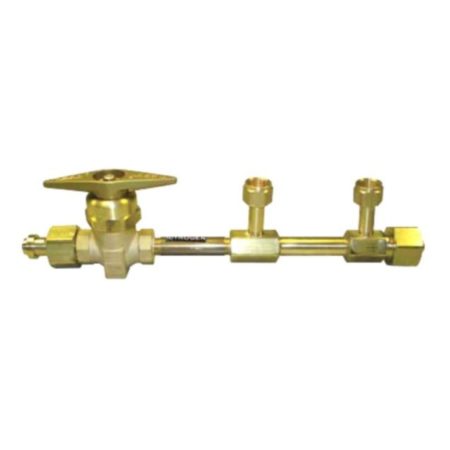

Superior Products GMA2-MHE-540CV 2 Port Modular Simplex Headers

SKU: 08329

  • Maximum inlet pressure: 3000 PSIG
  • Manifold outlet: 1-11.5 NPS-RH or 1-11.5 NPS-LH
  • 1/2” brazed pipe & tees for maximum leak protection

$349.99

Available on backorder

Build Your Custom Hose

SUPERIOR PRODUCTS GMA2-MHE-540CV 2 PORT MODULAR SIMPLEX HEADERS

The Superior Simplex Manifold system is designed to provide a single source of supply from one cylinder bank. This manifold is typically used as a high pressure back-up system for liquid or bulk tank systems in both industrial and medical applications.

The simplex manifold has a master shut-off valve with a single row of cylinders. Each header consists of 1/2” pipe, 1/2” tees or crosses, header valves or inlet adaptors with check valves, master shut-off valve, end plug and mounting brackets. The end has a plug that allows for future expansion. The outlet regulator is ordered separately based on the required delivery pressure.

  • Maximum inlet pressure: 3000 PSIG
  • Manifold outlet: 1-11.5 NPS-RH or 1-11.5 NPS-LH
  • 1/2” brazed pipe & tees for maximum leak protection

Additional information

Weight 7 lbs
Dimensions 12 × 12 × 4 in
Manufacturer

LLC., Superior Products

Manufacturer Part Number

GMA2-MHE-540CV

Condition

New
