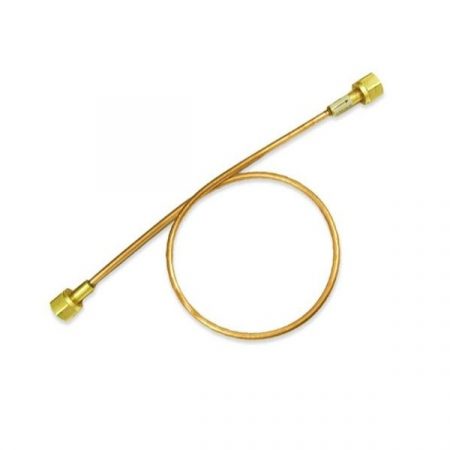

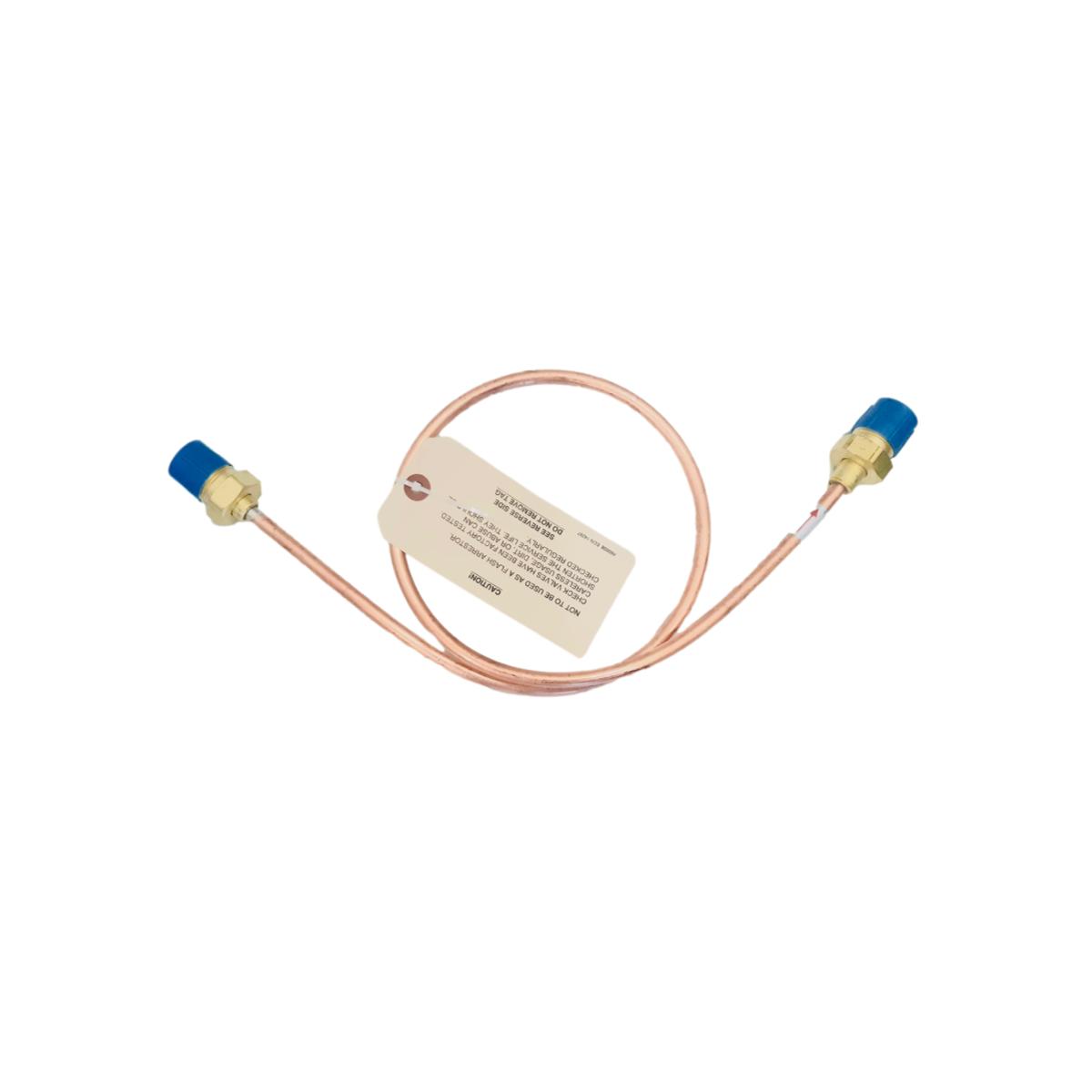

Amico M-X-HB-PTC-NIT Copper Pigtail CGA 580 Nitrogen with CV 36″

Amico M-X-HB-PTC-NIT Pigtail Copper 36 Inch Nitrogen with Check Valve CGA 580

Features:

• Copper Pigtail

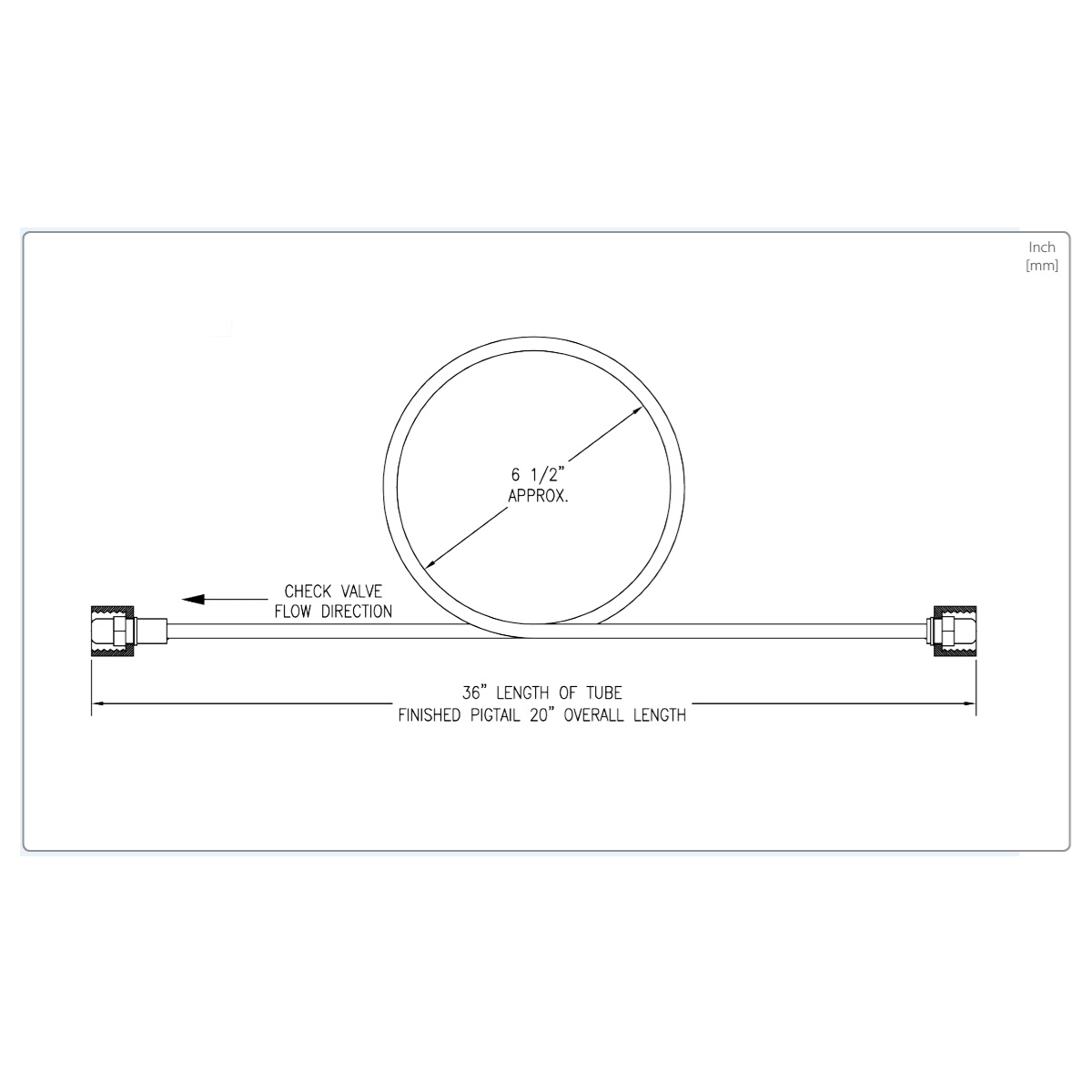

• Length: 36 Inches
• Check Valve on one end before CGA connection
• Inlet Connection: CGA 580
• Outlet Connection
• Cleaned for Medical Gas Service
• Amico copper pigtails shall have a 5/16″ x 0.065″ wall thickness, copper tube
• Amico copper pigtails shall come with a check valve equipped to one of the ends
• Note: Burst pressure ratings for pigtails are determined at room temperature with the hose in a straight line
• A safety factor of 4:1 or 5:1 should be used for normal applications. Impulse and shock pressure applications may require a higher safety factor
• Note: Do not apply heat to pigtails
• All cylinder connections machined to CGA specifications for applicable gases

HIGH PRESSURE PIGTAIL SPEC SHEET
