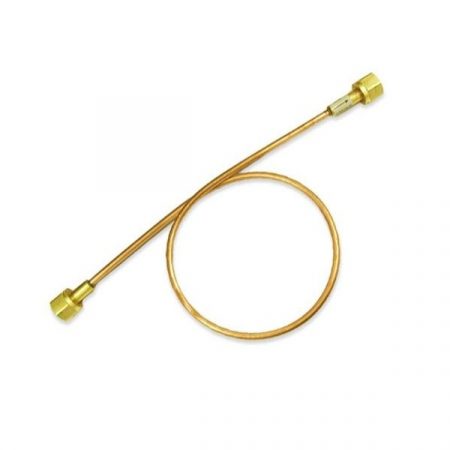

Amico M-X-HB-PTC-OXY Copper Pigtail CGA 540 Oxygen with CV 36″

Amico M-X-HB-PTC-OXY Copper Pigtail CGA 540 Oxygen with CV 36″

The Amico copper pigtails shall have a 5/16″ x 0.065″ wall thickness, copper tube. The Amico copper pigtails shall come with a check valve equipped to one of the ends.

Features:

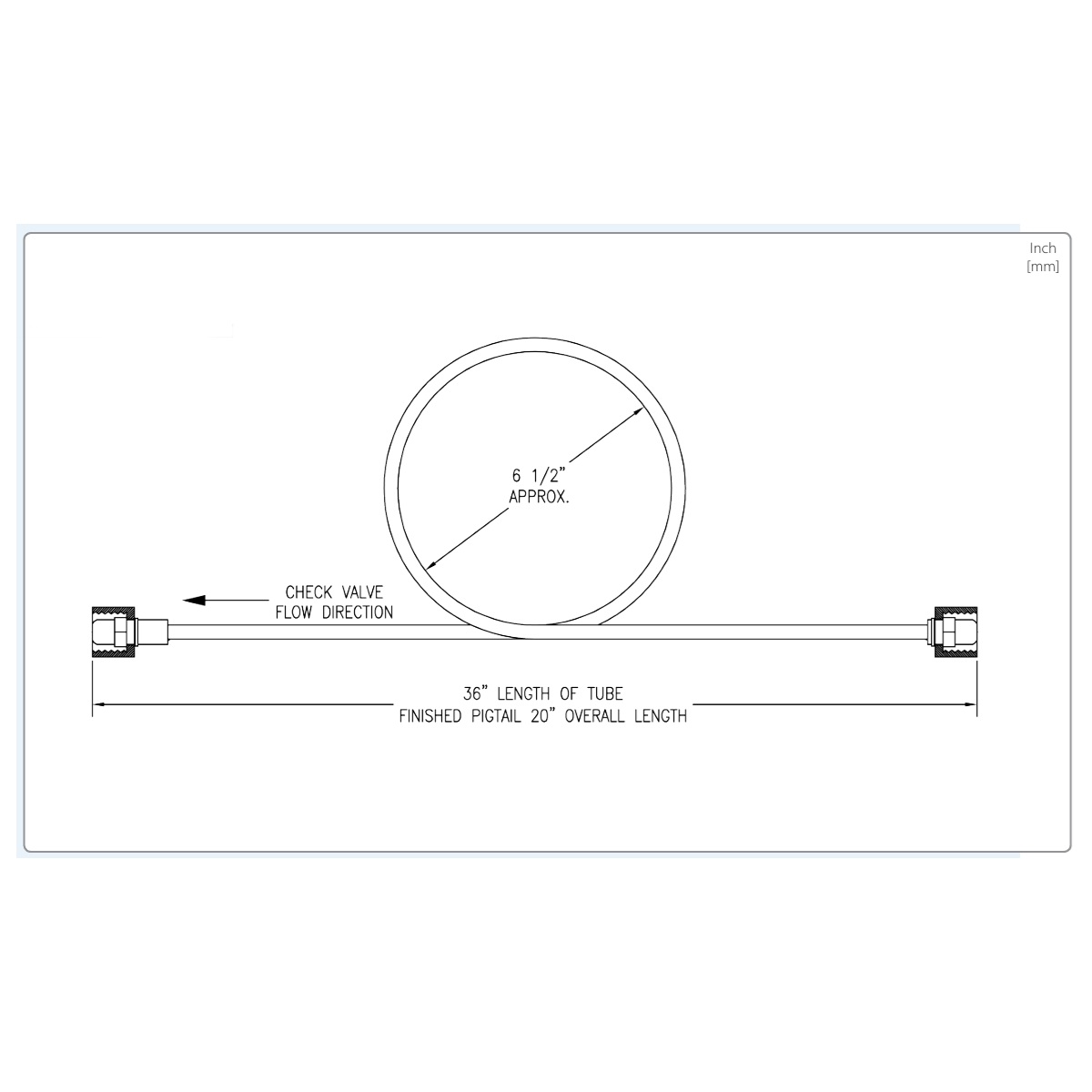

• Overall Length: 36″
• Finished Length: 20″ (With Loop)
• CGA 540 Nut (Both Ends)
• One Way Check Valve on One End
• The Amico copper pigtails have a 5/16″ x 0.065″ wall thickness, copper tube
• Note: Burst pressure ratings for pigtails are determined at room temperature with the hose in a straight line
• Note: Do not apply heat to pigtails
• Cleaned for Medical Oxygen Service
• NFPA Approved and UL Listed
• For use with any brand High Pressure (3000 PSI or less) Oxygen Manifold System

High Pressure Copper Pigtails Specifications Sheet
