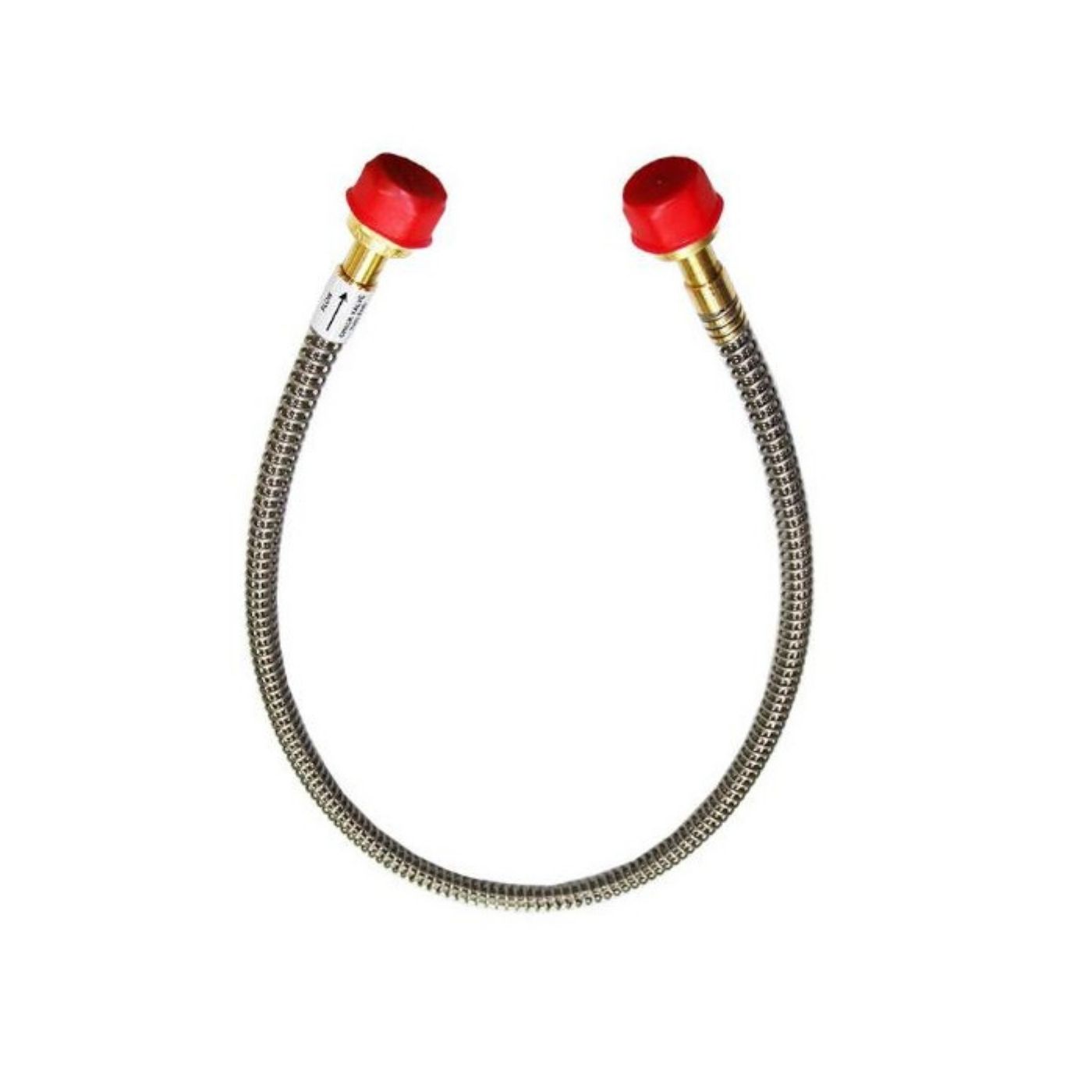

Amico M-X-HB-PTSC-NIT Coil Guard Nitrogen CGA 580 One-Way CV Pigtail 36″

Amico M-X-HB-PTSC-NIT Coil Guard Nitrogen CGA 580 One-Way CV Pigtail 36″

Features:

• Coil Guard Stainless Coil
• CGA 580 Both Ends
• Burst pressure rating at room temperature: 12,000 psig
• Maximum 3000 psig working pressure on tubing
• All pigtails 100% tested before shipping and labelled for gas service and pressure rating
• Standard length 36″ (3′)
• Includes a sticker that indicates the direction of the flow
• The pigtails include a stainless-steel coil guard

General Specifications:

The Amico stainless steel pigtails shall have a core which consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless-steel braid. The braid will incorporate a type 304 full hard drawn stainless-steel wire. It shall consist of a 1/4″ (6.4 mm) nominal I.D. The Amico stainless steel pigtails shall come with a check valve equipped to one of the ends. Note: Burst pressure ratings for pigtails are determined at room temperature with the hose in a straight line. A safety factor of 4:1 should be used for normal applications. Impulse and shock pressure applications may require a higher safety factor. Note: Do not apply heat to pigtails. All cylinder connections machined to CGA specifications for applicable gases. Amico products comply with NFPA 99 and CSA Z7396.1.

Amico Coil-Guard Pigtail Specification Sheet
