Amico M3A4-DL-HH-U-HELIOX Heliox Dome Loaded Manifold Nema-4 NFPA

Amico M3A4-DL-HH-U-HELIOX Heliox Dome Loaded Manifold Nema-4 NFPA

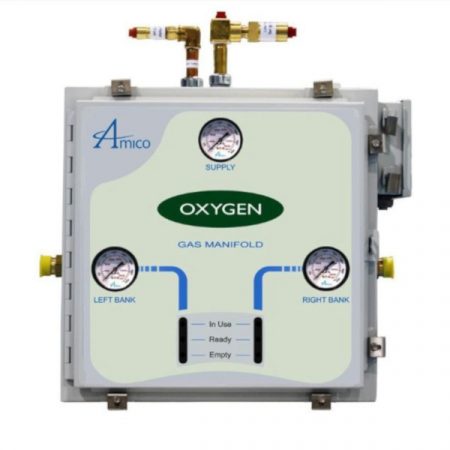

The Amico Dome Loaded Manifold with Nema-4 cabinet has been designed to provide reliable and fully automatic uninterrupted gas flow regardless of the size of your facility. With the best flow rates in the industry, this manifold will provide years of hassle-free service. Dome Loading technology allows us to eliminate the shuttle valve and provides the ability to switch from the bank in use to the reserve bank without a fluctuation in flow pressure. This unit has all the benefits of the Dome Loaded Manifold with the addition of a Nema-4 cabinet which makes it suitable for outdoor use as it is designed to provide protection against dust, dirt, oil and water. This manifold, with analog gauges, will provide you years of service backed by the Amico 5 year warranty.

FEATURES:

• Fully automatic with dual line regulators
• Input power 110 VAC to 240 VAC, 50 to 60 HZ
• Control panel incorporates six LEDs, when illuminated is noticeable even in poor lighting conditions
• 3/4″ (19 mm) isolation valve for supply line
• Manifold complies with NFPA 99
• Flow capacity:
  Oxygen, Medical Air, Nitrous Oxide and Carbon Dioxide – 4,500 SCFH (2,123 L/min)
  Nitrogen & Instrument Air – 6,000 SCFH (2,831 L/min)

DOME LOAD MANIFOLD MANUAL
