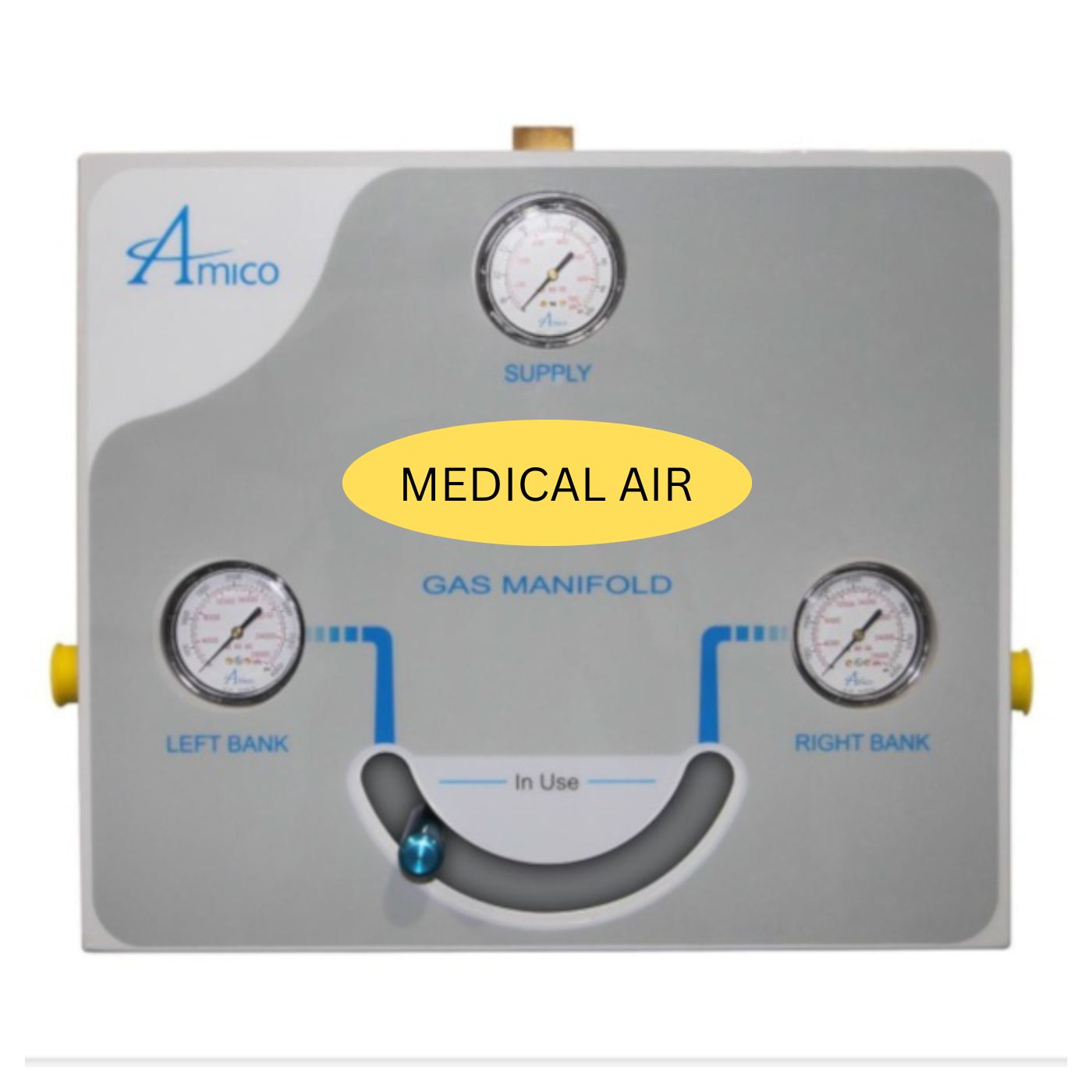

Amico M3EC-S-HH-U-AIR Med Air Economy Dome Loaded Manifold Cabinet

SKU: 09018

Call for Price

Amico M3EC-S-HH-U-AIR Med Air Economy Dome Loaded Manifold Cabinet

The Amico Economy Manifold incorporates the basic necessities for distribution and monitoring of gas throughout a facility. The Manifold is semi-automatic and shall switch from In Use bank to Reserve bank once the In Use bank depletes. Manual operation shall be required at the time of changing cylinders to ensure that the Reserve bank is changed to In Use. The bank that has new cylinder(s) shall be the Reserve. A pressure switch controls the remote alarm which indicates the In Use to Reserve supply switch-over and that cylinder replacement is necessary.

The pressure switch is set to trigger an alarm condition when the operating bank pressure drops pressure slightly above the secondary bank outlet pressure and just before the bank switch-over occurs. All Manifold regulators, piping and control switching equipment shall be cleaned for oxygen service

FEATURES:

  • Heavy duty line regulator to produce optimum gas flow
  • Pressure switch with dry contacts to indicate “reserve” in use alarm
  • Check valves provided to prevent back flow from one bank to the other
  • Removable cabinet enclosure for easy installation and service
  • Maximum inlet pressure: 3000 psi
  • Maximum delivery pressure: 180 psi

ECONOMY MANIFOLD MANUAL

SKU 09018 Categories ,

Additional information

Manufacturer

Amico

Manufacturer Part Number

M3EC-S-HH-U-AIR

Condition

New
