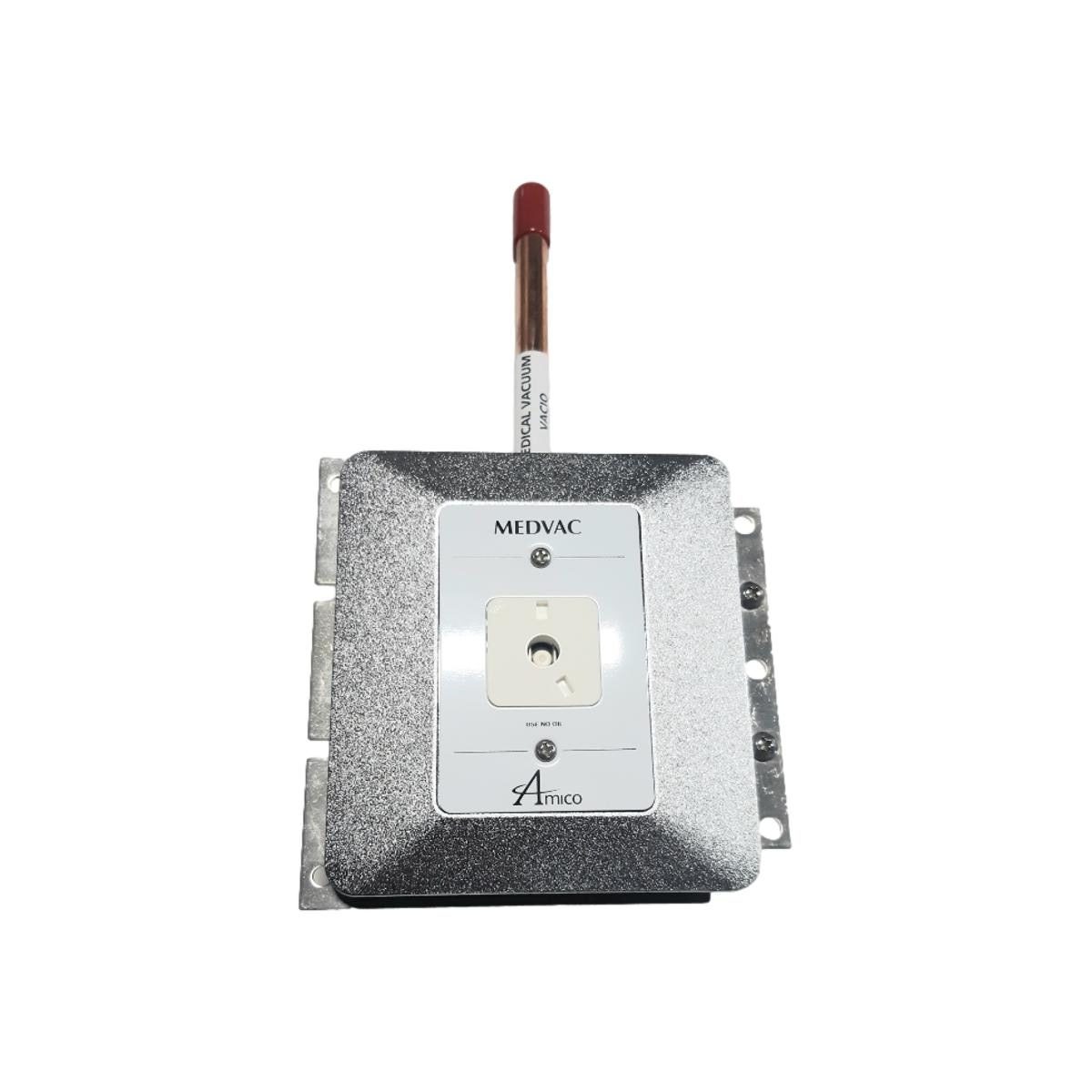

Amico O-QDWALM-U-VAC Medical Vacuum MRI Safe Ohmeda Complete Wall Outlet Assembly

Amico O-QDWALM-U-VAC Medical Vacuum MRI Safe Ohmeda Complete Wall Outlet Assembly

Outlets are manufactured with a 7-3/4″ (197 mm) length type K 1/2″ (12.7 mm) outside diameter (3/8″ [9.5 mm] nominal) size copper inlet pipe stub, which is silver brazed to the outlet body. The body is made of 1-5/16″ (33 mm) diameter, one piece brass construction. For positive pressure gas services, the outlet should be equipped with a primary and secondary check valve and the secondary check valve should be rated at a maximum of 200 psi (1,379 kPa) in the event the primary check valve is removed for maintenance. Outlet bodies are gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.

Features:

• Medical Vacuum
• Outlet Style: Ohmeda Connection
• MRI Safe
• 1/2″ (12.7mm) O.D. (3/8″ [9.5 mm] nominal) type ”K” copper pipe rotates 360 deg. for entry from any angle
• 200 PSI Max Pressure Rated
• Cleaned for Medical Vacuum Service
• Flow rate exceeds the requirements of NFPA and CSA
• Accepts quick connect gas specific adapters, or DISS Adapters depending on which front assembly is ordered
• 100% Pressure testing of each outlet and cleaned for medical gas service
• Indexed to eliminate interchangeability of gas services
• Up to 1″ (25 mm) wall thickness adjustment
• Universal rough-in assembly to accept Quick Connects or DISS front adapters. (Can be interchanged at any time)
