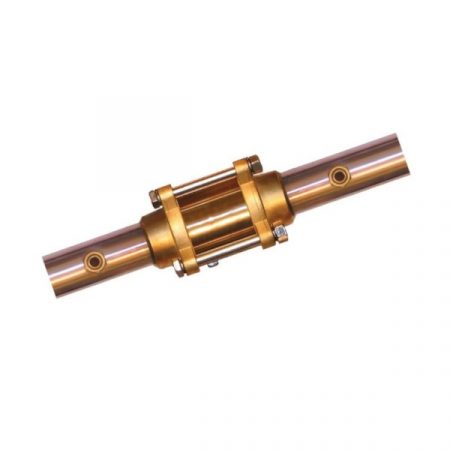

Amico VV-CHK3-EXT07 Medical Gas Check Valve

Amico VV-CHK3-EXT07 Medical Gas Check Valve

• 3/4″
• With Extensions

The valves are a 3-Piece design, with a removable body for servicing without cutting or disassembling of lines. Valves are to be provided with type-K copper extensions for connections on the pipeline. The medical gas check valves are designed for working pressures of up to 300 psig [2,068 kPa].

Each check valve assembly is washed and degreased for medical gas service as per CGA G-4.1. Pipe stub extensions are capped at both ends. The valve is supplied in a sealed plastic bag to prevent contamination prior to installation.

NOTE: The Medical Gas Check Valve is recommended to be installed in the horizontal position.

FEATURES:

• Cleaned for medical gas service
• Individually packaged and capped
• Available in sizes 1/2 inches to 4 inches
• 3-piece design for ease of maintenance
• Type-K copper extensions
• Dual gauge port design
• 100% Hydrostatically tested
• Pressure rating up to 300 psig [2.068 kPa]
• Highest CV possible
