Bovie A2350 Surgi-Center PRO Electosurgical Generator

$5,425.00

In stock

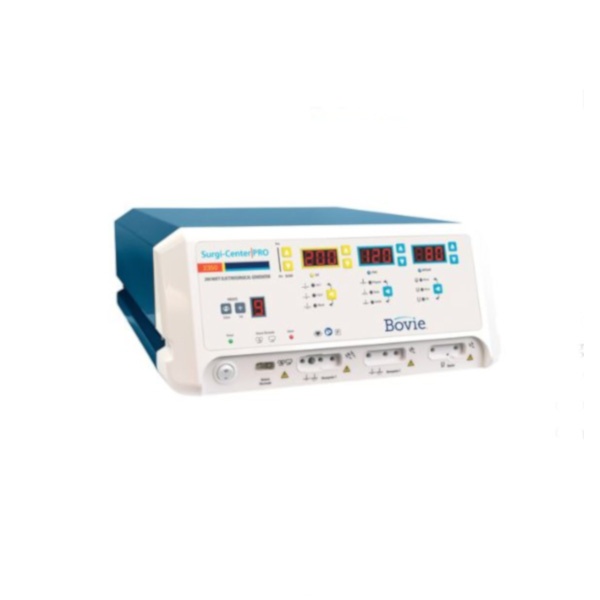

Bovie A2350 Surgi-Center PRO Electosurgical Generator

The Bovie A2350 Surgi-Center PRO Electosurgical Generator is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to your medical facility. The system delivers 12 mono-polar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie Surgi-Center PRO includes technology? such as BovieNEM return split pad contact quality monitoring, BovieFDFS tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie Surgi-Center PRO is supported by an unprecedented 4-year standard warranty.

Package Includes:

  • Bovie Surgi-Center PRO
  • Electrosurgical Generator
  • 110 VAC Hospital-Grade Power Cord (15ft.)
  • 220 VAC Hospital-Grade Power Cord (15ft.)
  • User’s Guide in CD Format (MC-55-232-001)

Technical Specifications:

  • Audible/Visible Output Meter: Yes
  • Contact Monitoring Systems: BovieNEM™
  • Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Pre-set Feature: Yes
  • Mono-polar HP Ports: 2
  • Dual Activation Tone Alert: Yes
  • Connector Ports/Power Switch: White
  • Weight: <9.07 kg (<20 lbs)
  • Dimensions: W – 37.5 cm (14.75 in) H – 16.5 cm (6.5 in) D – 46 cm (18.1 in)
  • Warranty: 4 years, Additional Warranty Available
MONO-POLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Cut I 200 1000V 1.7  20% 490 kHz  4.9 kHz
Cut II? 200 750V 1.7  20% 490 kHz  4.9 kHz
Blend (1) 200 1320V 1.8  20% 490 kHz  4.9 kHz
Blend (2) 200 1475V 2.0  20% 490 kHz  4.9 kHz
Blend (3) 200 1650V 2.2  20% 490 kHz  4.9 kHz
Blend (4) 200 1870V 2.4  20% 490 kHz  4.9 kHz
Pinpoint Coagulation 120 1800V 3.1  20% 490 kHz  4.9 kHz
Spray Coagulation 120 4000V 6.0  20% 350 to 450 kHz
Gentle Coagulation 120 450V 1.6  20% 490 kHz  4.9 kHz



BIPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Macro Bipolar 80 600V 1.5  20% 490 kHz  4.9 kHz
Micro Bipolar 80 500V 1.5  20% 490 kHz  4.9 kHz
Standard Bipolar 50 250V 1.5  20% 490 kHz  4.9 kHz





Audible/Visible Output Meter:
Yes

Contact Monitoring Systems:
BovieNEM?

Contact Monitoring Systems
Range/Trip Point:

10 ohms or less over entire
operating range (10C to 40C)

Cooling System:
Passive Cooling

Technology:
Isolated RF Output

Pre-set Feature:

Yes

Monopolar HP Ports:
2

Dual Activation Tone Alert:
Yes

Connector Ports/Power Switch:
White

Weight:

<9.07 kg (<20 lbs)

Dimensions:
W  37.5 cm (14.75 in)
H  16.5 cm (6.5 in)
D  46 cm (18.1 in)

Warranty:
4 years, Additional Warranty Available

Click Here for SurgiCenterPRO Brochure

Click here for SurgicenterPRO User Guide

*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A&C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to orders@medicalgassupplier.com

Manufacturer

Bovie

Manufacturer Part Number

A2350

Condition

New
