Bovie A3350-V OR PRO Veterinary Electro Surgical Generator

SKU: 08383

Call for Price

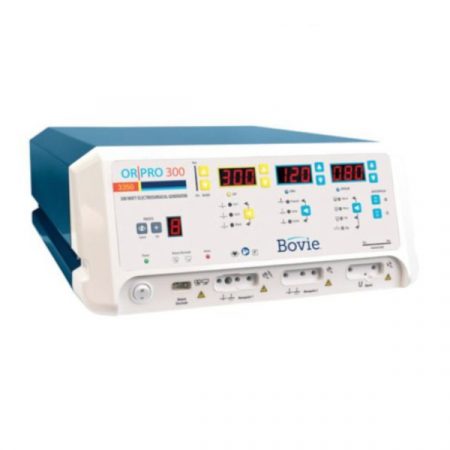

Bovie A3350-V OR PRO Veterinary Electro Surgical Generator

The Bovie A3350-V OR PRO Veterinary Electro Surgical Generator offers 300 watts of power to facilitate large animal surgical procedures. This innovative energy-based device offers 13 modes of surgical energy delivery. The unit is intended for cutting, coagulation, and ablation of a variety of tissues. The Bovie A3350-V OR PRO Veterinary Electro Surgical Generator is engineered to meet operating room demands with safety, reliability and precision.

  • Tissue sensing AutoBipolar feature automatically activates and delivers bipolar energy without the use a footswitch.
  • Bovie FDFS technology measures tissue impedance 5,000,000 times a second and adjusts output 5,000 times a second for consistent energy delivery in a variety of tissues.
  • Unique to the Bovie 3350-V is the Bovie Bipolar (BBP) mode with pulsing bipolar for tissue fusion and aggressive bleeding control.
  • The Bovie 3350-V makes switching from Cut to Coag as easy as pushing the button on the ESPR2 reusable electrosurgery pencil.
  • The Gentle Coagulation mode provides a safer, more gentle alternative for effective treatment of delicate and sensitive tissues.
  • Ten (10) presets for quick, easy, setup, and an additional 6 bipolar specific presets.



TECHNICAL SPECS:

MONOPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Cut I 300 1000V 1.7 – 20% 490 kHz – 4.9 kHz
Cut II? 300 750V 1.7 – 20% 490 kHz – 4.9 kHz
Blend (1) 200 1320V 1.8 – 20% 490 kHz – 4.9 kHz
Blend (2) 200 1475V 2.0 – 20% 490 kHz – 4.9 kHz
Blend (3) 200 1650V 2.2 – 20% 490 kHz – 4.9 kHz
Blend (4) 200 1870V 2.4 – 20% 490 kHz – 4.9 kHz
Pinpoint Coagulation 120 1800V 3.1 – 20% 490 kHz – 4.9 kHz
Spray Coagulation 120 4000V 6.0 – 20% 350 to 450 kHz
Gentle Coagulation 120 450V 1.6 – 20% 490 kHz – 4.9 kHz
BIPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Macro Bipolar 150 600V 1.5 – 20% 490 kHz – 4.9 kHz
Micro Bipolar 80 450V 1.5 – 20% 490 kHz – 4.9 kHz
Standard Bipolar 50 300V 1.5 – 20% 490 kHz – 4.9 kHz
Bovie Bipolar 225 250V 1.5 – 20% 490 kHz – 4.9 kHz
Auto Bipolar 80 490 kHz – 4.9 kHz

Audible/Visible Output Meter:
Yes

Contact Monitoring Systems
Range/Trip Point:

10 ohms or less over entire
operating range (10C to 40C)

Cooling System:
Passive Cooling

Technology:
Isolated RF Output

Pre-set Feature:
Yes

Current Meter:
Yes

Monopolar HP Ports:
2

Dual Activation Tone Alert:
Yes

Connector Ports/Power Switch:
White

Weight:
<9.07 kg (<20 lbs)

Dimensions:
W  37.5 cm (14.75 in)
H  16.5 cm (6.5 in)
D  46 cm (18.1 in)

Warranty:
4 years, Additional Warranty Available



Click Here for OR PRO Brochure

Click Here for OR PRO User Guide



*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A&C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to orders@medicalgassupplier.com





SKU 08383 Categories , ,

Additional information

Weight 9.00 lbs
Dimensions 10.25 × 6 × 12 in
Manufacturer

Bovie

Manufacturer Part Number

A3350-V

Condition

New
