SKU: 08090 Categories: , ,

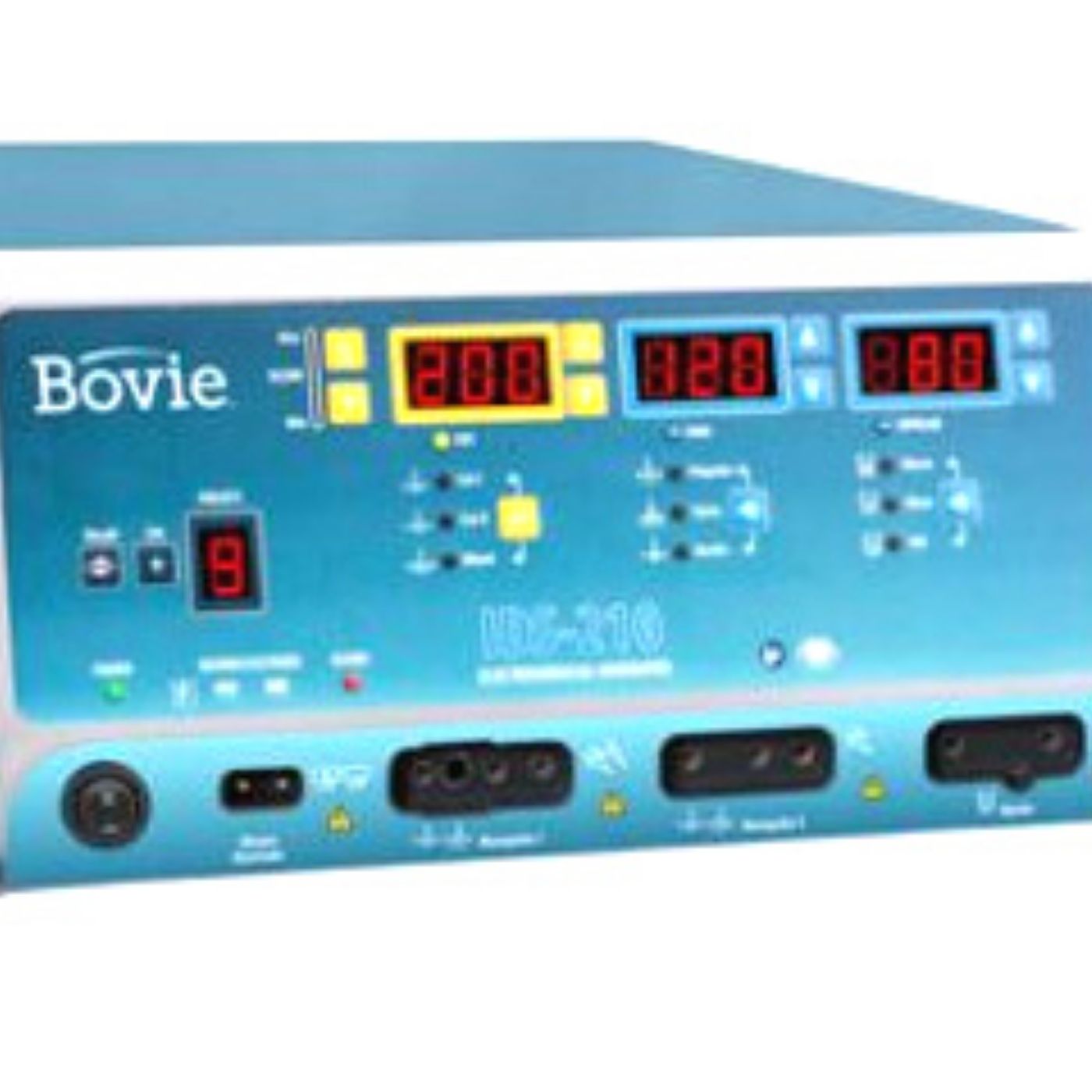

Bovie IDS-210 Electrosurgical Generator
Bovie IDS-210 Electrosurgical Generator - Image 2

Bovie IDS-210 Electrosurgical Generator

SKU: 08090

  • Contact Monitoring Systems: BovieNEM
  • Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C to 40C)
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Power Display Accuracy: 20% or 5 watts whichever is greater
  • Technology: Isolated RF Output
  • Pre-set Feature: Yes
  • Monopolar HP Ports: 2
  • Connector Ports/Power Switch: White
  • Box Color: Blue
  • Face Plate: White
  • Overlay: White
  • Weight: <9.07 kg (<20 lbs)

Dimensions:
W  37.5 cm (14.75 in)
H  16.5 cm (6.5 in)
D  46 cm (18.1 in)

Warranty: 4 years, Additional Warranty Available

Special Order

backorder

Bovie IDS-210 Electrosurgical Generator

The Bovie IDS-210 Electrosurgical Generator is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie IDS-210 includes technology such as Bovie NEM return split pad contact quality monitoring, Bovie FDFS tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie IDS-210 is supported by the Bovie unprecedented 4 year standard warranty.

TECHNICAL SPECS:

MONOPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Cut I 200 1000V 1.7  20% 490 kHz  4.9 kHz
Cut II 200 750V 1.7  20% 490 kHz  4.9 kHz
Blend (1) 200 1320V 1.8  20% 490 kHz  4.9 kHz
Blend (2) 200 1475V 2.0 20% 490 kHz  4.9 kHz
Blend (3) 200 1650V 2.2  20% 490 kHz  4.9 kHz
Blend (4) 200 1870V 2.4  20% 490 kHz  4.9 kHz
Pinpoint Coagulation 120 1800V 3.1  20% 490 kHz  4.9 kHz
Spray Coagulation 120 4000V 6.0  20% 350 to 450 kHz
Gentle Coagulation 120 450V 1.6  20% 490 kHz  4.9 kHz
BIPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ)
Macro Bipolar 80 600V 1.5  20% 490 kHz  4.9 kHz
Micro Bipolar 80 500V 1.5  20% 490 kHz  4.9 kHz
Standard Bipolar 50 250V 1.5  20% 490 kHz  4.9 kHz
  • Contact Monitoring Systems: BovieNEM
  • Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C to 40C)
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Power Display Accuracy: 20% or 5 watts whichever is greater
  • Technology: Isolated RF Output
  • Pre-set Feature: Yes
  • Monopolar HP Ports: 2
  • Connector Ports/Power Switch: White
  • Box Color: Blue
  • Face Plate: White
  • Overlay: White
  • Weight: <9.07 kg (<20 lbs)

Dimensions:
W  37.5 cm (14.75 in)
H  16.5 cm (6.5 in)
D  46 cm (18.1 in)

Warranty: 4 years, Additional Warranty Available

*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A&C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to [email protected]



SKU 08090 Categories , ,

Additional information

Weight 1 lb
Dimensions 6 × 6 × 6 in
Manufacturer

Bovie
Manufacturer Part Number

IDS-210
Condition

New
