Bovie XLDE-SC MI 550 LED Single Ceiling Exam Light

Bovie XLDE-SC MI 550 LED Single Ceiling Exam Light

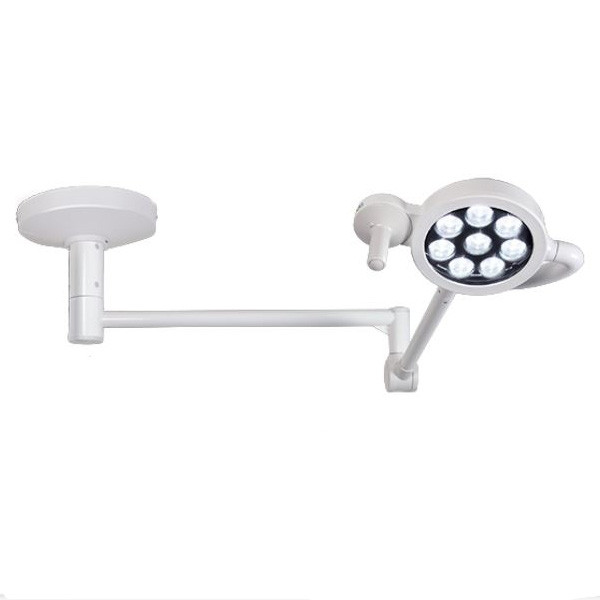

Compact but powerful, Bovie XLDE-SC MI 550 LED Single Ceiling Exam Light is the perfect fit and offers the greatest value in an examination light. It provides maximum brightness, sharpness and color accuracy, so you can visualize your work in the most precise way. And the 55,000 hour-rated LED life means this light will faithfully serve your practice for many long years, while consuming the least amount of energy.  Output rated at 55,000 LUX at 24 inches (610mm) distance.

• 4,300 degrees K pure white illumination
• CRI (Color Rendering Index) of 97
• Whiter, more color-correct light than halogen exam lights
• Near-zero?heat from both light beam and light head housing
• High efficiency with half the electric consumption of standard halogen lights

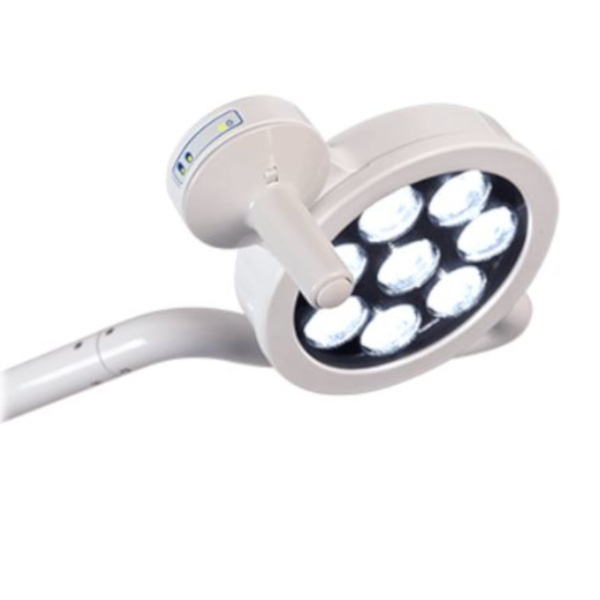

• Compact head design with smooth arm articulation
• Lower overall maintenance costs due to long-lasting LEDs

  TECHNICAL SPECS

  Optical Specifications:

  Number of LEDs: 8

  Output: 55,000 Lux @ 24 inches (0.6m)

  CCT: 4,300 degrees K

  CRI: 97

  Focal Length: 24 inches (0.6m)

  Dimming Levels: 2

  Dimming Percentages: 100%, 50%

  Endo Mode: No

  Light Field (d10): 6.0 (152mm)

  Light Field (d50): 3.5  ( 89mm)

  Irradiance: 71 W/m²

  Electrical Specifications:

  Supply Circuit: 100- 240 VAC, 50/60Hz

  Fuse Rating: 1.5 Amp/250VAC

  Power Supply power handling capacity: 65W

  Light Head power consumption: 16W @ 24VDC

  Environmental Specifications:

  Ambient/Operating temperature: 41 F to 104 F (5 C to 40 C)

  Storage Temperature: -4 F to 122 F (-20 C to 50 C)

  Humidity: 10 – 90% Relative Humidity

  Pressure: 100kPA (@<2k meters)

  Mechanical Specifications:

  Light Head Weight: 6.9 lbs (3.1 kg)

  Light Head Dimensions: 9.2 inches (234mm) 2.6 inches (66mm)

  Arm Assembly Weight: Single = 48.3 lbs (22.0 kg),

  Arm Assembly Weight: Dual?= 77.1 lbs? (35.0 kg)

  Articulating Arm Vertical Movement:  20  Up, -60  Down

  Articulating Arm Horizontal Movement: 540

  Articulating Arm/Yoke Interface: 540

  Yoke/Light Head Interface: 300

  CLICK HERE FOR MI-550 BROCHURE

  CLICK HERE FOR MI-550-750-1000 GUIDE

  CLICK HERE FOR MI-550-750-1000 CUTSHEET

  CLICK HERE FOR MI-550-750-1000 PRE-INSTALL

  CLICK HERE FOR MI-550-750-1000 SPECS

Made in the USA
