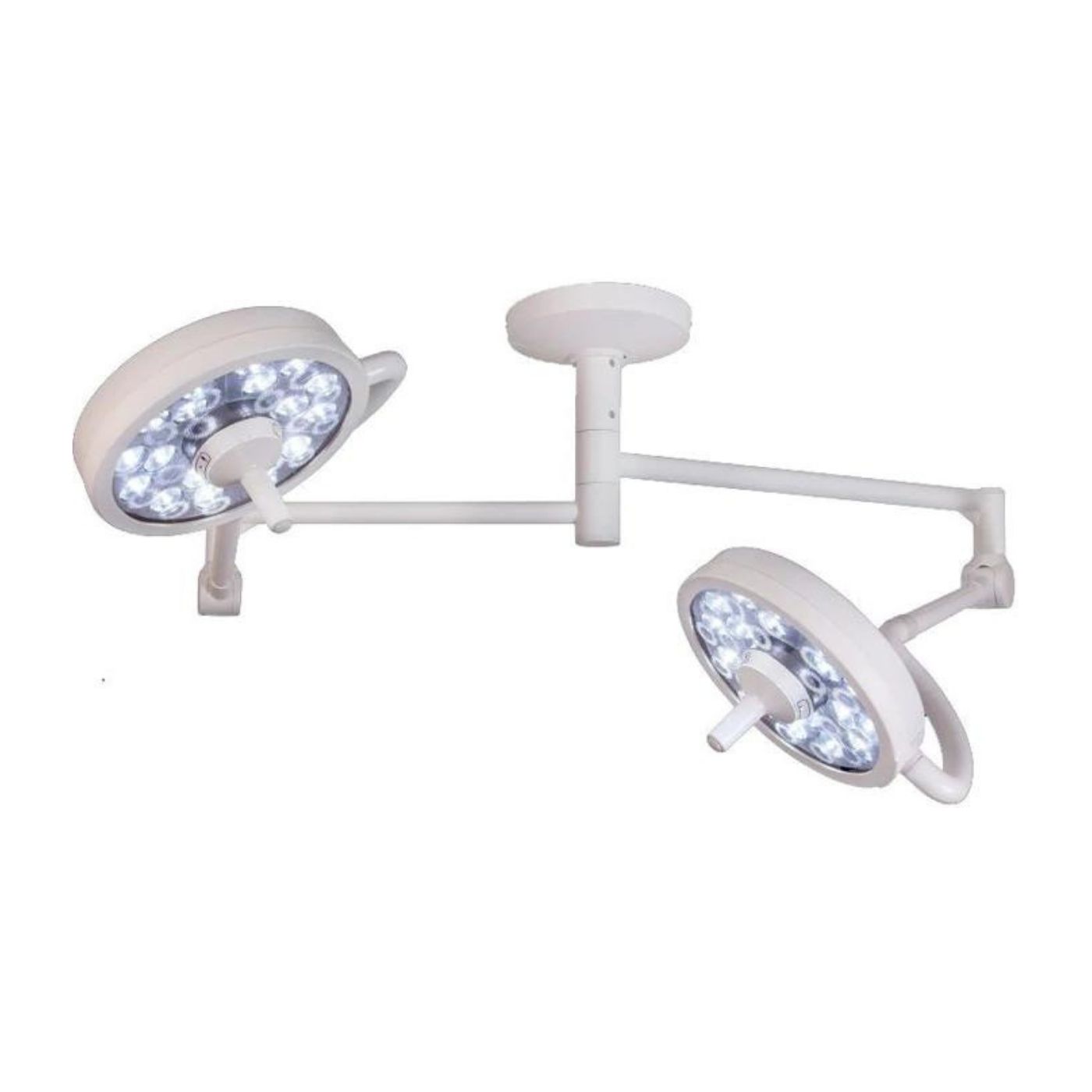

Bovie XLDP-DC MI 750 Dual Ceiling LED Exam Light

Optical Specifications:

Number of LEDs: 18

Output: 75,000 Lux @ 39.4 inches (1m)

CCT: 4,300 degrees K

CRI: 97

Focal Length: 39.4  inches (1m)

Dimming Levels: 3

Dimming Percentages: 100%, 75%, 50%

Endo Mode: No

Light Field (d10):  7.7  ( 196mm)

Light Field (d50):  4.3  ( 110mm)

Depth of Illumination: 26.5  (673mm)

Illuminance (one mask): .003%

Illuminance (two masks): 34.5%

Illuminance (tube with one mask): .003%

Illuminance (tube with two masks): 35.5%

Irradiance: 196 W/m

Electrical Specifications:

Supply Circuit: 100- 240 VAC, 50/60Hz

Fuse Rating: 1.5 Amp/250VAC

Power Supply power handling capacity: 65W

Light Head power consumption: 27W@24VDC

Mechanical Specifications:

Light Head Weight: 9.0 lbs (4.1 kg)

Light Head Dimensions:  14.5 inches (368mm) 3.25 inches H (83mm)

Arm Assembly Weight: Single = 48.3 lbs (21.9 kg),

Arm Assembly Weight: Dual = 77.1 lbs (35.0 kg)

Articulating Arm Vertical Movement: 20  Up, -60  Down

Articulating Arm Horizontal Movement:  540

Articulating Arm/Yoke Interface:  540

Yoke/Light Head Interface:  300
