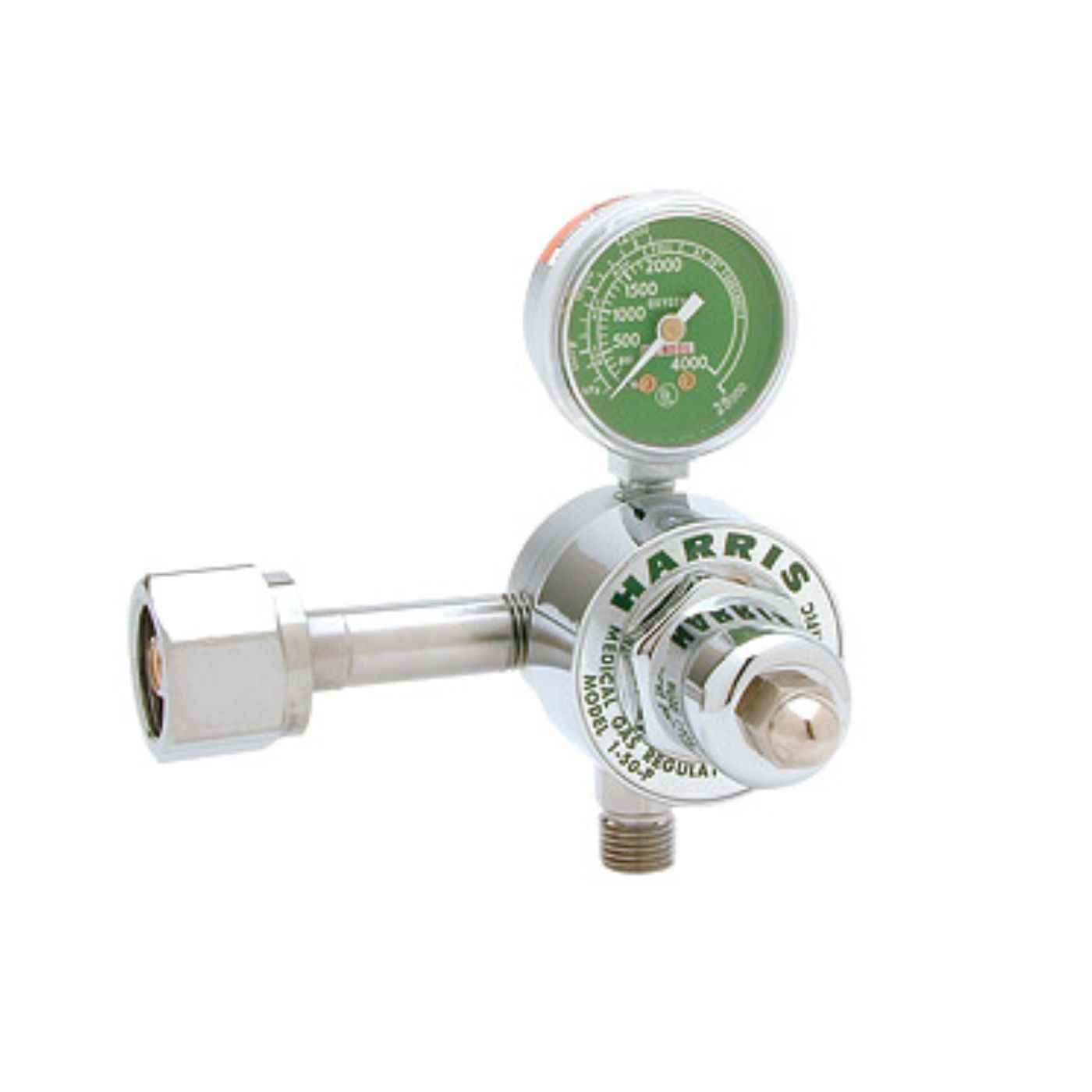

Harris 301-50PR-540 Medical O2 Regulator

Harris 301-50PR-540 Medical Oxygen Regulator

The Harris Model 301 regulators are compact single-stage metering regulators ideally suited for oxygen therapy applications using small cylinders or where space and weight limitations are important. The design of this regulator has made it a popular choice for home care, ambulance, hospital transport or doctor/dentist offices. There are Sintered bronze filters in the inlet port and outlet fitting Captive adjusting knob Internal relief system to guard against over-pressurization.

The Model 301 single-stage preset oxygen regulator possesses the sensitivity and flow control of much larger regulators in a compact design.

Preset at 50 PSIG, the Model 301 is designed to provide equipment downstream with constant pressure.

• Internal safety disc to guard against over-pressurization
• Sintered bronze filter
• 1 1/2″ gauge engineered to ANSI B-40.1 specifications
• Outlet: DISS
• Max Inlet Pressure: 3000 PSI
• Supply Pressure Gauge: 0-4000 PSI
• Delivery Pressure Gauge: 0-15 LPM
• Flow Range: 0-15 LPM
