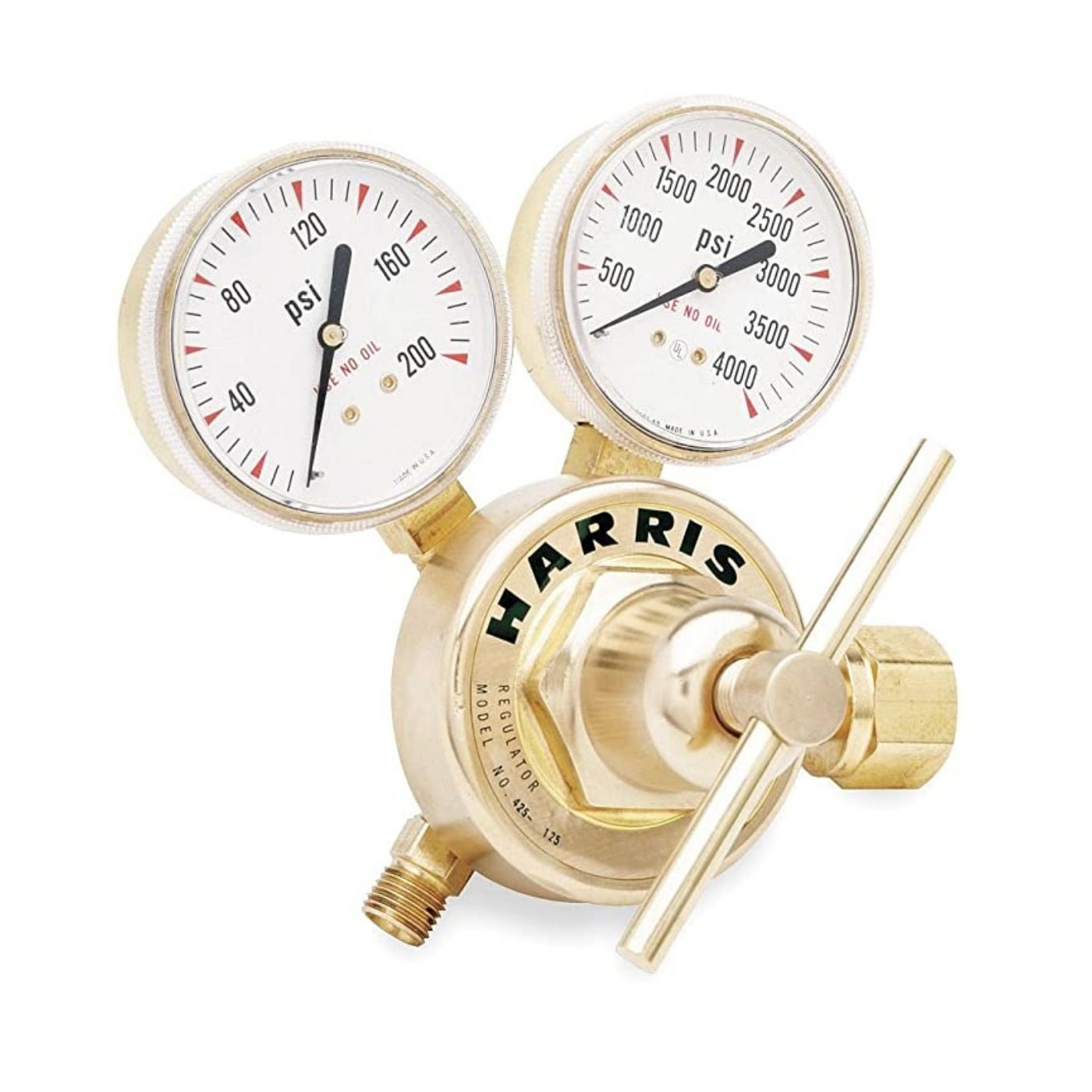

Harris 425 Single Stage N2 Regulator

SKU: 06426

  • CGA-326
  • 7-Year Warranty
  • Made in the USA
  • Capacity:  Heavy Duty
  • Cv:  0.17
  • Gauges:  2.5″ Brass
  • Pressure Regulation:  0.2 PSIG/100 PSIG
  • Seat:  One-piece encapsulated seat design with internal filter and a PTFE Teflon® seat
  • Certifications:  UL® listed/CGA E-4
  • Featured In:  Pipeliner® Classic kits
  • Weight:  3.7 lbs. / 1.67 kg.

$375.00

Available on backorder

Build Your Custom Hose

Harris 425 Single Stage N2 Regulator

The Model 425 is a premium single-stage industrial regulator that is an ideal choice for most industrial applications.  This regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve.  The 425 is also available in a multitude of pressure ranges and for all standard industry gases.

Adjusting Screw Brass “T” screw
Body Brass
Bonnet Brass
Certification CGA E-4
UL® listed
Cv 0.17
Delivery Pressure Gauge (PSIG) 125
Delivery Pressure Range (PSIG) 0 – 125
Diaphragm Neoprene
Duty Heavy
Equipped With Tamper proof, self-reseating, internal high-pressure safety valve
Gas / Gas Service Argon (Ar)
Helium (He)
Nitrogen (N2)
Gauges 2.5″ Brass dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Recommended Items/Accessories Steel Gauge Guard – Red (Fuel) – PN 4300238
Steel Gauge Guard – Green (Oxygen) – PN 4300239
Adapter – 9/16” – 18 (F) x 5/8″ – 18 (F) PN 90000002
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Gas Regulation

Outlet Connection 9/16″ – 18 RH
Pressure Regulation PSIG/100 PSIG 0.20

Warranty

Warranty 7 Years
SKU 06426 Category Tag

Additional information

Weight 3 lbs
Dimensions 8 × 8 × 8 in
Manufacturer

HARRIS

Manufacturer Part Number

425-125-580

Condition

New
