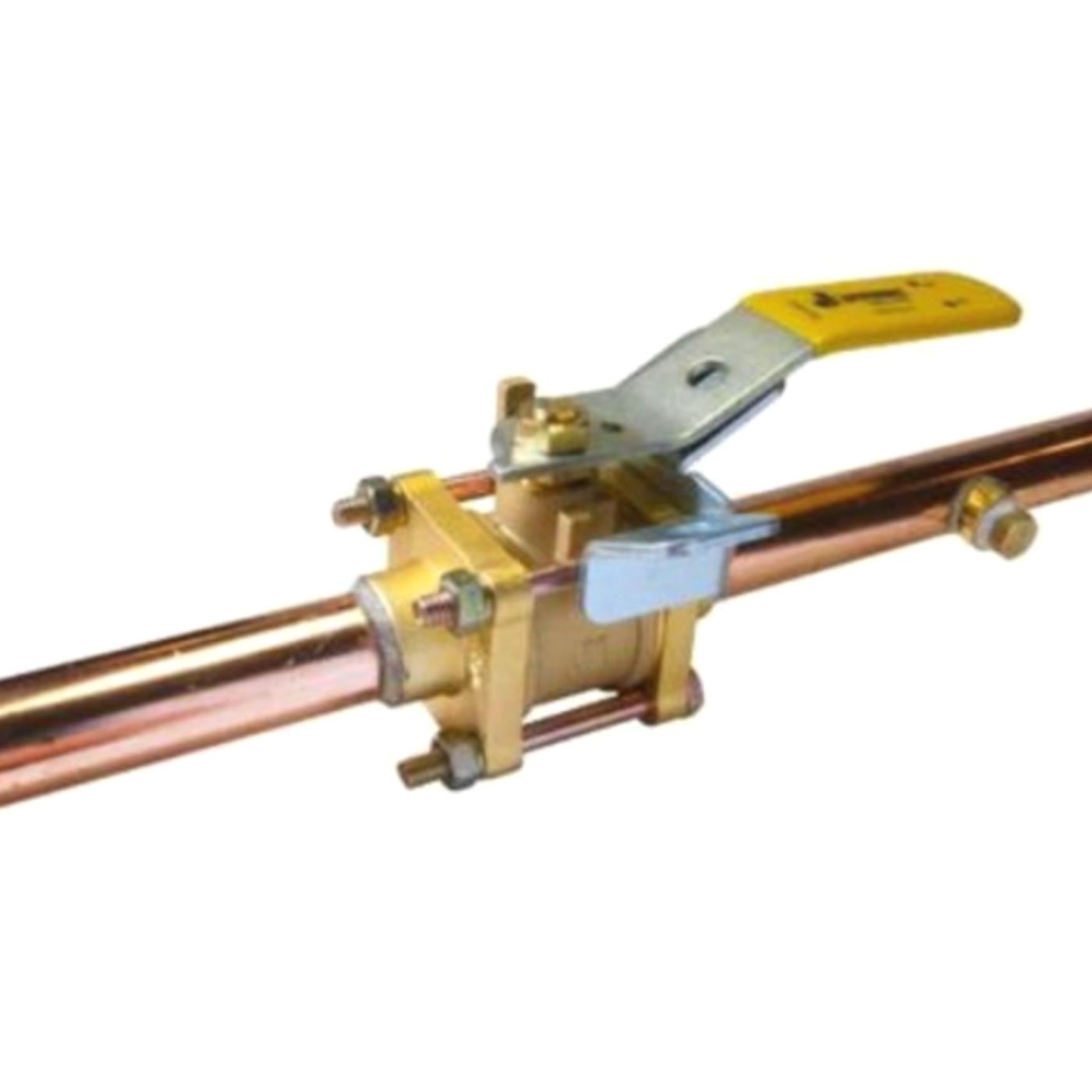

US Valve 41150-01 Medical Shutoff Valve – 1 1/2″

SKU: 13104

  • BALL VALVE
  • 1 1/2″
  • Three-PieceĀ Construction
  • ForgedĀ BrassĀ Components
  • Lowest Pressure Drop
  • Type K Copper Tube Ends
  • Dual Gage Ports Included
  • Easy to Service
  • USA Assembly and Test
  • Oxygen Cleaned and Packaged
  • All Valves are Tested

$154.99

Available on backorder

Build Your Custom Hose

US Valve 41150-01 Medical Shutoff Valve – 1 1/2″

Our Medical Gas Ball Valves conform toĀ NFPA 99–2018, section 5.1.4.3.Ā Valves are full port, 1/4 turn, double seal, ball-type,Ā three piece design with forged brassĀ body and chrome-plated brass ball. They areĀ designed for working pressuresĀ up to 600 psig and the body has TeflonĀ® materialĀ ball seats and TeflonĀ® material stem seals.Ā Seats, seals, lubricants and valve materialsĀ are compatible with USP oxygen, nitrousĀ oxide, medical air, carbon dioxide, helium,Ā nitrogen and mixtures thereof at continuousĀ pressure of up to 600 psig and vacuum serviceĀ to 29″ Hg.

Medical gas ball valves are provided with type-K copper tube extensions for connections onĀ the pipeline.Ā TheyĀ are serviceable in the line and supplied cleanĀ and prepared for oxygen service per CGAĀ G-4.1. Valves are capped and packaged in aĀ polyethylene bag to keep them clean.

  • BALL VALVE
  • 1 1/2″
  • Three-PieceĀ Construction
  • ForgedĀ BrassĀ Components
  • Lowest Pressure Drop
  • Type K Copper Tube Ends
  • Dual Gage Ports Included
  • Easy to Service
  • USA Assembly and Test
  • Oxygen Cleaned and Packaged
  • All Valves are Tested



Additional information

Weight 2 lbs
Dimensions 6 × 6 × 6 in
Manufacturer

US Valve

Manufacturer Part Number

41150-01

Condition

New
