Porter 2025 Chair Mount Kit

Porter 2025 Chair Mount Kit

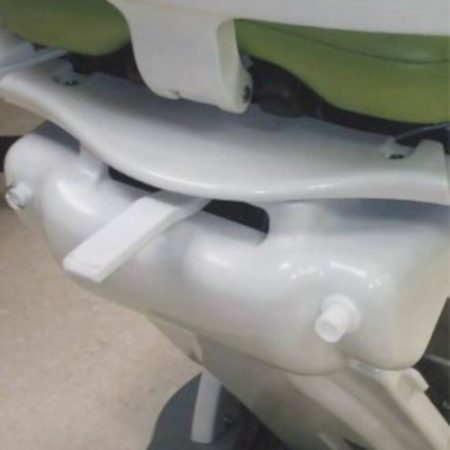

• Aesthetically pleasing mounting option for N2O and Vacuum connections to dental chair
• Clear unsightly clutter of hoses from back of chair to cabinet
• Gas and Vacuum hoses are run through a chase under floor to chair
• Installation Kit works on most chairs – either connection through a shroud or junction box
• No Bag Tee mounted on the chair

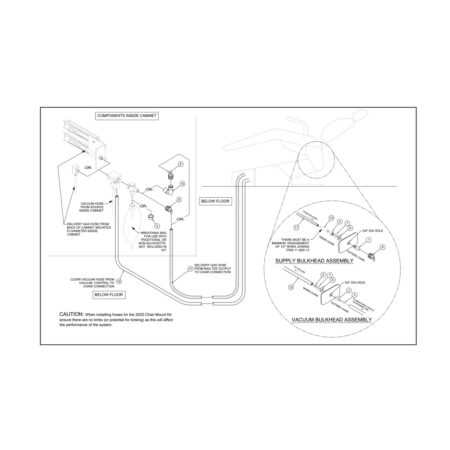

2025 Chair Mount Kit consists of the following:

1. B-5568-000 QTY: 1 $57 Bulkhead Connector
2. PA-1633-000 QTY: 1 $35 Bulkhead Coupler, Valved (includes PA-1634-000)
3. PA-1635-000 QTY: 1 $14 Unvalved Nipple
4. PA-1636-000 QTY: 1 $14 Hex Nut, Nylon, 3/4–10
5. PA-1634-000 QTY: 1 $14 Coupler Nut
6. PA-1637-000 QTY: 2 $14 ea. Washer, Sealing, Neoprene
7. PA-1638-000 QTY: 2 $14 ea. Washer, Flat, Nylon
8. B-5603-000 QTY: 2 $6.30 ea. Elbow, 22mm x 7mm
9. 62905510W QTY: 1 $14 Caplug (12), White
10. 1571-22 QTY: 1 $38 Connector (22mm) M/F, 90º Elbow
11. PA-1640-001 QTY: 1 $140 Hose, Braided, 5/16” ID, 25’ L Hose, Clear w/ White Braid
12. PA-679-CLR25 QTY: 1 $127 Vacuum Tubing, 9/16 OD, 3/8 ID, PVC, Clear, 25’ L
13. A-4484-000 QTY: 1 $13 Tubing, 0.625 OD-3/8 ID, Grey, 2” L
14. PA-1639-000 QTY: 2 $13 ea. Hole Plug, 3/4”, White
