Porter 3000 MXR Flowmeter Head

SKU: 04207

  • INCLUDES BAG TEE

$2,845.00

Available on backorder

Build Your Custom Hose

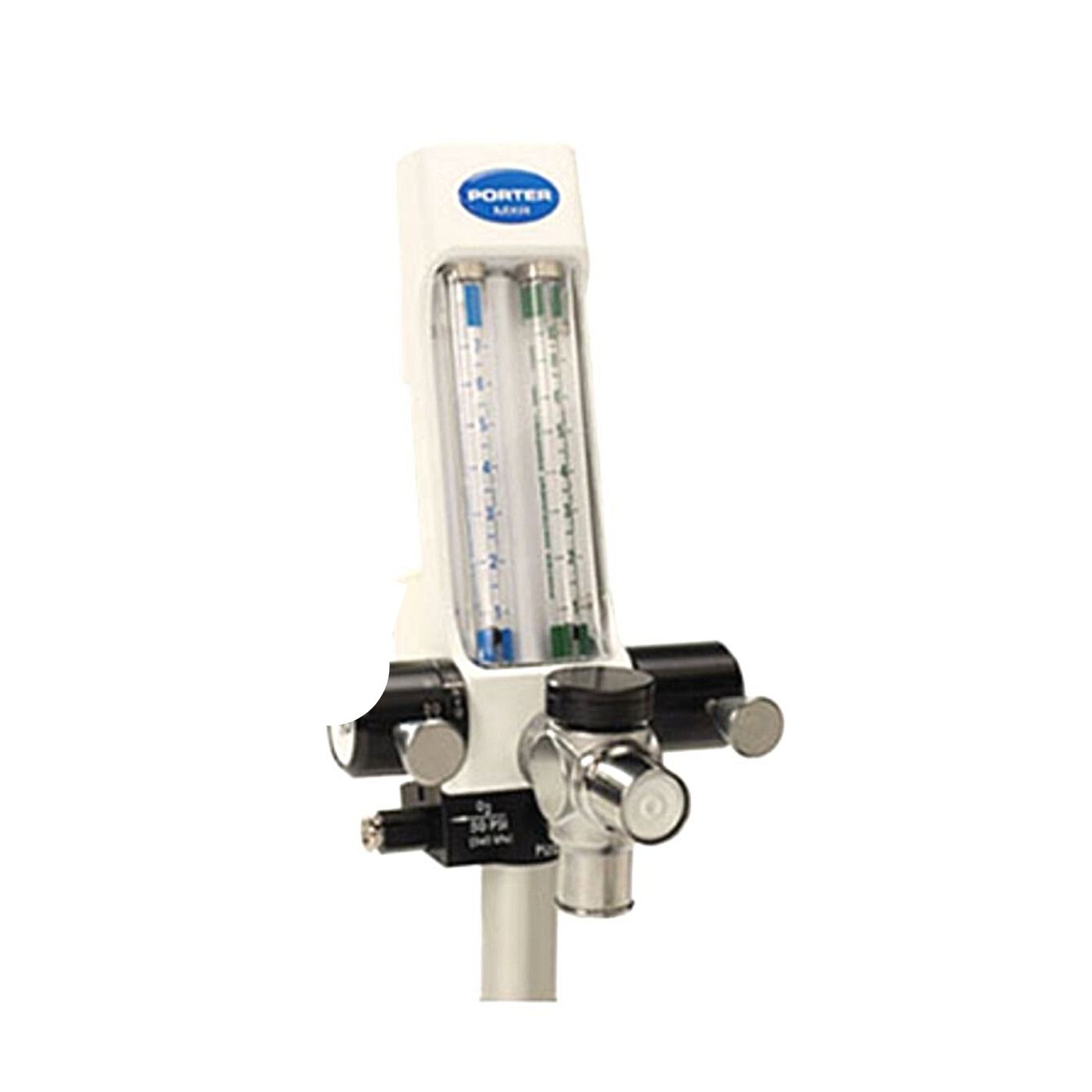

Porter 3000 MXR Flowmeter Head

The Porter MXR-3000 flowmeter is constructed with precision Porter glass flow tubes and ergonomic control valves for flow and percentage. An oxygen quick connect is conveniently located on the side of the meter. The 3000 package includes the MXR-3000 meter and a threaded bag tee.

  • Flowmeter: Indicates flow in L/min and percent N2O of total flow with accuracy of ± 5%. Includes Diameter Index Safety System (DISS) for N2O and O2 connectors.
  • Flowmeter Tubes: Direct reading flow tubes for Oxygen and Nitrous Oxide for accurate, visual flow readings.
  • Dual Seal Fail-Safe: Automatically reduces N2O if O2 is shut off or pressure is reduced Gas Control Block: One-piece, solid aluminum construction. Eliminates internal gas leaks.
  • Gas Flow Adjustment Knobs: Control knob-type knobs for quick, accurate, one-hand adjustment of gas flows.
  • Emergency Air Valve: Automatically provides patient with ambient Air if gas flow is interrupted for any reason.
  • Non-rebreathing Check Valve: Prevents rebreathing of used gases and guards against CO2 build-up.
  • Positive ON / OFF Switch: Eliminates possibility of accidentally leaving the machine on. Color- coded for Oxygen.
  • Oxygen Power Flush Button: Provides extra delivery of O2. Button is accessible to override all other gas flows and deliver 100% O2. Color-coded for Oxygen.
  • Flow Control knob: Total flow adjustment knob which controls flow of both N2O and O2 at any desired concentration. Total flow can be adjusted without affecting concentration. Includes posi-stop needle valves for adjustment of all flows—prevents damage to valves and seats.
  • Oxygen Quick Connect: Facilitates connection of resuscitation equipment to the central system.
  • INCLUDES BAG TEE

Additional information

Weight 10 lbs
Dimensions 12 × 12 × 4 in
Manufacturer

Parker Hannifin (Porter Instruments)

Manufacturer Part Number

3000

Condition

New
