Precision Medical PM3004HV Continuous Vacuum Regulator

SKU: 06600


Available on backorder

Build Your Custom Hose

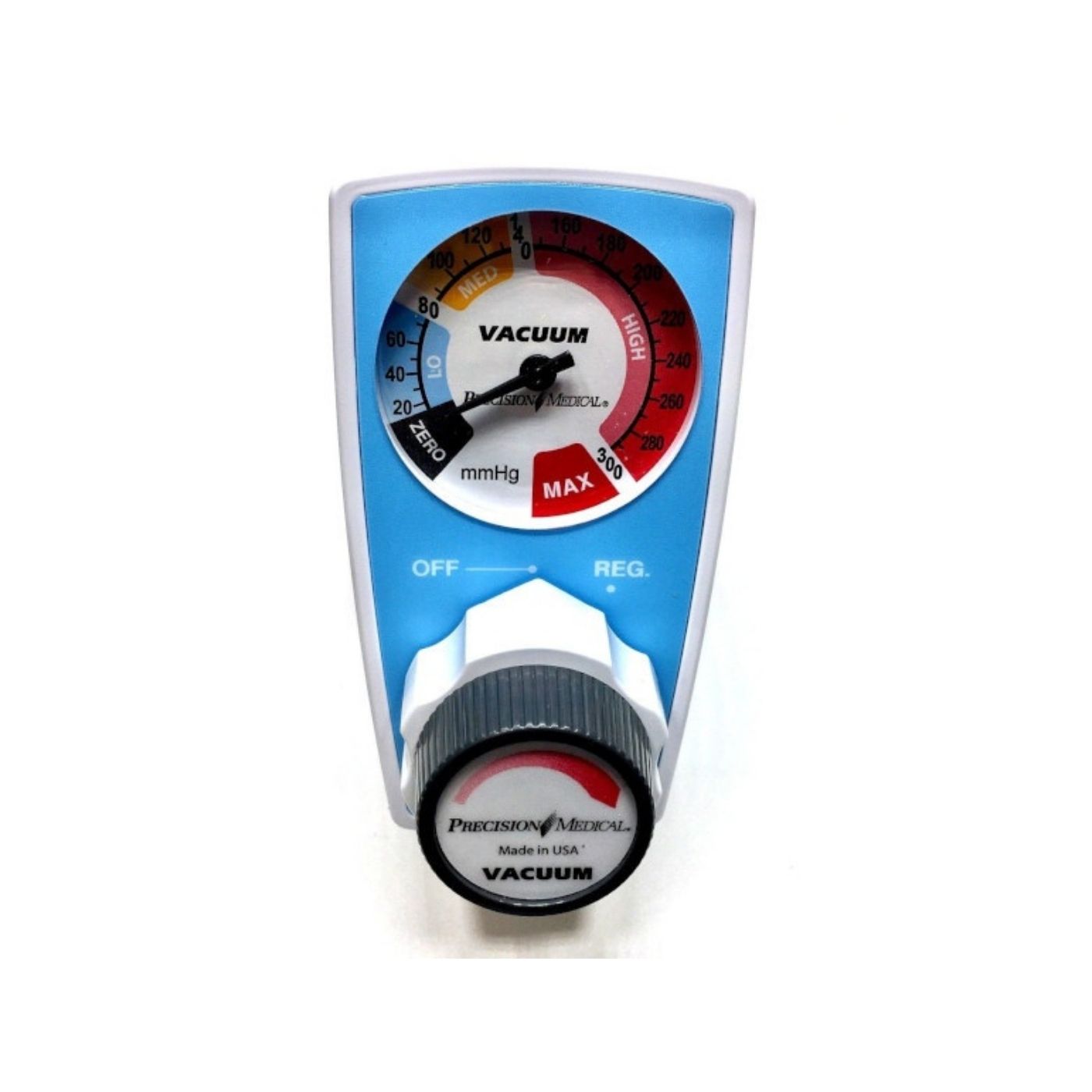

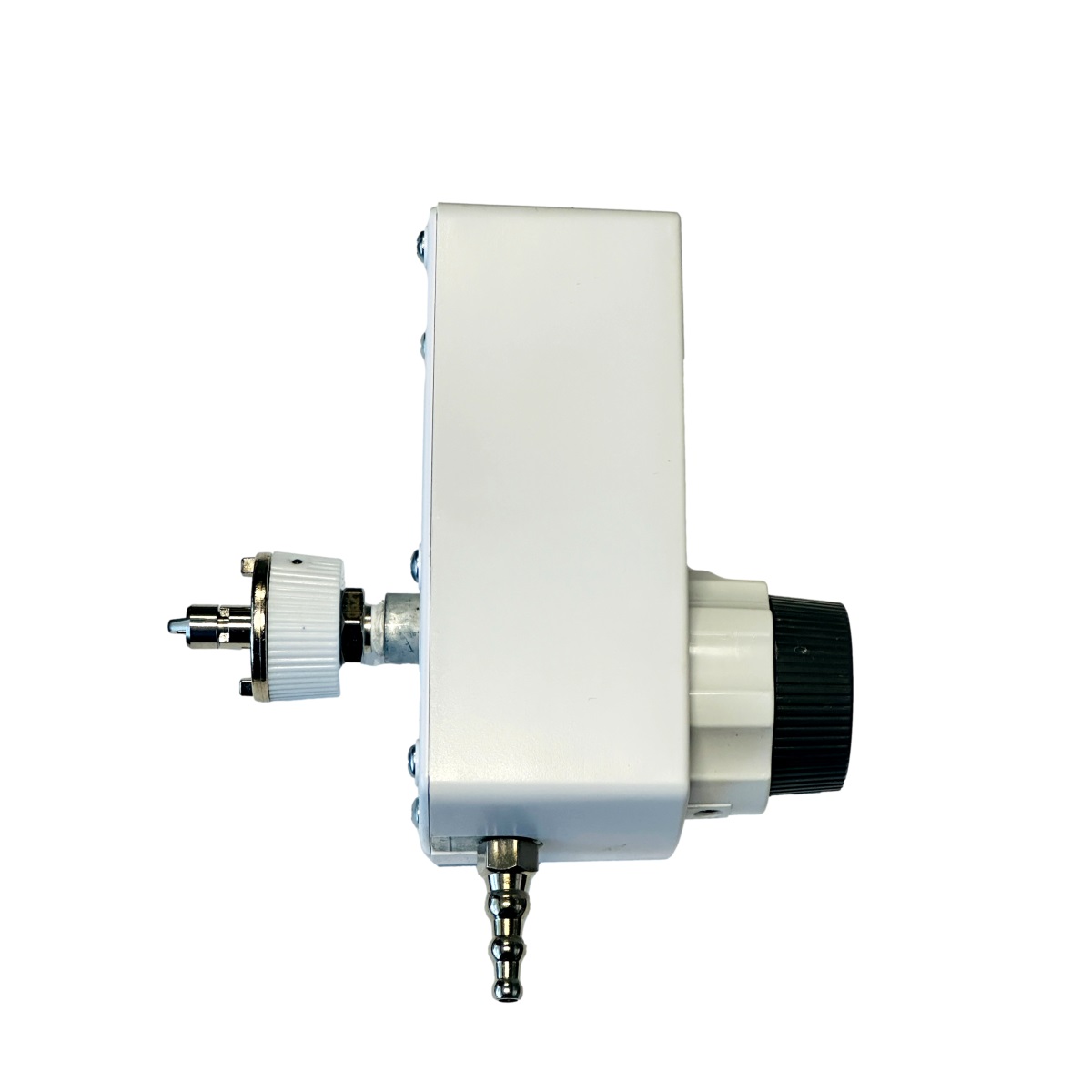

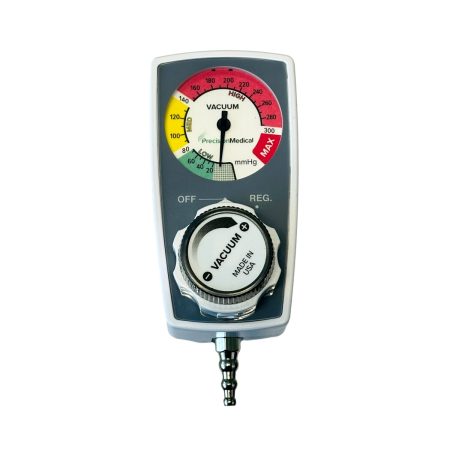

Precision Medical PM3004HV Continuous Vacuum Regulator

The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components.

Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.

As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.

The case is made of strong plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.

The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.

The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical’s “Stork Symbol” to identify the unit for pediatric applications.

Product Specifications

Gauge Reading: PM3000: 0-200 mmHg and “Max Vacuum” PM3000HV: 0-300 mmHg and “Max Vacuum”

Gauge Accuracy:

  • Analog: +/- 5% of MaxDigital/Analog: Digital Display +/- 1% of Full Scale,
  • Analog Gauge: +/- 5% of Max 2 Modes: OFF / REG (Regulate)
  • Maximum Vacuum: REG Mode @ Full Vacuum – 396 mmHg
  • Weight: 1.1 lbs (0.48 kg)
  • Dimensions: L: 3.7 in (9.4 cm) W: 2.8 in (7.1 cm) H: 5.2 in (13.2 cm)
  • 0-300mmHg
  • Hose Barb
  • Precision Medical Vacuum Regulators Manual

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
