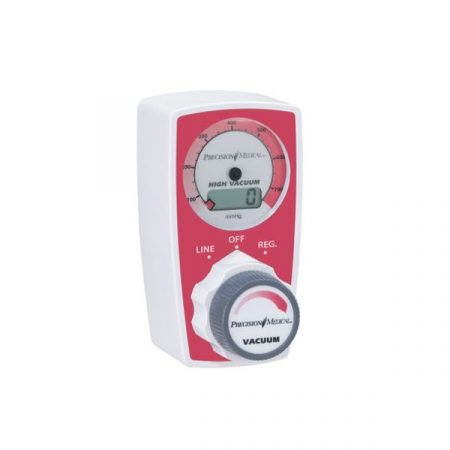

Precision Medical PM3600E Continuous Digital Vacuum Regulator
It’s Field Serviceable
The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of 6 easy-to-replace modular components.
Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.
As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.
The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.
The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.

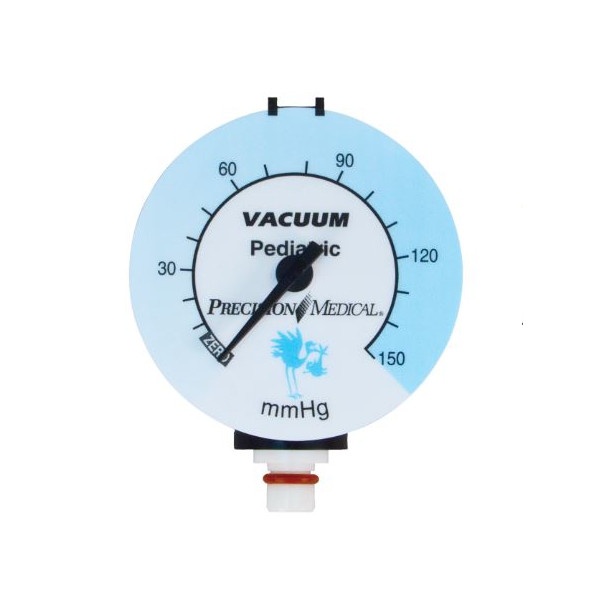

The Pediatric vacuum regulator is restricted to 170 mmHg (10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical’s Stork Symbol to identify the unit for pediatric applications.
Length: 3.7 in (9.4 cm)
Width: 2.8 in (7.1 cm)
Height: 5.2 in (13.2 cm)
Weight: 1.1 lbs (.50 kg)
Gauge Range: * Counterclockwise direction
PM3600:0 – 760 mmHg
*PM3600E:0 – 760 mmHg (0 – 100 kPa)
Analog: 5% of MAX
Digital Gauge: 1% of Full Scale
Analog Gauge: 5% of MAX within ref. Indicator
1/8 NPT Female
LINE– Provides maximum, continuous vacuum from the vacuum source
OFF– No Vacuum
REG.– (Regulated) provides an adjustable, continuous vacuum level
**MAXIMUM FLOW IS OBTAINED WITH A VACUUM SOURCE OF 25″ Hg (84.6 kPa)
PM3600: REG. Mode @ Full Vac – 760 mmHg (101 kPa)
Operating Environmental Limits:
0F to 122F (-18C to 50C)
Recommended Enviromental Operating Limits:
55F to 85F (13C to 29C)
Storage Environmental Limits:
Temperature Range:-4F to 140F (-20C to 60C)
Humidity:Max 95% Concondensing
3 Volt Lithium, AA (Digital Vacuum Gauge Models ONLY)
