SKU: 07702
$699.99
Available on backorder

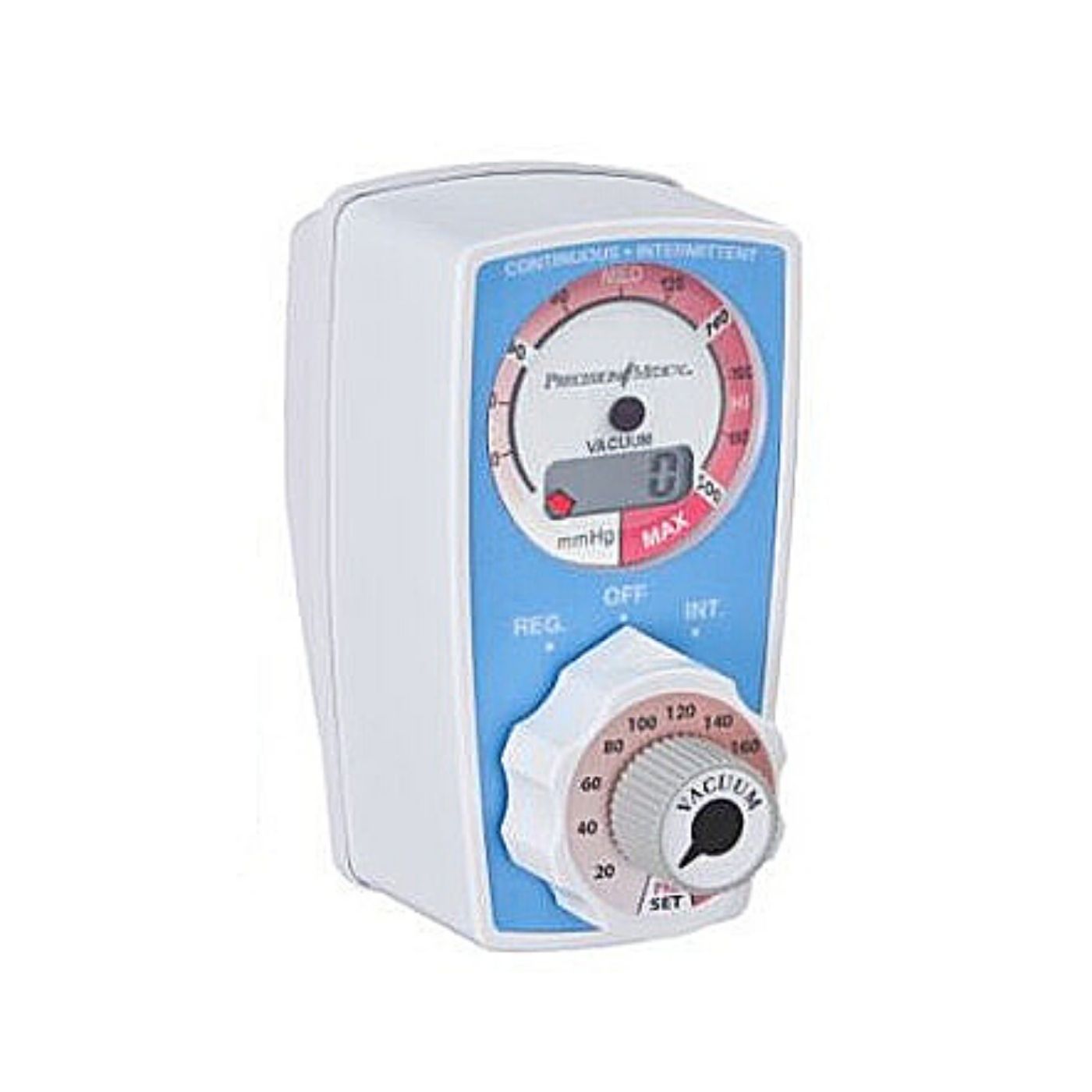

Build Your Custom HosePrecision PS3300DHV Continuous-Intermittent Digital Preset Vacuum Regulator
It’s Field Serviceable
The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of 6 easy-to-replace modular components.
It’s Durable
Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.
It’s Compact
As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.
It’s Sturdy
The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.
It’s User-Friendly
The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.
It’s Safe
The Pediatric vacuum regulator is restricted to 170 mmHg (10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical’s Stork Symbol to identify the unit for pediatric applications.
Dimensions: |
Length:Â 3.7 in (9.4 cm)
Width:Â 2.8 in (7.1 cm)
Height:Â 5.2 in (13.2 cm)
Weight:Â 1.1 lbs (.50 kg)
|
|||||||||
Gauge Range: * Counterclockwise direction | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
PM3300:Â 0 – 200 mmHg – Full Vacuum
*PM3300E:Â 0 – 200 mmHg (0 – 26 kPa)
*PM3300EHV:Â 0 – 300 mmHg (0 – 40 kPa)
PM3300HV:Â 0 – 300 mmHg – Max Vacuum
|
PM3400:Â 0 – 150 mmHg
*PM3400E:Â 0 – 150 mmHg (0 – 20 kPa)
* Counterclockwise direction*
|
|||||||||
Gauge Accuracy: |
Analog:Â +/- 5% of MAX
Digital Gauge: +/- 1% of Full Scale
Analog Gauge: +/- 5% of MAX within ref. Indicator
|
|||||||||
Vacuum Ports: | 1/8 NPT Female | |||||||||
Modes: | ||||||||||
PM3300 & PM3400 Series: |
REG. – (Regulated) provides an adjustable, continuous vacuum level
OFFÂ – No Vacuum
INT. – (Intermittent) provides an adjustable vacuum level that cycles between ON and OFF
|
|||||||||
|
||||||||||
MAXIMUM VACUUM: |
PM3300:Â REG. Mode @ Full Vac – 396 mmHg (53 kPa)
PM3400:Â Restricted to 170 mmHg (23 kPa) +/- 10 mmHg (1.3 kPa)
|
|||||||||
INTERMITTENT CYCLE TIME: | Factory set at sixteen (16) seconds ON and eight (8) seconds OFF (Reference only) | |||||||||
Operating Environmental Limits: | 0°F to 122°F (-18°C to 50°C) | |||||||||
Recommended Environmental Operating Limits: | 55°F to 85°F (13°C to 29°C) | |||||||||
Storage Environmental Limits: |
Temperature Range: -4°F to 140°F (-20°C to 60°C)
Humidity:Â Max 95% Concondensing
|
|||||||||
Battery: | 3 Volt Lithium, ½ AA (Digital Vacuum Gauge Models ONLY) |
*Specifications are subject to change without prior notice.
10 Year Limited Warranty
PRESET VACUUM REGULATORS MANUAL
Weight | 1 lb |
---|---|
Dimensions | 10 × 8 × 6 in |
Manufacturer | Precision Medical, Inc. |
Manufacturer Part Number | PS3300DHV |
Condition | New |
