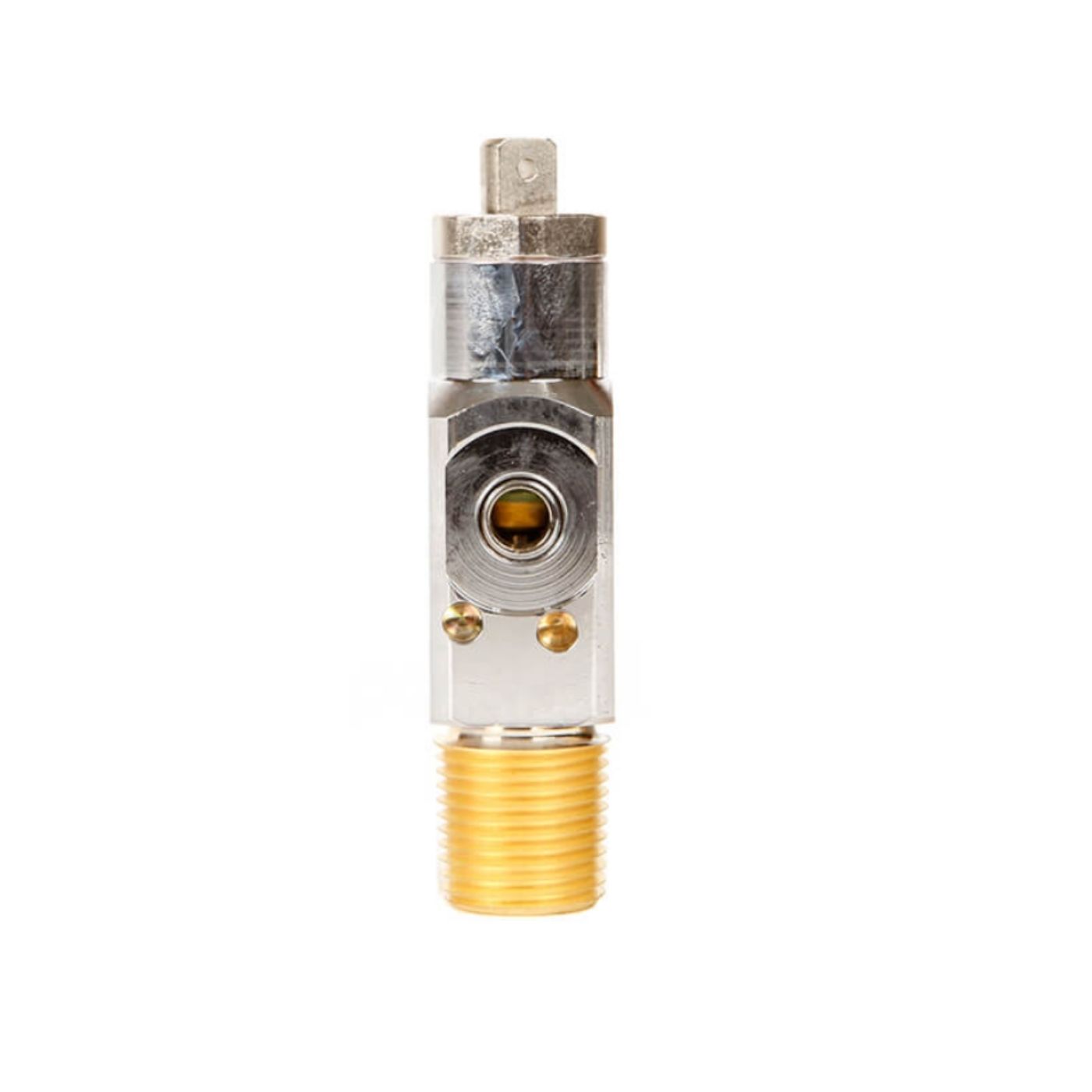

Sherwood CGA-950 Post Valve

Sherwood CGA-950 Post Valve

This Sherwood breathing air valve is made from heavy-duty forged brass and is specifically designed for use with breathing air in steel cylinders. This breathing air valve has a CGA950 valve outlet with a 1/2″ NGT inlet and safety (burst disk).

• Heavy-duty forged brass body for durability and high pressure
• Precisely machined internal components meet the most stringent international valve performance standards
• Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body

VALVE FEATURES

• CGA950 standard outlet
• 3360 PSI
• 1/2″ NGT inlet
• Automated assembly and testing processes ensure exceptional quality
• 100% helium leak tested
• Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
• Direct-drive stem design with optimized O-ring (GV) or double O-ring (GVHM) seal reduces friction and operates at exceptionally low torque levels
• Tapped for dip tube as required
