Concoa 3047021-84-000 Single Stage Regulator

SKU: 06001

$234.00

  • In Stock!

Available on backorder

Build Your Custom Hose

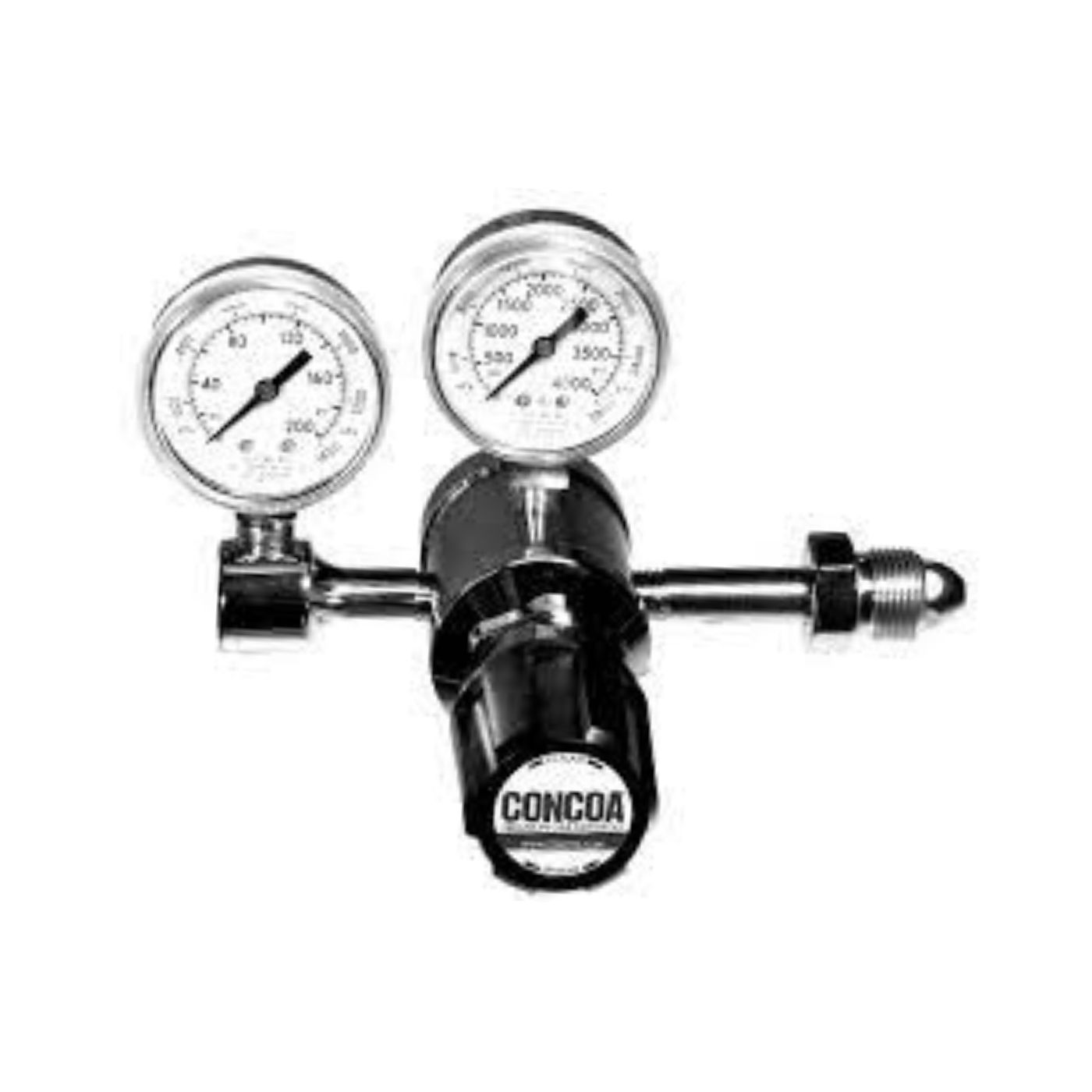

CONCOA 3047021-84-000 SINGLE STAGE REGULATOR

The 304 Series regulators are intended for secondary pressure control of non-corrosive, high purity or liquefied gases or as point of use pressure control in high purity gas distribution systems.

  • Single Stage, Chrome-Plated Brass Barstock Body
  • Three Port Configuration, 316L Stainless Steel Diaphragm
  • Increased serviceability and life, No inboard diffusion
  • Minimal purge requirements, Safeguard downstream equipment
  • Smooth pressure changes, Easily transported and integrated into system
  • Easy installation – Broad range of applications
  • Safe use with high pressure cylinders

SPECIFICATIONS:

Maximum Inlet Pressure 3000 PSIG (210 BAR)

Temperature Range -40°F to 140°F (-40°C to 60°C)

Gauges 2″ (53mm) diameter chrome-plated brass

Ports 1/4″ FPT

Helium Leak Integrity 1 x 10-8 scc/sec

Cv 0.1

Weight  1.7 lbs. (0.78 kg)

SKU 06001 Category Tag

Additional information

Weight 3 lbs
Dimensions 8 × 8 × 8 in
Manufacturer

CONCOA
Manufacturer Part Number

3047021-84-000
Condition

New
