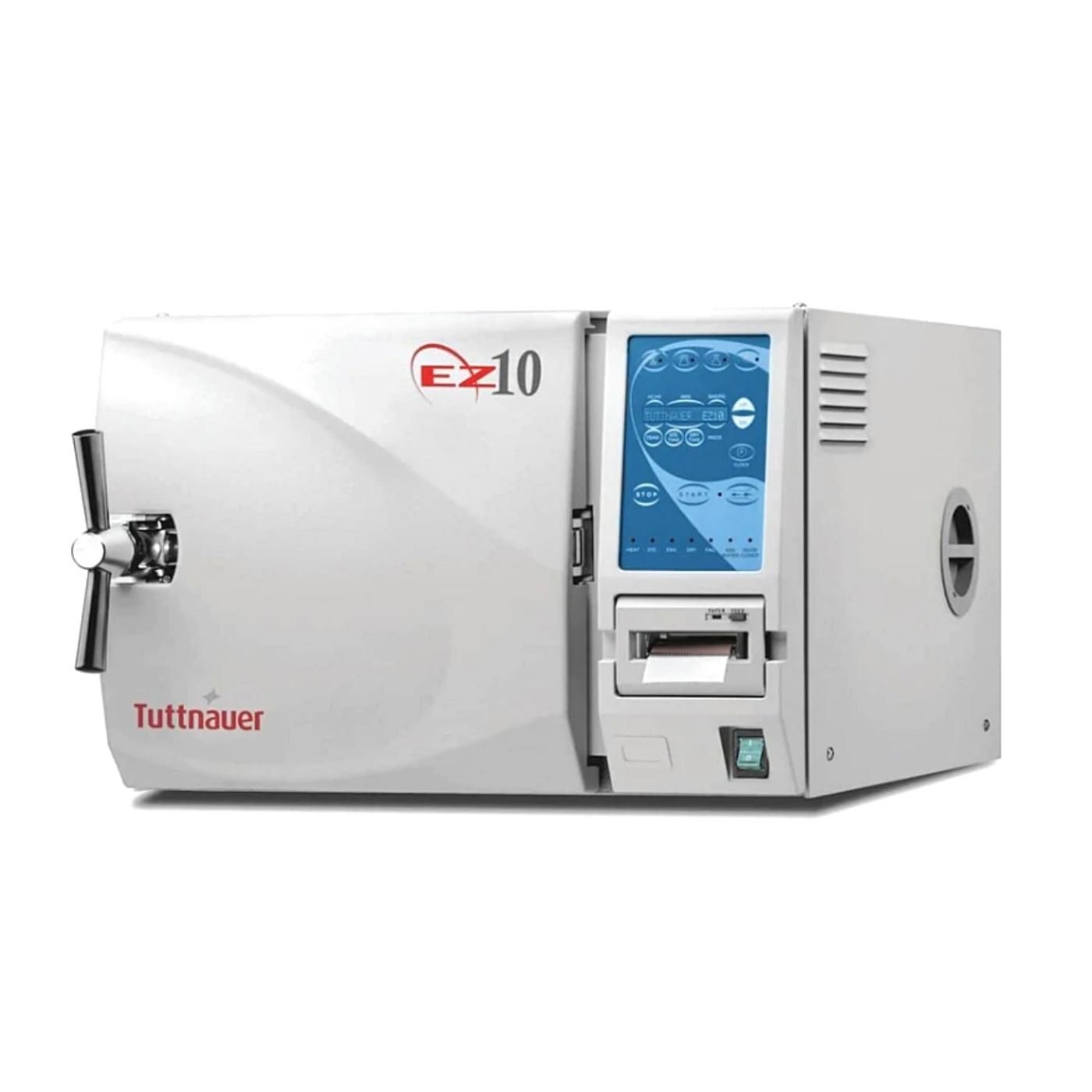

Tuttnauer EZK10 Fully Automatic Autoclave

The Tuttnauer EZK10 Fully Automatic Autoclave features the simplicity of one touch design to fulfill all of your sterilization and drying needs. The EZK10 Steam Autoclave will fill, sterilize, exhaust, and dry at the touch of a button.

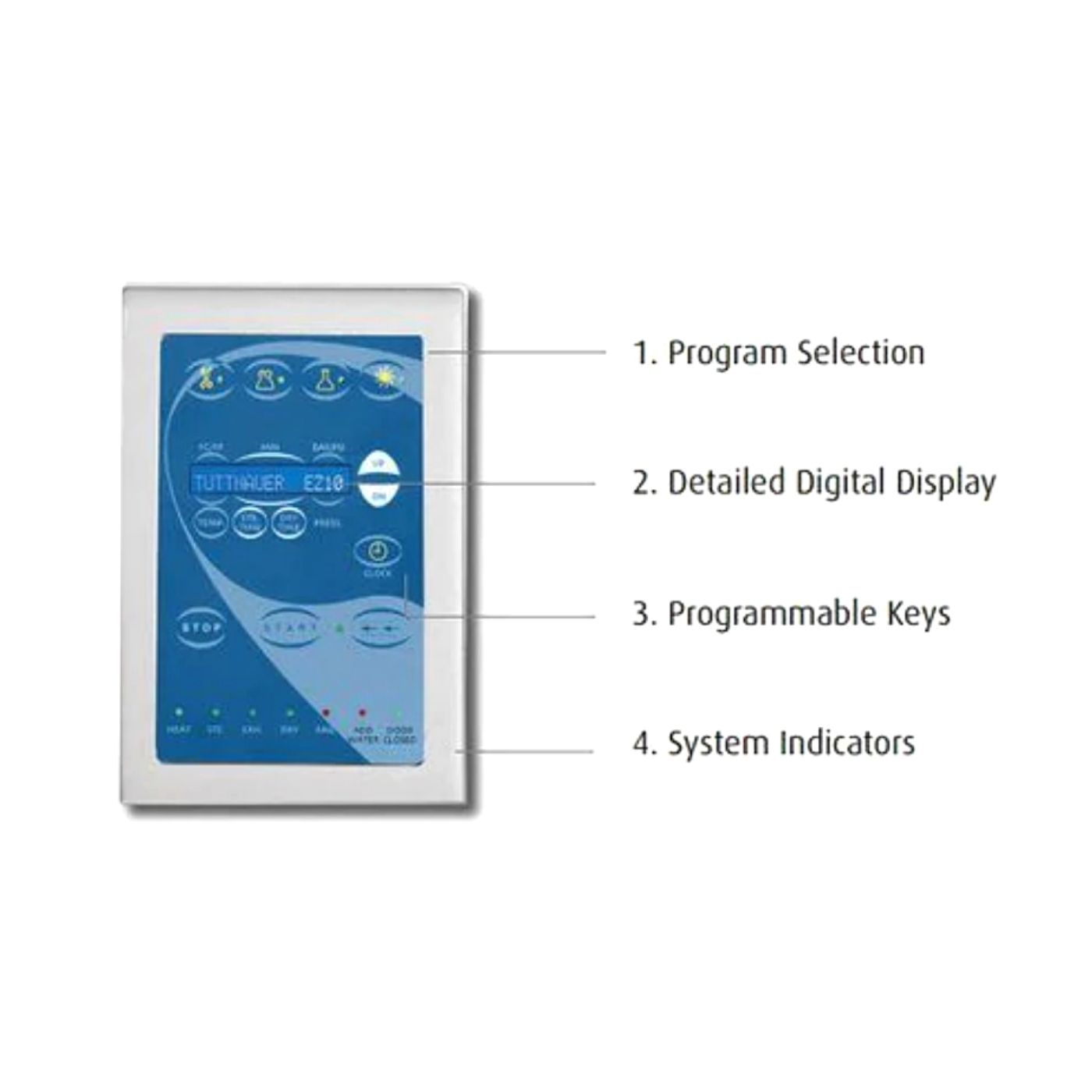

The EZK10’s brighter and easier to read panel helps it deliver full penetration of steam and post-vacuum drying.

This steam pressure autoclave is used in a range of settings, including active surgery center, medical practice, dental office, schools, veterinary facility, doctor’s clinic, or tattoo establishment.

• Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches.
• High efficiency air pump circulates hot air after the sterilization cycle for fast drying.
• Replaceable 0.2 μm HEPA filter.
• Pre-Loaded Cycles For: Unwrapped instruments, wrapped/packs, glassware, and additional drying cycle.
• All program parameters can be customized and stored.
• Automatic shut off at the end of both the sterilization and dry cycles.
• Audible and visual cycle interruption alert.
• Double safety locking device prevents door from opening while chamber is pressurized.
• Low water sensor prevents activation of sterilization cycle when there is insufficient water in the chamber or reservoir.
• Constant monitoring of temperature and pressure for sterilization.
• Power outage recovery system.
• Door design prevents steam from coming in contact with control panel.
• Drain valve is located on the front, allowing for quick and easy draining of water reservoir.
• International certifications.
• 510k clearance for dental handpieces.
• Internal Printer (optional) documents a detailed history of the date and time, temperature, pressure, as well as system messages and alerts.

• Chamber Dimensions: 10″ x 19″ (254 mm x 475 mm).
• Volume: 6 gallons (23 L).
• Overall Dimensions: 21.5″ (D) x 20″ (W) x 14.4″ (H) (545 mm x 510 mm x 365 mm).
• Door Swing: Right side hinge.
• Standard Cassettes: 3 full / 3 half.
  • Full Size: 8″ x 11″.
  • Half Size: 8″ x 5.5″.
• Tray Dimensions: 16.3″ (D) x 6.7″ (W) x 0.8″ (H) (415 mm x 170 mm x 20 mm).
• Number of Trays: 4.
• Standard Unwrapped Cycle Time:
  • Cold: 30 mins.
  • Hot: 14 mins.
• Voltage: 120 V.
• Frequency: 50/60 Hz.
• Power: 1400 W.
• Current: 12 A.
• Shipping Weight: 95 lb (43 kg).

WARRANTY:

• Factory New: 2 Years (Autoclave) / 10 Years (Chamber) – Parts and Labor
