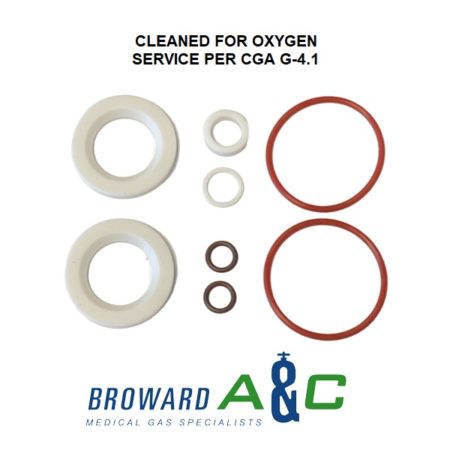

US Valve 43075-02 Oxygen Ball Valve Assembly Kit – 3/4″

US Valve 43075-02 Oxygen Ball Valve Assembly Rebuild Kit – 3/4″

• Compatible with US valve Part Number 41075-01
• This item will revive the functionality and pressure holding capabilities of US Valve Number 41075-01.

US Valve Medical Gas Ball Valves conform to NFPA 99–2018, section 5.1.4.3. Valves are full port, 1/4 turn, double seal, ball-type, three piece design with forged brass body and chrome-plated brass ball. They are designed for working pressures up to 600 psig and the body has Teflon® material ball seats and Teflon® material stem seals. Seats, seals, lubricants and valve materials are compatible with USP oxygen, nitrous oxide, medical air, carbon dioxide, helium, nitrogen and mixtures thereof at continuous pressure of up to 600 psig and vacuum service to 29″ Hg.

Medical gas ball valves are provided with type-K copper tube extensions for connections on the pipeline. They are serviceable in the line and supplied clean and prepared for oxygen service per CGA G-4.1. All rebuild kits are packaged in a polyethylene bag to keep them clean.

• Easy to Service
• USA Assembled and Tested
• Oxygen Cleaned and Packaged

US-Valve-Medical-Gas-Ball-Valve-Brochure
