The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components.
Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.
As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.
The case is made of strong plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.
The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.
The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical’s “Stork Symbol” to identify the unit for pediatric applications.
Gauge Reading: PM3300: 0-200 mmHg and “Max Vacuum” PM3300HV: 0-300 mmHg and “Max Vacuum”
Analog: +/- 5% of MaxDigital/Analog: Digital Display +/- 1% of Full Scale
Analog Gauge: +/- 5% of Max3 Modes: REG (Regulate) / OFF / INT (Intermittent Cycle)

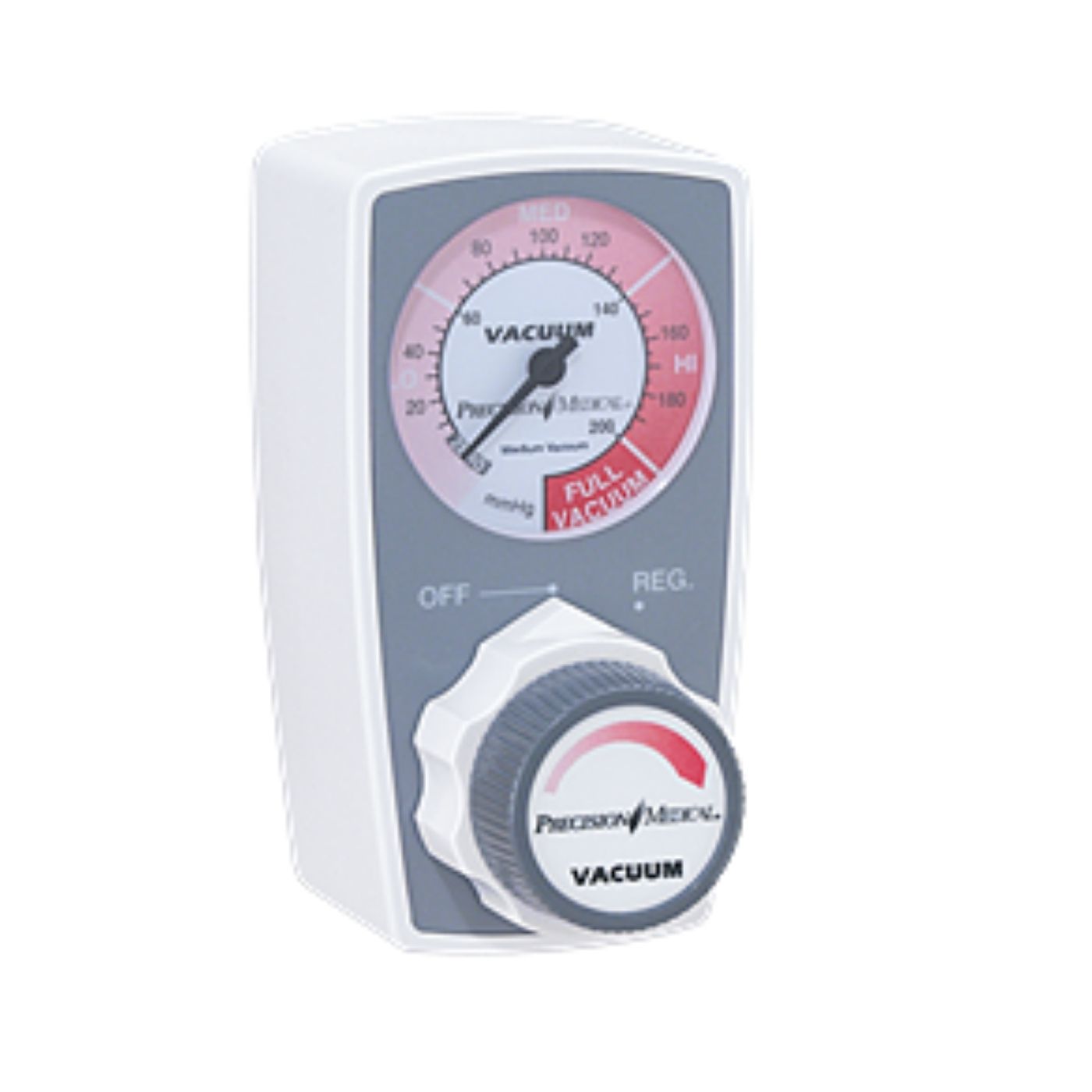

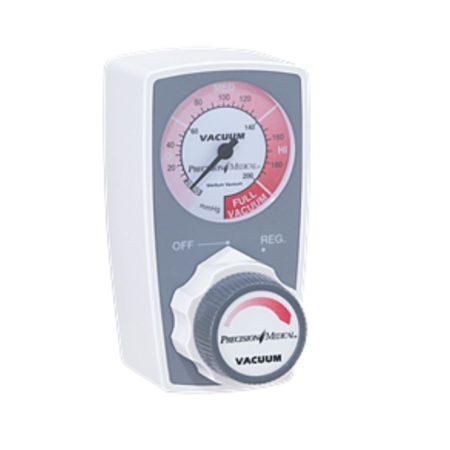

3300 Series CONTINUOUS & INTERMITTENT 3 MODE
PURITAN-BENNETT x DISS MALE WITH TAP
Maximum Vacuum: REG Mode @ Maximum Vacuum – 396 mmHg
Weight: 1.2 lbs (0.56 kg)
Dimensions: L: 4.4 in (11.2 cm) W: 2.8 in (7.1 cm) H: 5.3 in (13.4 cm)
Factory preset timing cycles set at 16 seconds On, 8 seconds Off
Fully adjustable, 2-to-1 ratio timing cycles
Modular components are attached to a cast metal back plate, simplifying service
Available in digital and analog gauges Low to high vacuum rates
