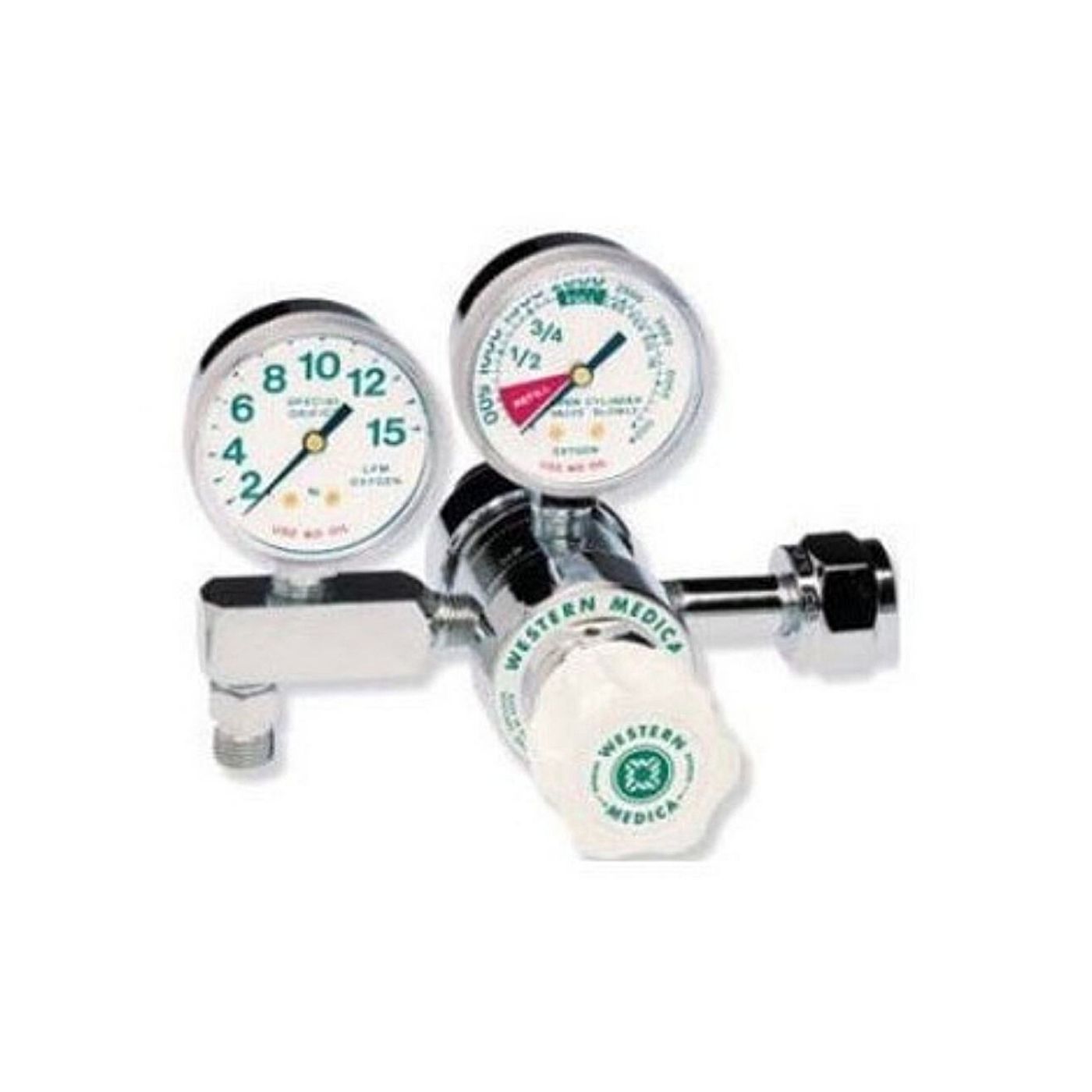

Western M2-540-15FG Two Stage 0-15 LPM Oxygen Regulator

SKU: 05115

Original price was: $643.43.Current price is: $489.75.

in stock

In stock (can be backordered)

Build Your Custom Hose

Western M2-540-15FG Two Stage 0-15 LPM Oxygen Regulator

FEATURES:

  • Two stage design for applications where flow control accuracy is critical such as calibration and testing.
  • First stage reduces high pressure to 170 psi; second stage reduces to provide greater accuracy at lower flow settings.
  • Inlet Connection: CGA 540
  • Outlet Connection: DISS O2 Male
  • Flow Range 0-15 LPM
  • Chrome-plated brass body with all brass high-pressure chamber
  • Maximum inlet pressure 3000 psi
  • Durable neoprene diaphragm
  • Internal reseating relief valve protects against over-pressurization
  • Sintered filter for additional safety and to extend regulator life
  • 2″ diameter gauges
  • 6-year limited warranty
  • Cleaned for Medical Oxygen Service

Additional information

Weight 5 lb
Dimensions 10 × 8 × 6 in
Manufacturer

Western

Manufacturer Part Number

M2-540-15FG

Condition

New
