Amico M-X-HB-PTS-N2O Braided Stainless Steel CGA 326 N2O Pigtail with CV 36″

Amico M-X-HB-PTS-N2O Braided Stainless Steel CGA 326 N2O Pigtail with CV 36″

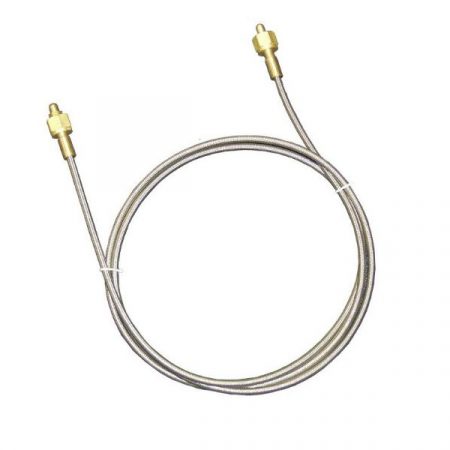

The Amico stainless steel pigtails have a core which consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid. The braid incorporates a type 304 full hard drawn stainless-steel wire. It consists of a 1/4″ nominal I.D.  The Amico stainless steel pigtails come with a check valve equipped to one of the ends.

Features:

• CGA 326 N2O Nut on Both Ends
• length 36″ (3′)
• Flow Check Valve (Includes a sticker that indicates the direction of the flow)
• Burst pressure rating at room temperature: 12,000 psig
• Maximum 3000 psig working pressure on tubing
• All pigtails 100% tested before shipping and labelled for gas service and pressure rating
• Cleaned for Medical Gas Service
• NFPA Approved and UL Listed

High Pressure Stainless Pigtail Specifications Sheet
