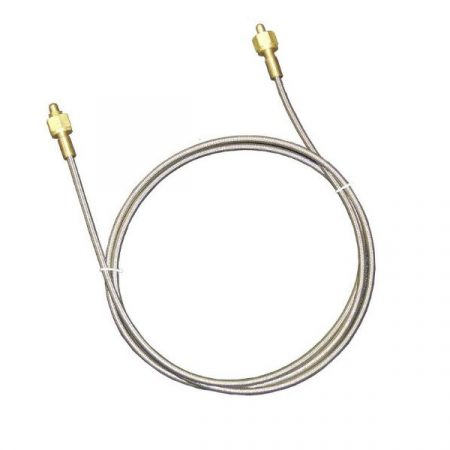

Amico M-X-HB-PTS-NIT Braided Stainless Steel CGA 580 Nitrogen Pigtail with CV 36″

Amico M-X-HB-PTS-NIT High Pressure Stainless Pigtail Nitrogen

The Amico stainless steel pigtails have a core which consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid. The braid incorporates a type 304 full hard drawn stainless steel wire. It consists of a 1/4″ nominal I.D.  The Amico stainless steel pigtails come with a check valve equipped to one of the ends.

Features:

• Burst pressure rating at room temperature: 12,000 psig
• Maximum 3000 psig working pressure on tubing
• All pigtails 100% tested before shipping and labelled for gas service and pressure rating
• Standard length 36″ (3′), length is customizable
• Includes a sticker that indicates the direction of the flow

HIGH PRESSURE STAINLESS PIGTAIL SPEC SHEET
