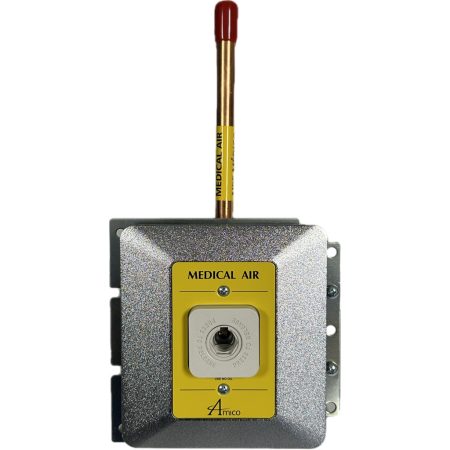

Amico O-PBWAL-U-AIR Medical Air Puritan-Bennett Complete Wall Outlet Assembly

Amico O-PBWAL-U-AIR Medical Air Puritan-Bennett Complete Wall Outlet Assembly

The Amico Medical Air Wall Outlet O-PBWAL-U-AIR allows for a mounting plate thickness adjustment of up to 1 inch, and a rough-in mount which allows for Quick Disconnects or DISS Front Adapters. A 360 degree swivel inlet pipe allows for quick and convenient installation. The outlet is manufactured with a Type K copper inlet pipe stub that is silver brazed to the body of the outlet.

• Medical Air Puritan-Bennett Connection
• 1/2″ (12.7mm) O.D. (3/8″ [9.5 mm] nominal) type ”K” copper pipe rotates 360 deg. for entry from any angle
• 200 PSI Max Pressure Rated
• Cleaned for Medical Air Service
• Flow rate exceeds the requirements of NFPA and CSA
• Accepts quick connect gas specific adapters, or DISS Adapters depending on which front assembly is ordered
• 100% Pressure testing of each outlet and cleaned for medical gas service
• Indexed to eliminate interchangeability of gas services
• Up to 1″ (25 mm) wall thickness adjustment
• Universal rough-in assembly to accept Quick Connects or DISS front adapters. (Can be interchanged at any time)
• Outlets are also available for M.R.I. use

Amico ACP Medical Gas Outlets Manual
