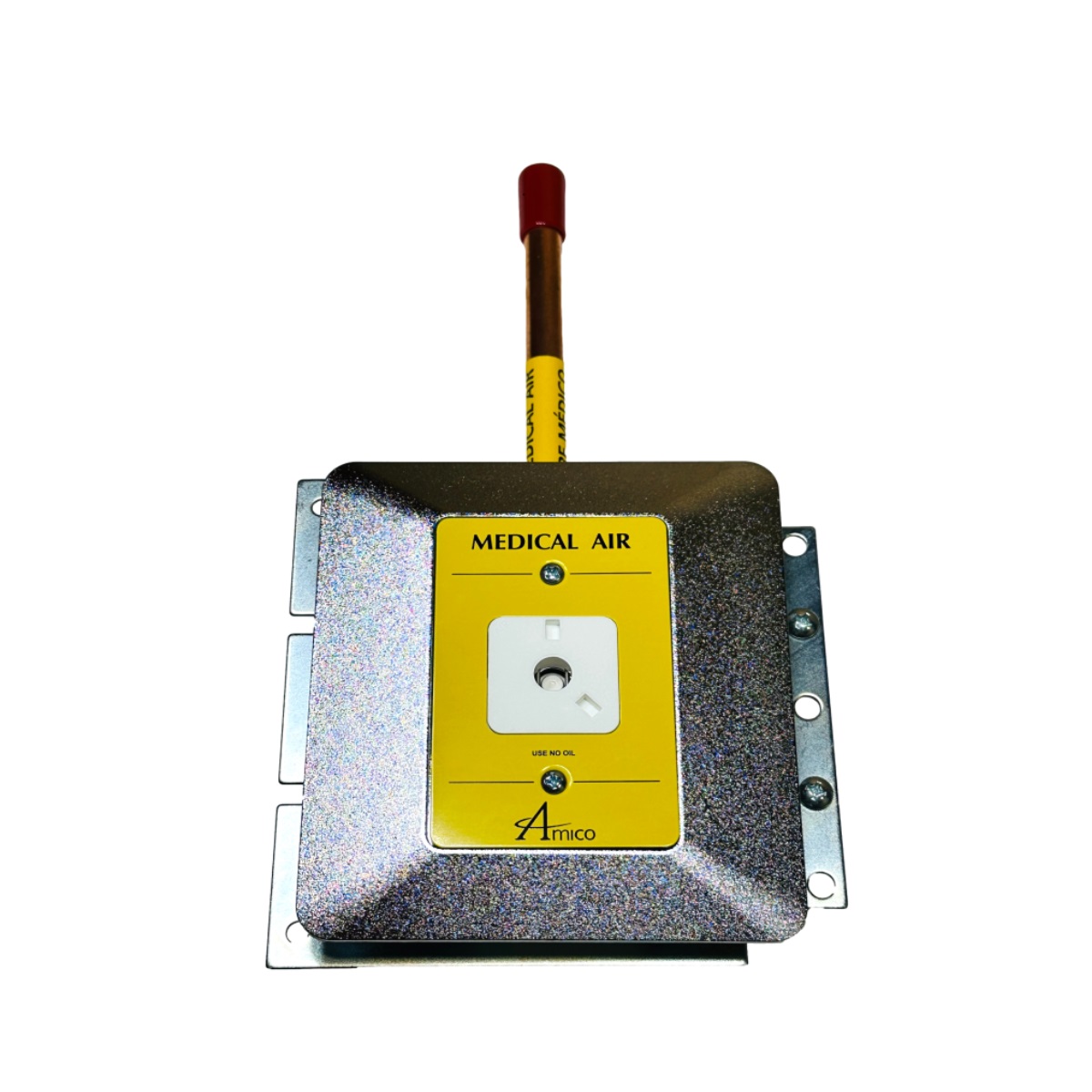

Amico O-QDWAL-U-AIR Medical Air Ohmeda Complete Wall Outlet Assembly
Outlets are manufactured with a 7-3/4″ (197 mm) length type K 1/2″ (12.7 mm) outside diameter (3/8″ [9.5 mm] nominal) size copper inlet pipe stub, which is silver brazed to the outlet body. The body is made of 1-5/16″ (33 mm) diameter, one piece brass construction. For positive pressure gas services, the outlet should be equipped with a primary and secondary check valve and the secondary check valve should be rated at a maximum of 200 psi (1,379 kPa) in the event the primary check valve is removed for maintenance. Outlet bodies are gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.
A large color coded front plate is used for ease of gas identification and aesthetic appeal. A one piece chromed fascia plate frames the outlet. With the back rough-in mounted, the outlet shall adjust from 3/8″ (10 mm) to 1″ (25 mm) variation in wall thickness. The outlets are modular design and include a gas specific 1.6 mm (16 ga.) steel mounting plate designed to permit onsite ganging of multiple outlets, in any order, on 5″ (127 mm) spacing.
All outlets are cleaned and degreased for medical gas service, factory assembled and tested.
All M.R.I. outlets are manufactured from nonferrous materials. The outlets are UL Listed and ETL Listed.
Flow rate exceeds the requirements of NFPA and CSA
Accepts only Ohmeda Diamond gas specific adapters
100% Pressure testing of each outlet and cleaned for medical gas service
Indexed to eliminate interchangeability of gas services
Up to 1″ (25 mm) wall thickness adjustment
360 degree Swivel Inlet Pipe for easy installation
Universal Rough-In Assembly to accept Quick Disconnects or DISS Front Adapters (can be interchanged at any time)
