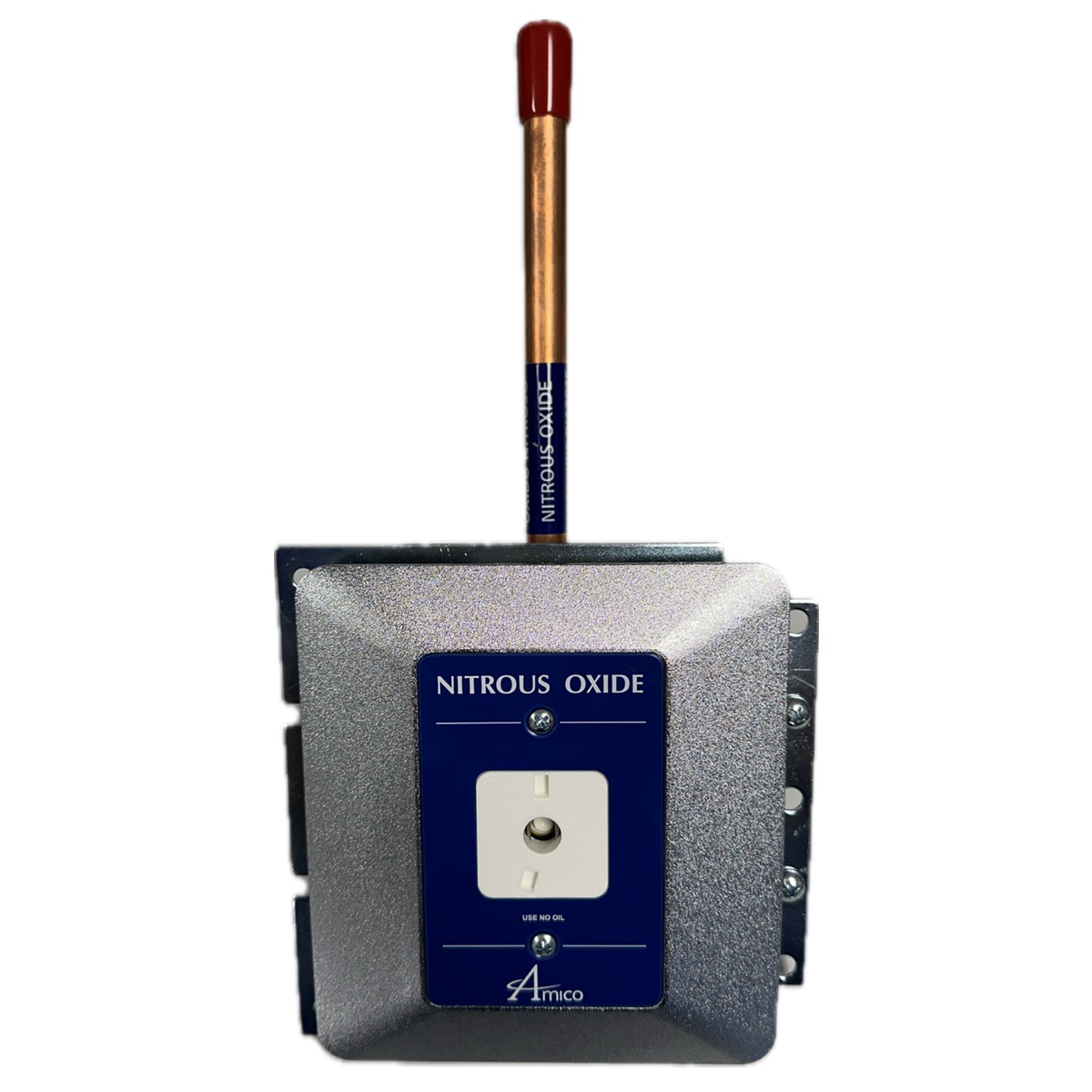

Amico O-QDWAL-U-N2O Medical N2O Ohmeda Complete Wall Outlet Assembly

Amico O-QDWAL-U-N2O Medical N2O Ohmeda Complete Wall Outlet Assembly

The Amico outlet continues to provide worry-free and dependable service. Aesthetically pleasing in any patient room, this DISS connection Amico gas outlet provides a full color fascia for easy gas identification during those “critical” moments. Amico’s outlets exceed flow rate requirements set by NFPA/CSA. All outlets are 100% cleaned and tested in order to ensure quality and are backed by our industry leading 5 year Warranty. We also have other configurations available to match your requirements.

• Medical N2O Ohmeda Connection
• 1/2″ (12.7mm) O.D. (3/8″ [9.5 mm] nominal) type ”K” copper pipe rotates 360 deg. for entry from any angle
• 200 PSI Max Pressure Rated
• Cleaned for Medical N2O Service
• Flow rate exceeds the requirements of NFPA and CSA
• Accepts quick connect gas specific adapters, or DISS Adapters depending on which front assembly is ordered
• 100% Pressure testing of each outlet and cleaned for medical gas service
• Indexed to eliminate interchangeability of gas services
• Up to 1″ (25 mm) wall thickness adjustment
• Universal rough-in assembly to accept Quick Connects or DISS front adapters. (Can be interchanged at any time)
• Outlets are also available for M.R.I. use
