SKU: 15104

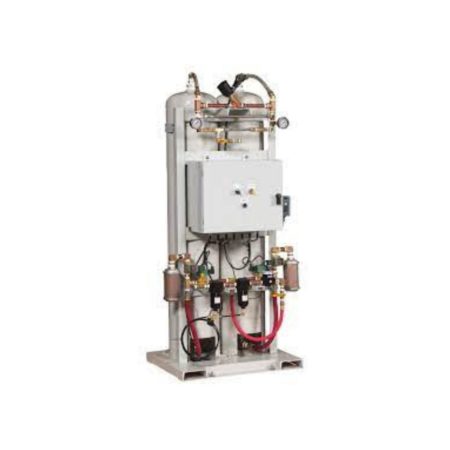

Airsep AS-E Medical O2 Generator with HMI NEMA 4 Touchscreen and O2 Concentration Monitor
Price range: $19,409.00 through $27,865.00
AS-E Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production. AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).
Features:
Product Characteristics:
| Product Flow | 160-195 SCFH |
| Product Pressure | 45-65 PSI |
| Product Concentration | 93% |
| Product Dew Point | -100°F (-73°C) |
| Dimensions (W x D x H) | 33 x 27 x 68 in (84 x 69 x 173 cm) |
| Weight | 721 lbs. (327 kg) |
| Sieve Weight | 260 lbs. |
| Physical Connections
Compressed Air Inlet Product Gas Outlet |
1/4″ FNPT 3/8″ FNPT |
| Ambient Operating Conditions | Put Oxygen Generator in well-ventilated area that is protected from weather elements.
Temperature should remain between 40°F – 104°F (4°C – 40°C) |
| Feed Air Requirements | Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
Pressure: 90 psig (621 kPa) minimum Temperature: 122°F (50°C) maximum |
| Control Power Requirements | 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A |
Typical Applications:
Manufacturing
Medical
Environmental
Glass
Additional
| Weight | 721 lb |
|---|---|
| Dimensions | 33 × 27 × 68 in |
| Manufacturer | Airsep |
| Manufacturer Part Number | AS103-7 |
| Condition | New |
