Amico V-RVD-D-080P-TS-N-030-46063-N 3 Hp Duplex Vertical Tank Mount Oil-Less Rotary Vane Medical Vacuum Pump System NFPA

SKU: 17002





$16,392.00

Available on backorder

Build Your Custom Hose

AMICO V-RVD-D-080P-TS-N-030-46063-N 3 Hp Duplex Vertical Tank Mount Oil-Less Rotary Vane Medical Vacuum Pump System NFPA

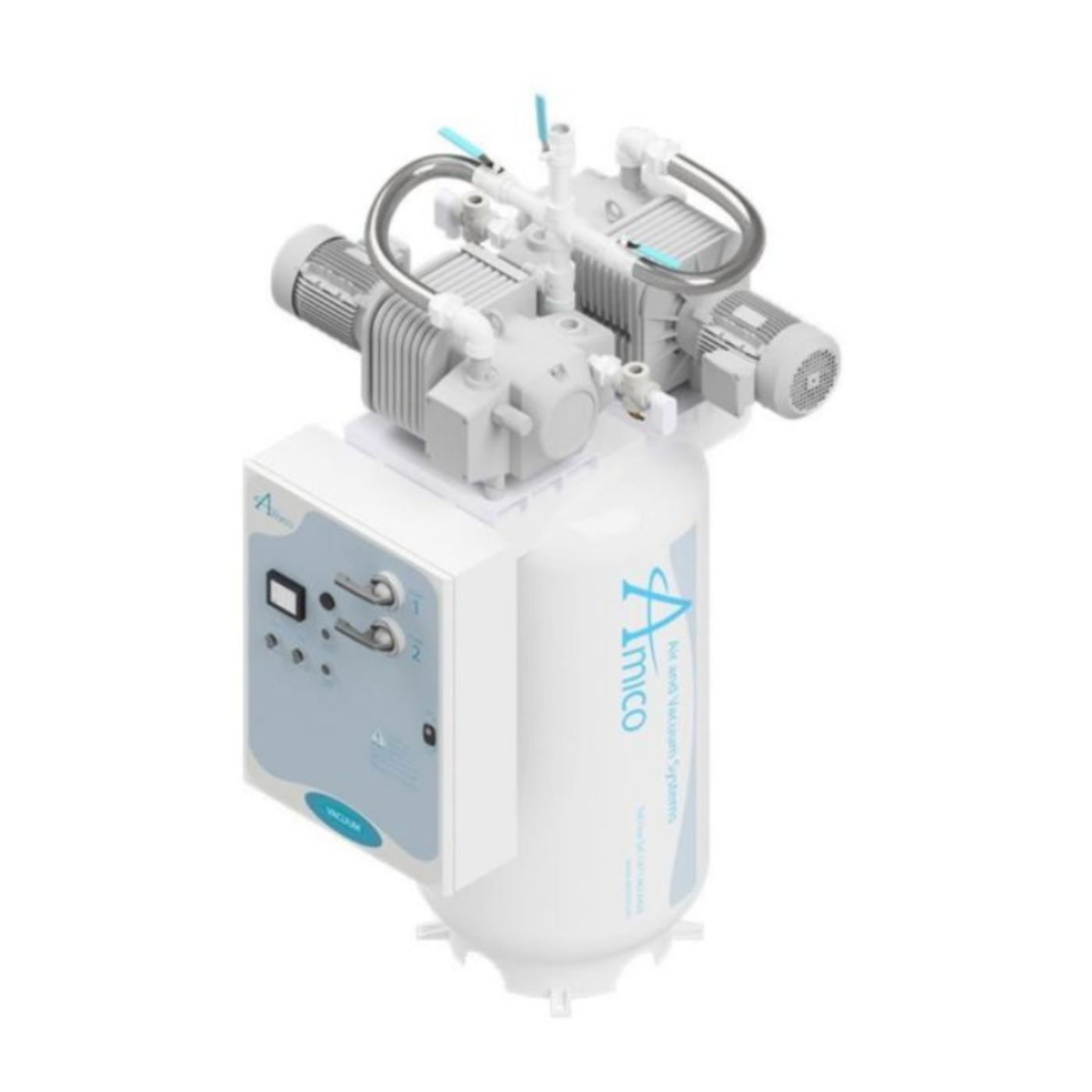

Available for vacuums ranging between 1.2 to 7.5 HP, the vertical tank mount configuration minimizes installation cost and maximizes the availability of floor space. The duplex vertical tank mount configuration consists of two pumps mounted on top of the receiver tank.

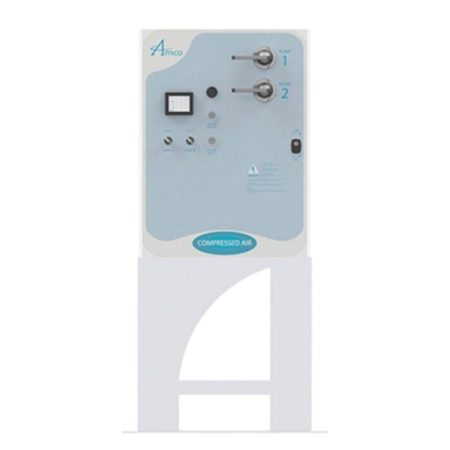

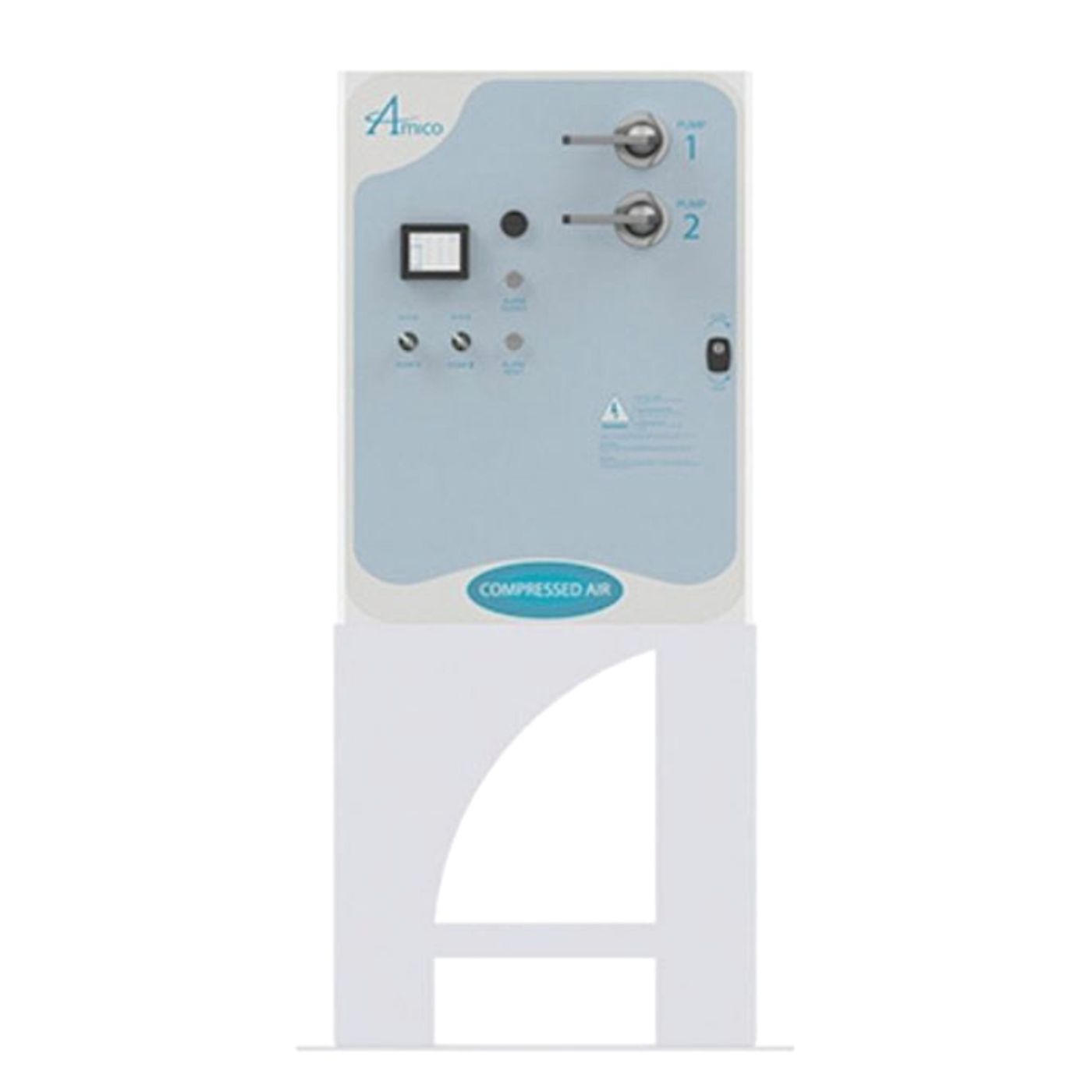

Control Panel

  • UL listed control panel in a NEMA 12 enclosure with a 5.7″ Touch Screen Display
  • Manual reset for all alarms
  • All control and alarm functions shall remain energized while any pump in the system remains electrically online
  • Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
  • Lag pump will start automatically should the lead pump fail to operate

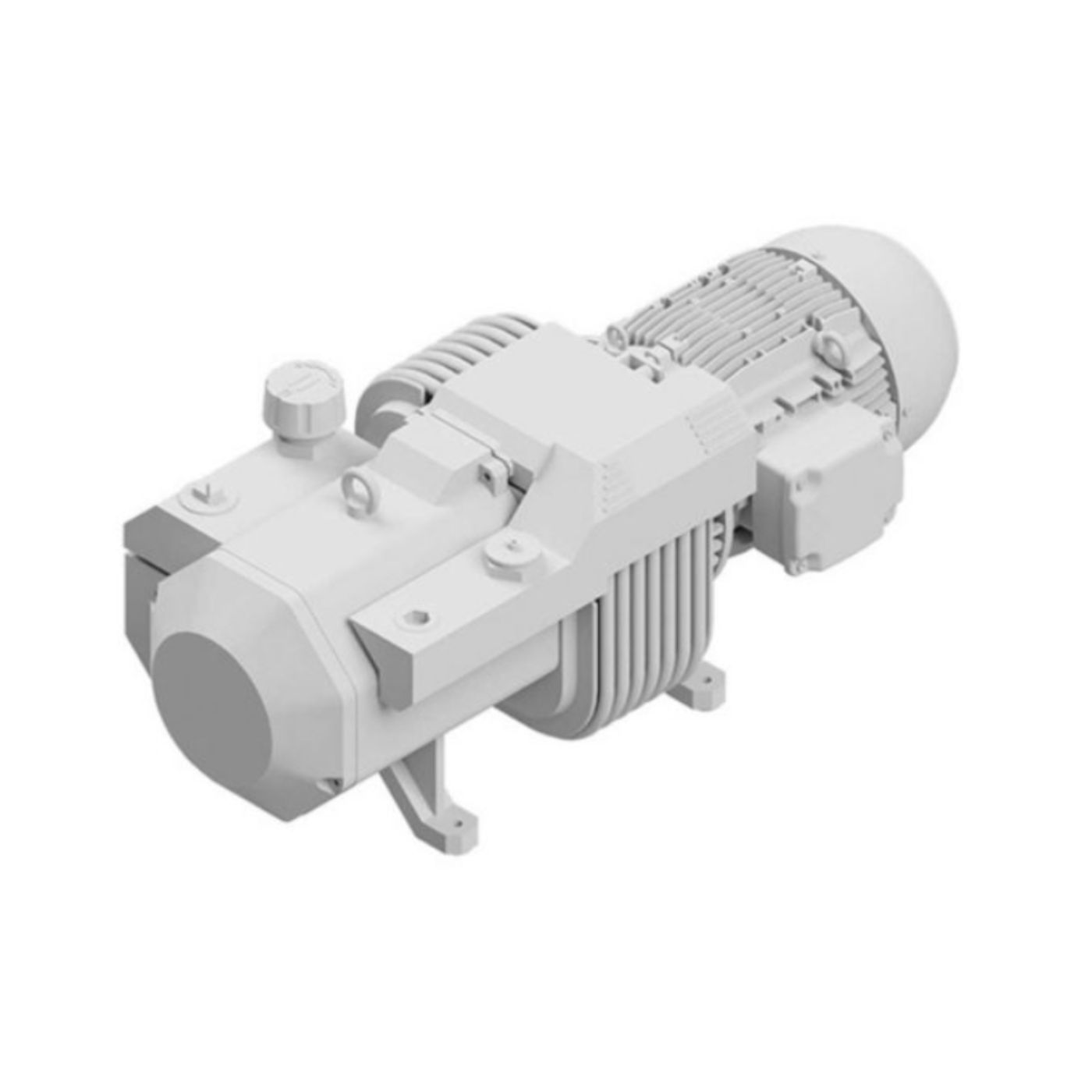

Vacuum Pump

  • Oil-less Rotary Vane type and operates completely dry with air cooled design
  • Equipped with self-lubricating carbon or graphite vanes with no water requirements
  • Permanently lubricated and sealed
  • Equipped with a built-in anti-suck back valve mounted at the pump inlet
  • Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor
  • Means of removal of the vacuum pump for service or replacement without interruption to the system

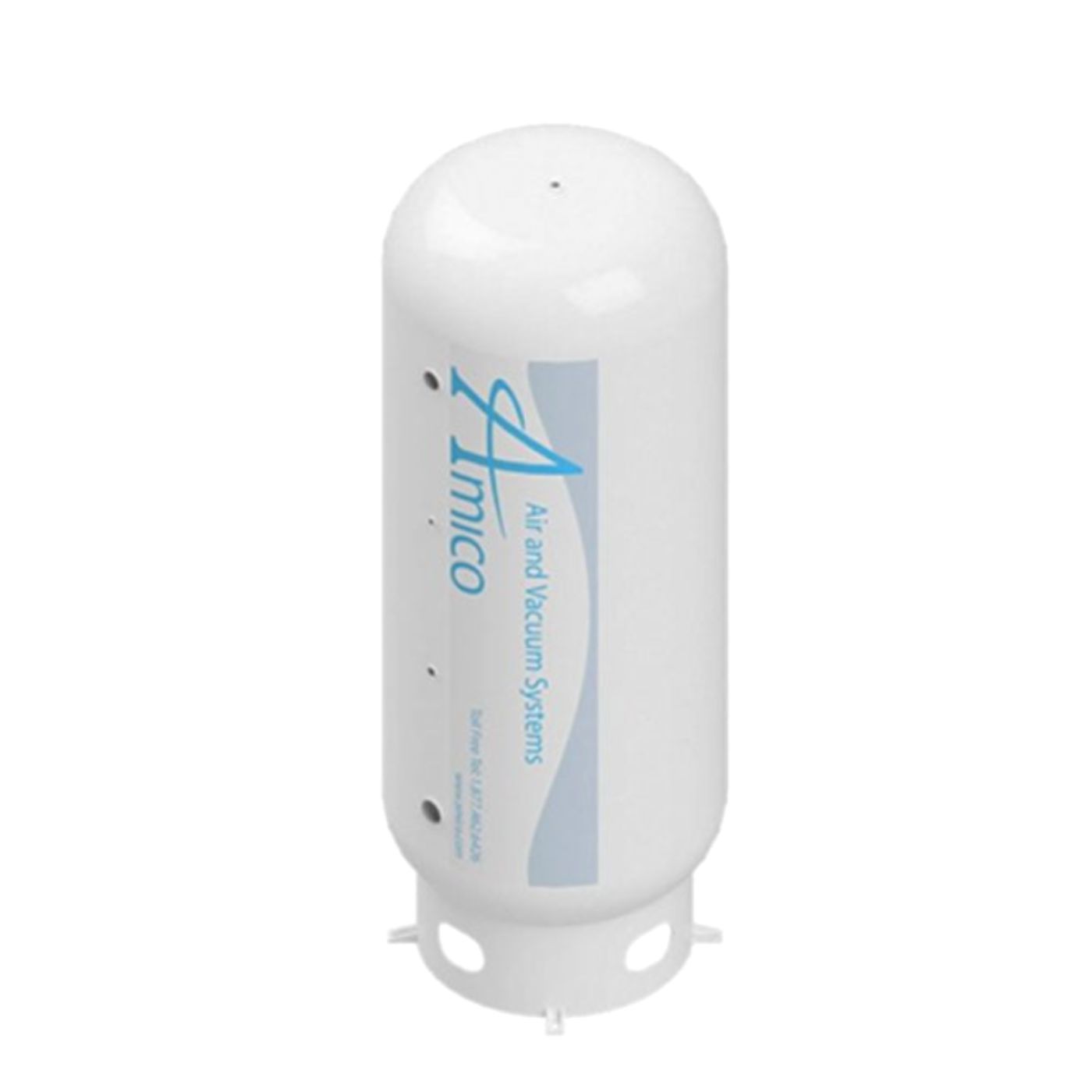

Air Receiver

  • ASME certified with provisions for isolating the receiver without interruption of the vacuum service
  • Rated for full vacuum service with a minimum 200 psig design pressure
  • Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

General Features

  • Vacuum pump operates completely dry with air cooled design
  • Pump is equipped with self-lubricating carbon or graphite vanes with no water requirements
  • UL listed control panel in a NEMA 12 enclosure with a 5.7″ Touch Screen Display
  • Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
  • Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Vacuum System Accessories

  • An inlet air filter (optional)
  • Flexible connectors
  • Isolation valve
  • Check valve
  • High discharge temperature sensor (with visual indicator)

If an item appears on backorder, place your order and we’ll notify you in a timely manner when to expect delivery. And we’ll ship your item directly from the manufacturer.

Additional information

Weight 1100 lbs
Dimensions 62 × 41 × 78 in
Manufacturer

Amico

Manufacturer Part Number

V-RVD-D-080P-TS-N-030-46063-N

Condition

New
