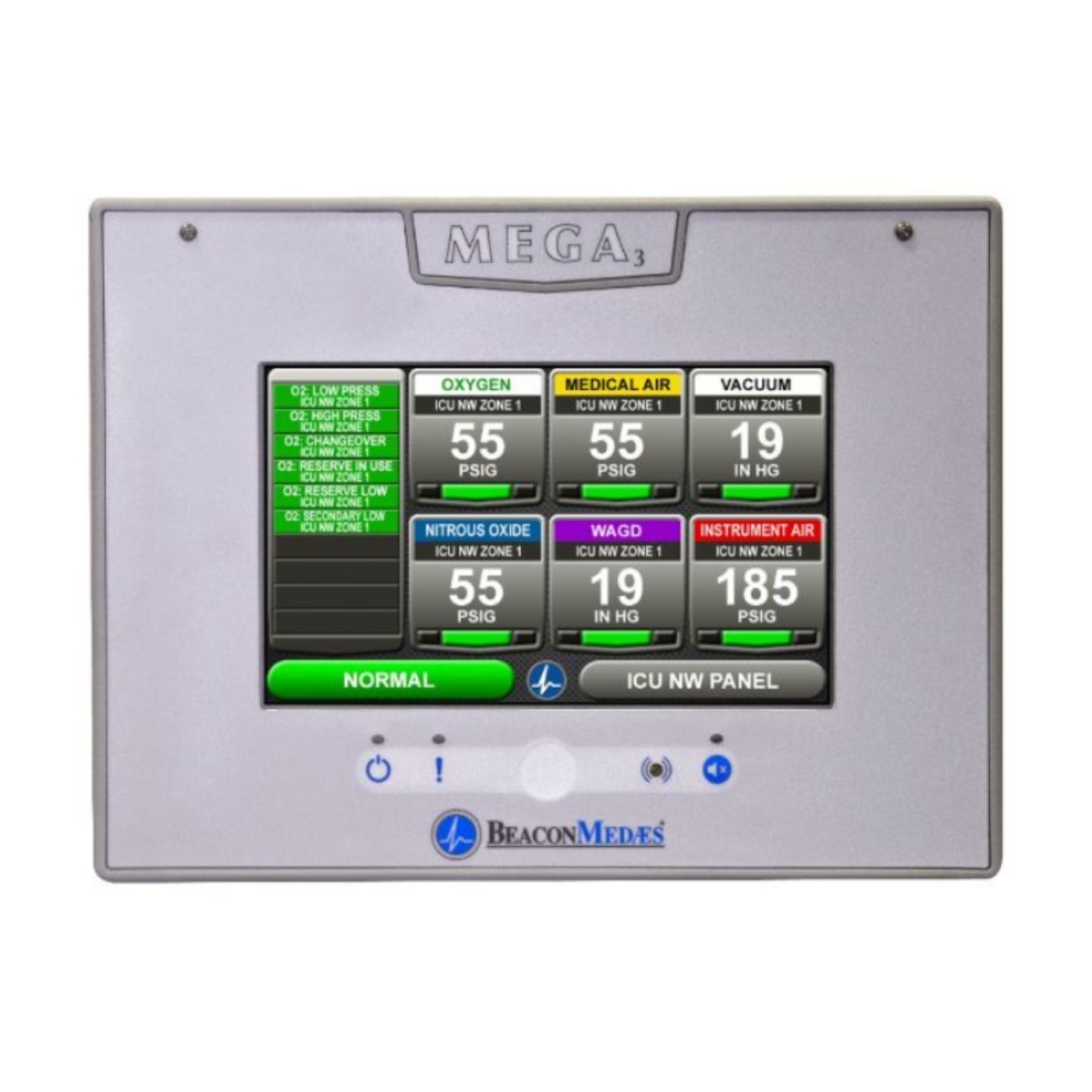

Beacon Medaes M3-C10-O MEGA 3 Combination Alarm 10 Inputs with 1 gas O2

Beacon Medaes M3-C10-O MEGA 3 Combination Alarm 10 Inputs with 1 gas O2

The MEGA3™ medical gas notification alarms provide master and area alarm signals.

Using the colorful 10.2” touch screen LCD display, users can adjust screen brightness and gas badge color. The LCD touch screen display allows for all alarm programming and set up on site without the use of tools.

Mega3 alarms can also monitor any device equipped with 4-20 mA outputs. It is now possible to measure flows, levels, concentrations, humidity, and other parameters and bring those readings right to the nearest alarm panel or any network-enabled device.

Small gas sensors with heartbeat diagnostics that let you know the sensor is operating correctly, can be mounted both locally (inside the alarm) or remotely (inside a BeaconMedaes Zone Valve Box or directly into the medical gas pipeline).

In addition, one can perform a full diagnostic self-test of the alarm to check the alarm signals (green and red), the LED indicators on the front panel, the audible horn, and the displays of all the alarm set points. Test can be initiated by using the user-friendly touch screen controls.

• Combination Alarm Panel
• 10-Input Signals
• 1 Module for Oxygen ONLY (up to 5 more gases can be added at an additional cost)
