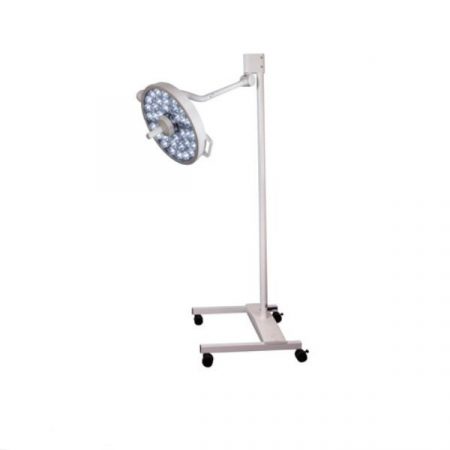

Bovie XLD-FM MI 1000 Portable Floor Surgical Light

SKU: 08077

Call for Price

Bovie XLD-FM MI 1000 Portable Floor Surgical Light

The Bovie XLD-FM MI 1000 Portable Floor Surgical Light is the first in the cutting-edge MI LED Series offered by Bovie. The light emits very low heat with an output rating of 100,000 lux (10,000 foot candles) at 4,300 degrees Kelvin color temperature. Engineered with Green technology, the MI 1000 uses significantly less electricity than standard halogen lights. The long-life LED lights are rated at 50,000 hours virtually eliminating the need for inconvenient bulb changes. Five intensity outputs are available and are controlled using the five-stage dimming and on/off switch located on the sterilizable handle. The MI 1000 LED is available in a variety of mounting styles and all lighting equipment (excluding parts) is backed by a three (3) year limited warranty.

Optical Specifications:
Number of LEDs: 36
Output: 100,000 Lux @ 39.4 inches (1m)
CCT: 4,300 degrees K
CRI: 97
Focal Length: 39.4 inches (1m)
Dimming Levels: 5
Dimming Percentages: 100%, 87%, 75%, 62%, 50%
Endo Mode: Yes
Light Field (d10):  8.3  ( 209mm)
Light Field (d50):  4.9  ( 124mm)
Depth of Illumination:  24  (610mm)
Illuminance (one mask): 27.2%
Illuminance (two masks): 37.2%
Illuminance (tube with one mask): 24.3%
Illuminance (tube with two masks): 40.3%
Irradiance: 295 W/m

Electrical Specifications:
Supply Circuit: 100- 240 VAC, 50/60Hz
Fuse Rating: 2.5 Amp/250VAC
Power Supply power handling capacity: 100W
Light Head power consumption: 54W@24VDC

Environmental Specifications:
Ambient/Operating temperature: 41 F to 104 F (5 C to 40 C)
Storage Temperature: -4 F to 122 F (-20 C to 50 C)
Humidity: 10 – 90% Relative Humidity
Pressure: 100kPA (@<2k meters)

Mechanical Specifications:
Light Head Weight: 14.6 lbs (6.6 kg)
Light Head Dimensions:  18  ( 457mm) 4  H (102mm)
Arm Assembly Weight: Single = 48.3 lbs (21.9 kg)
Arm Assembly Weight: Dual = 77.1 lbs (35.0 kg)
Articulating Arm Vertical Movement: 20  Up, -60  Down
Articulating Arm Horizontal Movement:  540
Articulating Arm/Yoke Interface:  540
Yoke/Light Head Interface:  300



CLICK HERE FOR MI-1000 BROCHURE

CLICK HERE FOR MI-1000 USER GUIDE

CLICK HERE FOR MI-1000 PRE-INSTALL

CLICK HERE FOR MI-1000 CUTSHEET

CLICK HERE FOR MI-1000 SPECS



* Made in the USA

*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A&C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to orders@medicalgassupplier.com

Additional information

Manufacturer

Bovie

Manufacturer Part Number

XLD-FM

Condition

New
