Bovie XLDS-S2VC System Two Light HD Video Arm

SKU: 07849

Call for Price

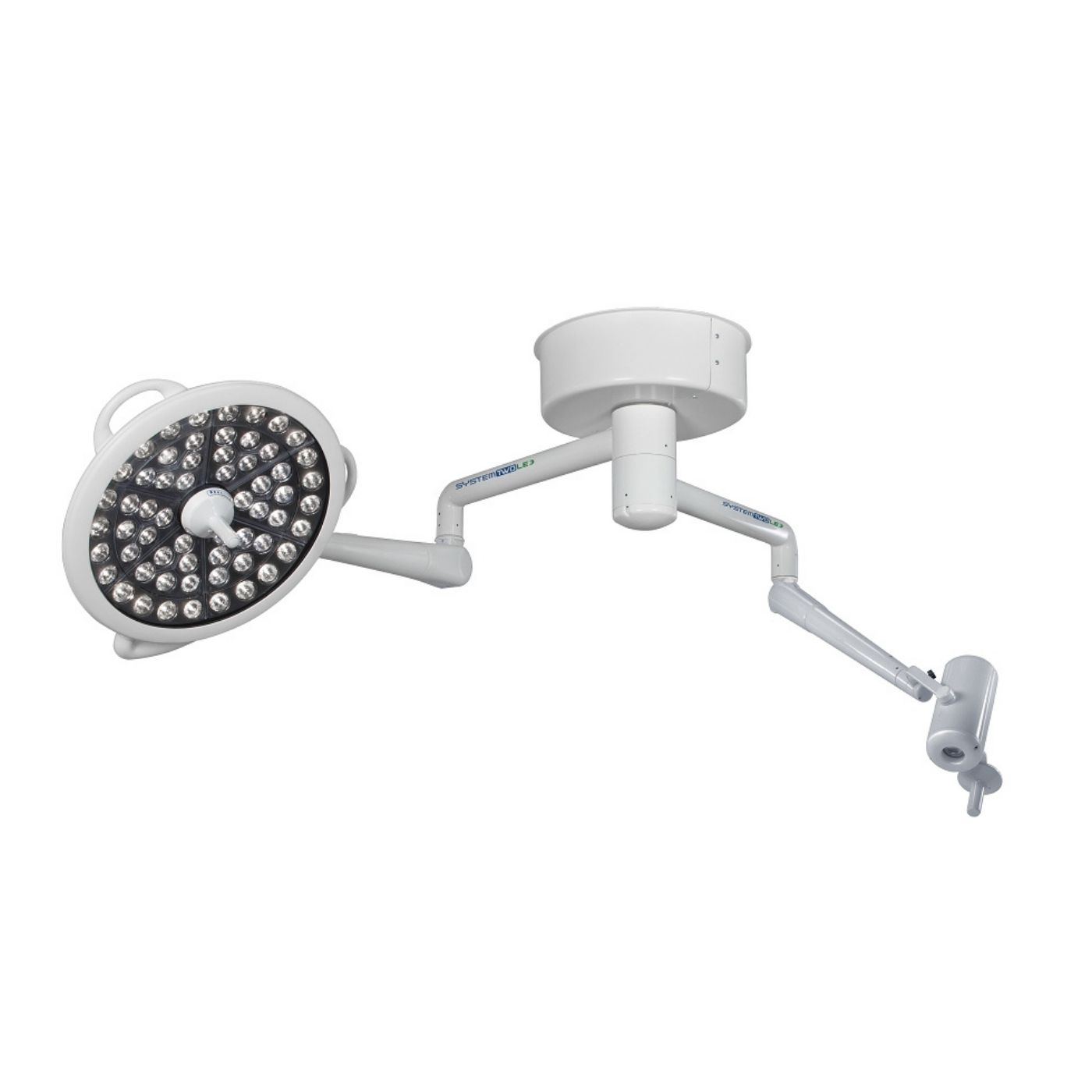

Bovie XLDS-S2VC System Two Light HD Video Arm

The System Two LED series presents an unmatched value to surgery center, specialty practices and outpatient care facilities seeking a surgical lighting system. The energy efficient design consumes half the electricity of its halogen counterpart to offer significant long-term savings for the healthcare facility. The long-life 50,000 hour rated LEDs eliminate procedure room downtime and are output rated at 130,000 Lux with a Kelvin color temperature of 4300 degrees. The System Two LED series is designed with the unique spring arm system which can be adjusted for the life of the product providing optimal surgical site visibility and positioning. This lighting system is available in solo, duo and tri mounting styles; with or with camera and monitors.

Optical Specifications:
Correlated Color Temperature: 4,200 degrees Kelvin  300 K
Irradiance: 128 W/m(1 m)
Color Rendering Index (CRI R1-R8=RA): 95
Color Rendering Index R9: 95
Focal Length: 39.4 inches (1 Meter)
Central Illuminance (Full Intensity): 130,000 /- 5K Lux.
Dimming: 5 Intensity Levels (Indicated by 5 LEDs on 2 indicator strips Located 180 degrees apart): 100%=130,000, 87.5%=113,750, 75%=97,500, 62.5%=81,250, 50%=65,000
Endo Mode (12 LEDs triangulated 120 degrees apart): 8,500 Lux
Light Field Diameter (Adjustable): 9.5 inches – 14 inches (229mm-356mm)
Depth of Illumination: 32.3 inches (820mm)
Diameter (d50): 5.5 inches (127mm-140mm)
Illuminance (One Mask): 74,560 Lux (6,930 fc)
Illuminance (Two Masks): 62,408 Lux (5,800 fc)
Illuminance at Bottom of Standard Tube: 132,300 Lux (12,300 fc)
Illuminance at Bottom of Standard Tube, One Mask: 72,630 Lux (6,750 fc)
Illuminance at Bottom of Standard Tube, Two Masks: 60,256 Lux (5,600 fc)

Electrical Specifications:
Input Voltage: 100-240 VAC 50/60 Hz – Single Phase
LED Life: 50,000 Hours (Average)
Solo Power: 120 Watts
Duo Power: 240 Watts
Trio Power: 360 Watts

Environmental Specifications:
Ambient/Operating Temperature: 41 F to 104 F (5  to 40  Celsius)
Storage Temperature Range: -4 F to 122 F (-20  to 50  Celsius)
Humidity: 10%-90% Relative Humidity
Pressure: 100 kPA (@<2K Meters)

Mechanical Specifications:
Weights:
Solo Ceiling Mount Assembly: Approximately 73.5 lbs (33.3 Kg)
Duo Ceiling Mount Assembly: Approximately 104.5 lbs (47.4 Kg)
Trio Ceiling Mount Assembly: Approximately 155.5 lbs (70.5 Kg)
Light Head Assembly: Approximately 28.1 lbs (12.7 Kg)
(*Note: The weight of the Ceiling Cast assembly is included)

Dimensions:
Ceiling Casting: 17.0  (431.8 mm) Dia. x 4.7  (119.4 mm) Deep
Ceiling Rod: 2.5  (63.5 mm) Dia. x 9.0 -43.0 (228.6 -1092.2 mm) Long (depending on ceiling height)
Arm (Articulated): 4.0  (102 mm) Dia. (tapered) x 26.0  (660 mm) Long
Light Head Assembly: 25.5  (648 mm) Dia. 4.75  (120 mm) Deep

Rotations:
Ceiling Mount/Extension Arm Interface: Continuous
Articulating/Extension Arm Interface: Continuous
Articulating Arm Vertical Movement: 15 Degrees, -65 Degrees
Articulating Arm/Yoke Interface: Continuous
Yoke/Lamp Head Interface: /-165 Degrees (330  Range)

SYSTEM TWO BROCHURE

SYSTEM TWO USER GUIDE

SYSTEM TWO CUTSHEET

SYSTEM TWO PRE-INSTALL

SYSTEM TWO SPECS

SYSTEM TWO SET UP AND USE

AMBULATORY SURGERY CENTER

Made in the USA!

*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.

Broward A & C Medical is an AUTHORIZED BOVIE DEALER.

We offer FREE PLAN REVIEW!

Email your information to [email protected]

SKU 07849 Categories , ,

Additional information

Manufacturer

Bovie

Manufacturer Part Number

XLDS-S2VC

Condition

New
