Brymill MVE LAB 10 Liquid Nitrogen Storage Container

SKU: 16104

Brymill 501-10 MVE LAB 10 Liquid Nitrogen Storage Container

$986.00

Available on backorder

Build Your Custom Hose

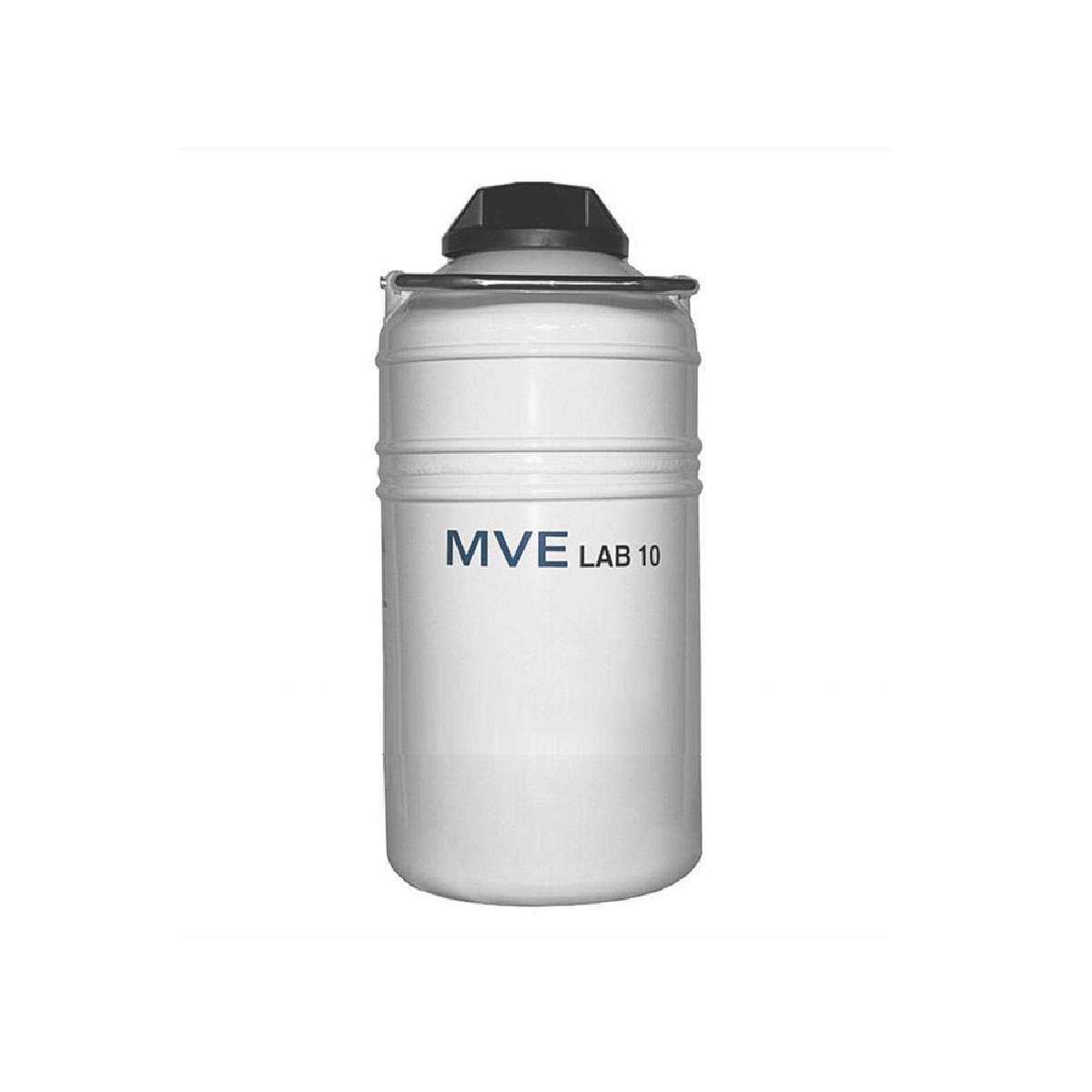

Brymill 501-10 MVE LAB 10 Liquid Nitrogen Storage Container

Brymill MVE LAB 10 Liquid Nitrogen Storage Tank, 10 Liter, BRY501-10 The Chart/MVE LAB Series cryogenic liquid dewars get their name from their acceptance in laboratories and medical facilities worldwide. These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen. Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.NOTE: We are an authorized distributor of Brymill Cryogenic Equipment. We carry the full line of Brymill Cry sprayers, Liquid Nitrogen Storage Tanks, Withdrawal Equipment, Replacement Parts & Accessories. We are located in Deerfield Beach, FL. If you cannot find any Brymill products on our website, please contact us for pricing and availability. Our phone number is 954-725-1470 Ext 403. You can also send us an email to [email protected] or simply click on the “Get a Quote” button on every product detail page. We will reply to your inquiries as quickly as possible…

Features:

  • Designed for large capacity storage
  • Low liquid nitrogen consumption
  • Convenient lightweight package
  • Durable, tamper-proof lid design
  • High strength neck tub reduces liquid nitrogen loss
  • Strong light weight aluminum construction
  • Advanced chemical vacuum retention system
  • Spider design on platform for easy retrieval and insertion of product canisters

Specifications:

MVE LAB 5 MVE LAB 10 MVE LAB 20 MVE LAB 20SC MVE LAB 30 MVE LAB 50
LN2 Capacity 5 Liter 10 Liter 20 Liter 20 Liter 30 Liter 50 Liter
Static Evaporation 0.15lt / day 0.18lt / day 0.18lt / day 0.14lt / day 0.22lt / day 0.49lt / day
Static Hold Time 4-5 Weeks 6-8 Weeks 8-12 Weeks 220 Days 14-16 Weeks 14-17 Weeks
Neck Opening 2.18″ / 56mm 2.18″ / 56mm 2.18″ / 56mm 2.18″ / 56mm 2.50″ / 64mm 2.50″ / 64mm
Usable Height 10.5″ / 266mm 13.5″ / 343mm 13.7″ / 348mm 13.7″ / 348mm 14.9″ / 378mm 22″ / 559mm
Overall Height 18.2″ / 462mm 21.5″ / 546mm 24.5″ / 622mm 24.5″ / 622mm 24″ / 610mm 30.5″ / 775mm
Outer Diameter 8.8″ / 222mm 10.3″ / 260mm 14.5″ / 368mm 14.5″ / 368mm 17″ / 432mm 17″ / 432mm
Internal Diameter 6.5″ / 165mm 8.3″ / 210mm 11.4″ / 289mm 11.4″ / 289mm 14″ / 356mm 14″ / 356mm
Weight (Empty) 8lb / 4kg 12lb / 5.4kg 19lb / 9kg 19lb / 9kg 25lb / 11.4kg 31lb / 14kg
Weight (Full) 17lb / 8kg 31lb / 14kg 55lb / 25kg 55lb / 25kg 82lb / 37.2kg 120lb/54.4kg

*Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of container use, atmospheric conditions, and manufacturing tolerances. The Lab Series is designed for liquid storage and not suitable for specimens.

Packaging Content

  • Selected size MVE Lab Dewar
  • Cover

Warranty / Return Policy

Manufacturer’s Warranty

Additional information

Weight 12 lb
Dimensions 22 × 12 × 12 in
Manufacturer Part Number

501-10

Manufacturer

BRYMILL CRYOGENIC SYSTEMS

Condition

New
