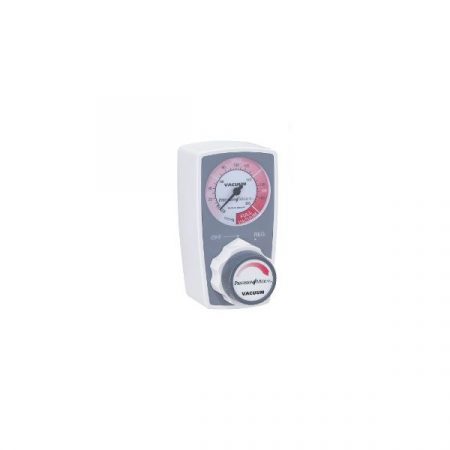

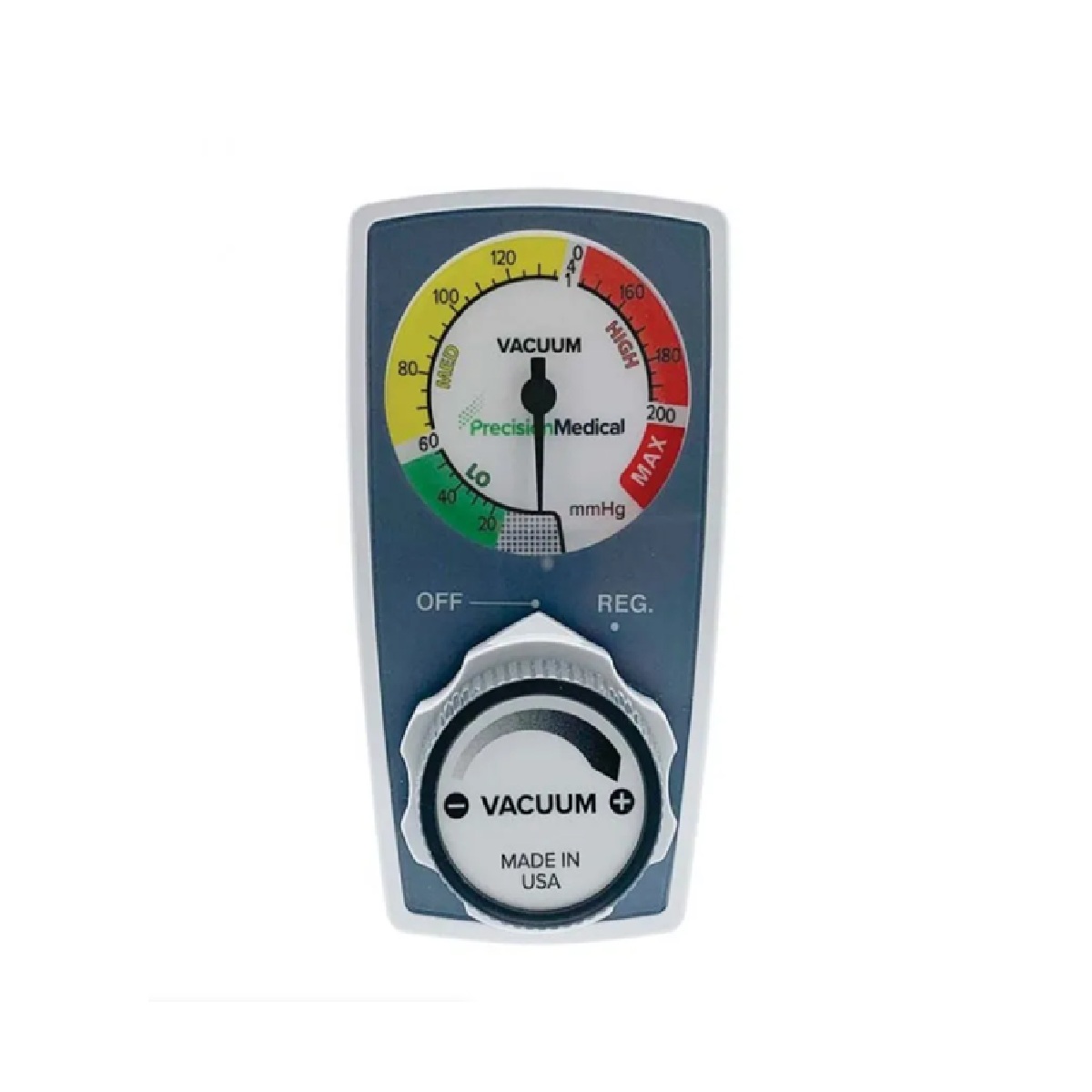

Precision PM3000 Continuous Vacuum Regulator

SKU: 07711

Call for Price

Precision PM3000 Continuous Vacuum Regulator

It’s Field Serviceable
The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of 6 easy-to-replace modular components.

It’s Durable
Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.

It’s Compact
As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.

It’s Sturdy
The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.

It’s User-Friendly
The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.

It’s Safe
The Pediatric vacuum regulator is restricted to 170 mmHg (10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical’s Stork Symbol to identify the unit for pediatric applications.

Length: 3.7 in (9.4 cm)
Width: 2.8 in (7.1 cm)
Height: 5.2 in (13.2 cm)
Weight: 1.1 lbs (.50 kg)
Gauge Range: *Counterclockwise direction
PM3000: 0 – 200 mmHg – Full Vacuum
*PM3000E: 0 – 200 mmHg (0 – 26 kPa)
PM3000HV: 0 – 300 mmHg – Full Vacuum
PM3100: 0 – 200 mmHg – Full Vacuum
*PM3100E: 0 – 200 mmHg (0 – 26 kPa)
*PM3100EHV: 0 – 300 mmHg (0 – 40 kPa)
PM3100HV: 0 – 300 mmHg – Full Vacuum
PM3500: 0 – 150 mmHg
*PM3500E: 0 – 200 mmHg (0 – 26 kPa)
Gauge Accuracy:
Analog:  5% of MAX
Digital Gauge:  1% of Full Scale
Analog Gauge:  5% of MAX within ref. Indicator
Vacuum Ports: 1/8 NPT Female
Modes:
PM3100 Series:
LINE – Provides maximum, continuous vacuum from the vacuum source
OFF – No Vacuum
REG. – (Regulated) provides an adjustable, continuous vacuum level
PM3000 & PM3500 Series:
OFF – No Vacuum
REG. – (regulated) provides an adjustable, continuous vacuum level
Flow: Models Mode Max Flow
*PM3000, PM3100 & PM3500:
REG
LINE
51 L/min
55 L/min
*MAXIMUM FLOW IS OBTAINED WITH A VACUUM SOURCE OF 21″ Hg (71.1 kPa)
MAXIMUM VACUUM:
PM3000 & PM3100: REG. Mode @ Full Vac – 396 mmHg (53 kPa)
PM3500D: Restricted to 170 mmHg (23 kPa)   10 mmHg (1.3 kPa)
PM3500E: Restricted to 160 mmHg (21 kPa)   10 mmHg (1.3 kPa)
Operating Environmental Limits: 0 F to 122 F (-18 C to 50 C)
Recommended Environmental Operating Limits: 55 F to 85 F (13 C to 29 C)
Storage Environmental Limits:
Temperature Range: -4 F to 140 F (-20 C to 60 C)
Humidity: Max 95% Condensing
Battery: 3 Volt Lithium, AA (Digital Vacuum Gauge Models ONLY)
  • MADE IN THE USA

Additional information

Manufacturer

Precision Medical, Inc.

Manufacturer Part Number

PM3000

Condition

New
