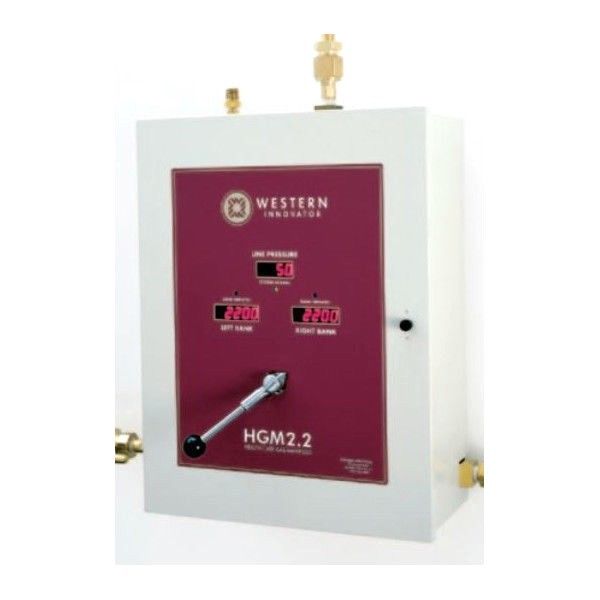

Western HGM2-8-6 Innovator N2O Gas Manifold 6 Cylinders Standard

SKU: 07829

Call for Price

Western HGM2-8-6 Innovator N2O Gas Manifold 6 Cylinders Standard

Western Innovator HGM2 Manifolds are designed and manufactured according to NFPA99 2012 safety and performance requirements. Easy-to-read digital displays indicate the line and individual bank pressures. A green light means the service bank is functioning and the reserve bank is ready for service. A red light alerts the user that one or both banks are depleted. A simple rotation of the control lever resets the unit.



  • NFPA Compliant, Automatic Digital System
  • CSA Approved Power Supply included
  • Maximum inlet pressure: 3000 psig (2000 for CO2 and N2O systems)
  • Maximum Flow Rate: HGM2 1200 scfh (CO2 and N2O 35 scfh)
  • Internal Adjustable Dual Line Regulators: HGM2 30-55 psig
  • Manifold outlet: 1/2″ NPT Male
  • Relief Valve outlet: 1/2″ NPT Male
  • 1/2″ Brass, silver brazed headers
  • Oxygen pigtails: NFPA 99 compliant, rigid copper with check valves
  • Other gas pigtails: NFPA 99 compliant, 24″ flexible stainless steel with check valves
  • Digital readout can display psig, kPa or Bar
  • Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)

Click Here for HGM2 Info Sheet

Click Here for Western HGM2 Operating Manual

Click Here for HGM2 Service Manual

We offer FREE PLAN REVIEW!

Email your information to [email protected]











SKU 07829 Categories ,

Additional information

Manufacturer

Western

Manufacturer Part Number

HGM2-8-6

Condition

New
