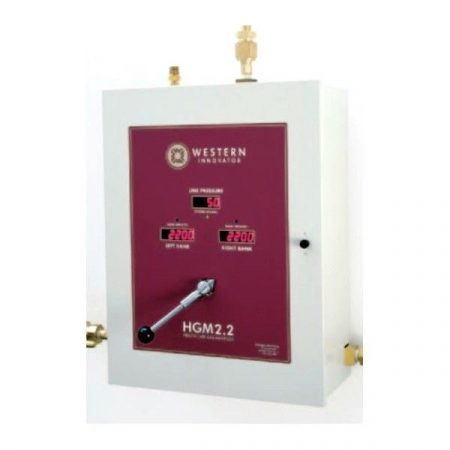

Western FHM2-9-4 Innovator O2 Gas Manifold 4 Cylinders Standard

SKU: 07819

  • NFPA Compliant, Fully Automatic Digital System
  • CSA Approved Power Supply included
  • Maximum inlet pressure: 3000 psig (2000 for CO2 and N2O systems)
  • Maximum Flow Rate: FHM2 2000 scfh (CO2 and N2O 35 scfh)
  • Internal Adjustable Dual Line Regulators: FHM2 30-70 psig
  • Manifold outlet: 1/2″ NPT Male
  • Relief Valve outlet: 1/2″ NPT Male
  • 1/2″ Brass, silver brazed headers
  • Oxygen pigtails: NFPA 99 compliant, rigid copper with check valves
  • Other gas pigtails: NFPA 99 compliant, 24″ flexible stainless steel with check valves
  • Digital readout can display psig, kPa or Bar
  • Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)

Special Order

Western FHM2-9-4 Innovator O2 Gas Manifold 4 Cylinders Standard

Western Innovator FHM2 Healthcare Gas Manifolds provide fully automatic system control. An integrated circuit board monitors cylinder bank pressure electronically, controlling changeover and eliminating the need to manually reset levers or valves. FHM2 Healthcare Manifolds meet NFPA99 2012 safety and performance requirements.

Easy-to-read digital displays show the line and individual bank pressures. A series of lights for each bank indicates whether the bank is in service, ready for use, or bank depleted.



  • NFPA Compliant, Fully Automatic Digital System
  • CSA Approved Power Supply included
  • Maximum inlet pressure: 3000 psig (2000 for CO2 and N2O systems)
  • Maximum Flow Rate: FHM2 2000 scfh (CO2 and N2O 35 scfh)
  • Internal Adjustable Dual Line Regulators: FHM2 30-70 psig
  • Manifold outlet: 1/2″ NPT Male
  • Relief Valve outlet: 1/2″ NPT Male
  • 1/2″ Brass, silver brazed headers
  • Oxygen pigtails: NFPA 99 compliant, rigid copper with check valves
  • Other gas pigtails: NFPA 99 compliant, 24″ flexible stainless steel with check valves
  • Digital readout can display psig, kPa or Bar
  • Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)

Click Here for FHM2 Specs

Click Here for FHM2 Service Manual

We offer FREE PLAN REVIEW!

Email your information to [email protected]









Additional information

Weight 55 lb
Dimensions 6 × 16 × 21 in
Manufacturer

Western

Manufacturer Part Number

FHM2-9-4

Condition

New
