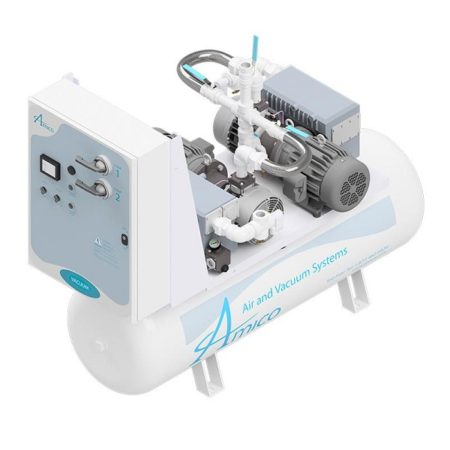

NFPA Duplex RVL Horizontal Tank Mount

Lubricated Rotary Vane Vacuum Pump

Call for Price

Build Your Custom Hose

Specifications

Control Panel

Control Panel

  • UL listed control panel in a NEMA 12 enclosure with a 5.7″ Touch Screen Display
  • Manual reset for all alarms
  • All control and alarm functions shall remain energized while any pump in the system remains electrically online
  • Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters
  • Lag pump will start automatically should the lead pump fail to operate
Vacuum Pump

Vacuum Pump

  • Oil-Sealed Rotary Vane type with air cooled design
  • Dynamically balanced multi-vane design
  • Bearings are permanently lubricated and sealed
  • Pump shall be direct driven
  • Equipped with a built-in anti-suck back valve mounted at the pump inlet
  • Means of removal of the vacuum pump for service or replacement without interruption to the system
Air Receiver

Air Receiver

  • ASME certified with provisions for isolating the receiver without interruption of the vacuum service
  • Rated for full vacuum service with a minimum 200 psig design pressure
  • Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

Features

General Features
  • Oil-Sealed Rotary Vane vacuum pump with air cooled design
  • UL listed control panel in a NEMA 12 enclosure with a 5.7″ Touch Screen Display
  • Ethernet connectivity with embedded web-page for remote monitoring, password protected for remote adjustment of all operating parameters
  • Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
Vacuum System Accessories
  • Non-return valve
  • Back pressure gauge
  • High discharge temperature sensor (with visual indicator)
  • Oil drain valve
  • Oil sight glass
  • Flexible connector
  • Isolation valve
  • Check valve
Design Options
  • Please click the pink “manuals” icon above to download our NFPA design guide for air compressors.
  • Please click the purple “ordering guide” icon above to download our sizing guide for Source equipment.
