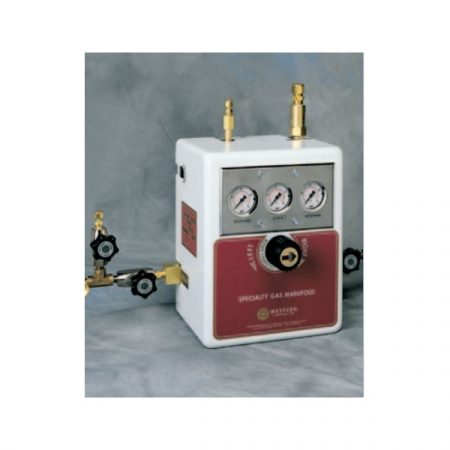

Western LAB1-5 Innovator Helium Analog Gas Manifold

Western LAB1-5 Innovator Helium Analog Gas Manifold

Western Innovator LAB Series manifolds are designed to regulate and deliver an uninterrupted supply of gas for High Purity applications. The LAB Series are designed with features providing automatic changeover from a single Primary gas cylinder to a single Reserve gas cylinder, without the loss of delivery pressure. A simple rotation of the control knob resets the unit.

• High Purity Automatic Analog System
• Stainless Steel Diaphragm Regulators
• Packless Diaphragm Regulators
• Maximum Inlet Pressure: 3000 psig (2000 psig for CO2 and N2O systems)
• Maximum Flow Rate: Most gases 250 scfh, CO2-35 scfh, N2O-35 scfh
• Delivery Pressure Range: LAB1 30-100 psig
• Manifold Outlet: 1/4″ OD Tube
• Relief Valve Outlet: 1/2″ OD Tube
• Rigid copper pigtails with check valves
• HPF Flexible pigtails optional
• Vent valves included with LAB1 models only
• 1×1 system only
