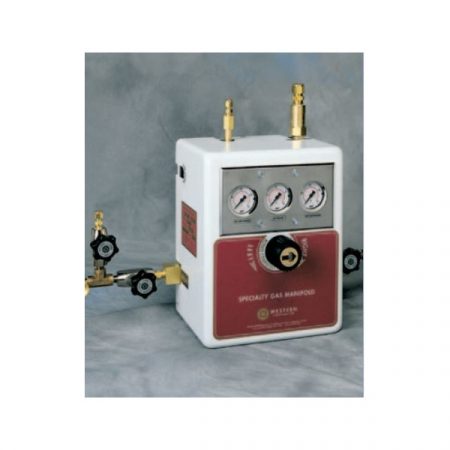

Western LAB1-3 Innovator Argon Analog Gas Manifold

SKU: 07837

  • High Purity Automatic Analog System
  • Stainless Steel Diaphragm Regulators
  • Packless Diaphragm Regulators
  • Maximum Inlet Pressure: 3000 psig (2000 psig for CO2 and N2O systems)
  • Maximum Flow Rate: Most gases 250 scfh, CO2-35 scfh, N2O-35 scfh
  • Delivery Pressure Range: LAB1 30-100 psig
  • Manifold Outlet: 1/4″ OD Tube
  • Relief Valve Outlet: 1/2″ OD Tube
  • Rigid copper pigtails with check valves
  • HPF Flexible pigtails optional
  • Vent valves included with LAB1 models only
  • 1×1 system only

Call for Price

Western LAB1-3 Innovator Argon Analog Gas Manifold

Western Innovator LAB Series manifolds are designed to regulate and deliver an uninterrupted supply of gas for High Purity applications. The LAB Series are designed with features providing automatic changeover from a single Primary gas cylinder to a single Reserve gas cylinder, without the loss of delivery pressure. A simple rotation of the control knob resets the unit.



  • High Purity Automatic Analog System
  • Stainless Steel Diaphragm Regulators
  • Packless Diaphragm Regulators
  • Maximum Inlet Pressure: 3000 psig (2000 psig for CO2 and N2O systems)
  • Maximum Flow Rate: Most gases 250 scfh, CO2-35 scfh, N2O-35 scfh
  • Delivery Pressure Range: LAB1 30-100 psig
  • Manifold Outlet: 1/4″ OD Tube
  • Relief Valve Outlet: 1/2″ OD Tube
  • Rigid copper pigtails with check valves
  • HPF Flexible pigtails optional
  • Vent valves included with LAB1 models only
  • 1×1 system only



We offer FREE PLAN REVIEW!

Email your information to [email protected]







Additional information

Weight 55 lb
Dimensions 6 × 16 × 21 in
Manufacturer

Western

Manufacturer Part Number

LAB1-3

Condition

New
