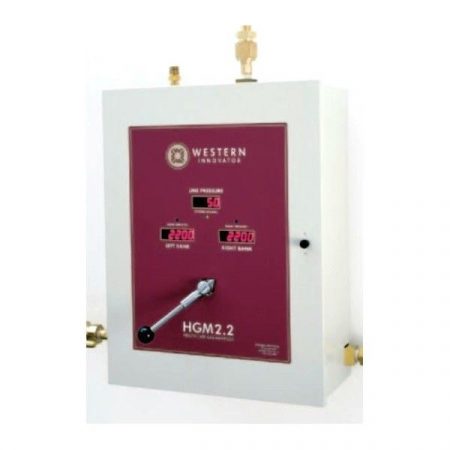

Western HGM2-8-4 Innovator N2O Gas Manifold 4 Cylinders Standard

Western HGM2-8-4 Innovator N2O Gas Manifold 4 Cylinders Standard

Western Innovator HGM2 Manifolds are designed and manufactured according to NFPA99 2012 safety and performance requirements. Easy-to-read digital displays indicate the line and individual bank pressures. A green light means the service bank is functioning and the reserve bank is ready for service. A red light alerts the user that one or both banks are depleted. A simple rotation of the control lever resets the unit.

• NFPA Compliant, Automatic Digital System
• CSA Approved Power Supply included
• Maximum inlet pressure: 3000 psig (2000 for CO2 and N2O systems)
• Maximum Flow Rate: HGM2 1200 scfh (CO2 and N2O 35 scfh)
• Internal Adjustable Dual Line Regulators: HGM2 30-55 psig
• Manifold outlet: 1/2″ NPT Male
• Relief Valve outlet: 1/2″ NPT Male
• 1/2″ Brass, silver brazed headers
• Oxygen pigtails: NFPA 99 compliant, rigid copper with check valves
• Other gas pigtails: NFPA 99 compliant, 24″ flexible stainless steel with check valves
• Digital readout can display psig, kPa or Bar
• Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)

Click Here for HGM2 Info Sheet

Click Here for Western HGM2 Operating Manual

Click Here for HGM2 Service Manual
